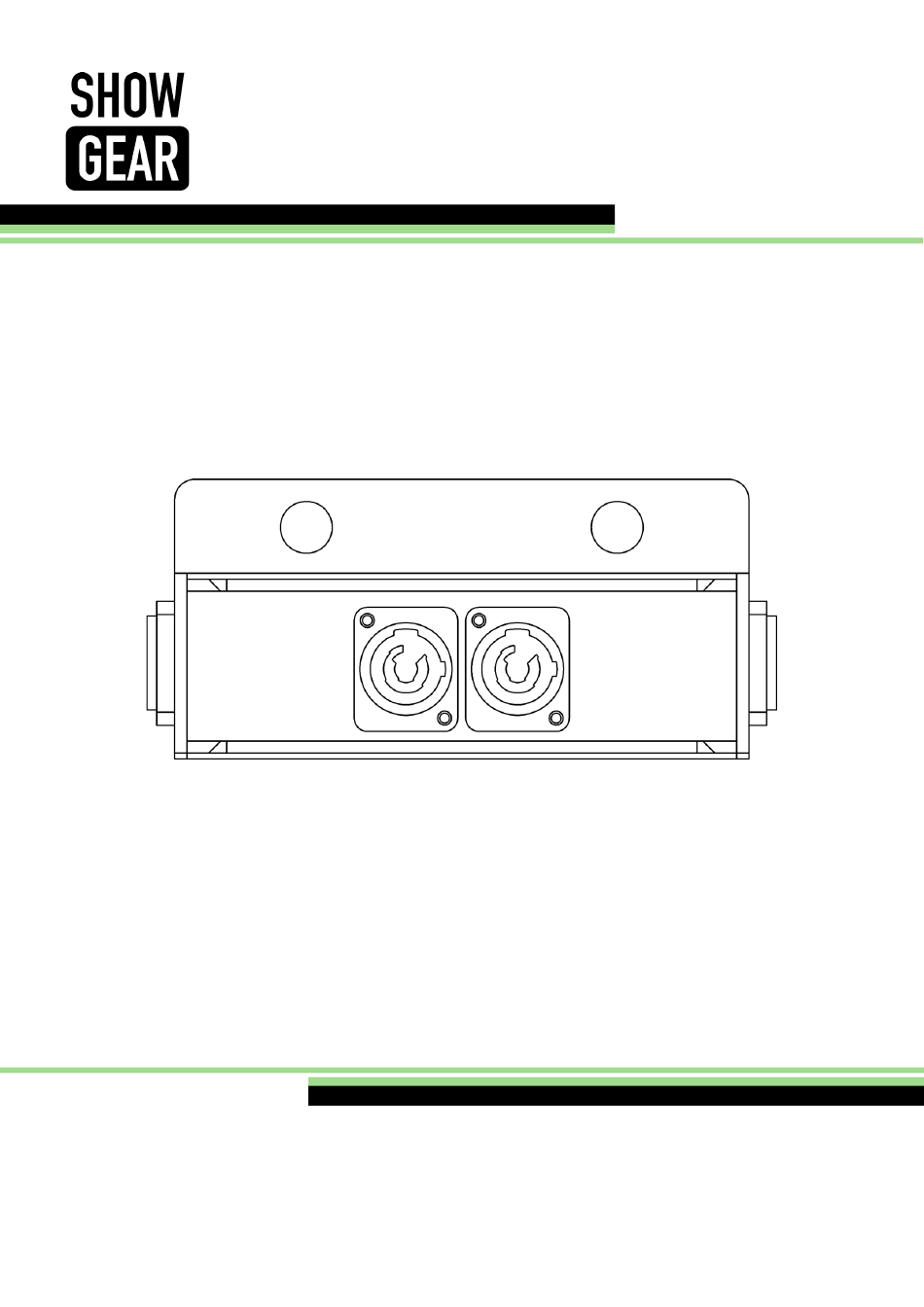

- Page 1 USER MANUAL ENGLISH Powerport 3 Product code: 50275 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 Powerport 3 Preface Thank you for purchasing this Showgear product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
Powerport 3 Table of contents Introduction ................................3 Before Using the Product ..........................3 Intended Use ............................... 3 Text Conventions ..............................3 Symbols and Signal Words ..........................4 Symbols on the Information Label ........................4 Safety ..................................5 Warnings and Safety Instructions ........................5 Requirements for the User .......................... -
Page 4: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: Showgear Powerport 3 User manual Fig. 01 Intended Use This device is intended for professional use as a power distribution unit. It is suitable only for indoor use. This device is not suitable for households. -
Page 5: Symbols And Signal Words
Powerport 3 Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in DANGER death or serious injury. -
Page 6: Safety
Powerport 3 Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Warnings and Safety Instructions... - Page 7 Powerport 3 Attention Power supply ● Before connecting the device to the power supply, make sure that the current, voltage and frequency match the input voltage, current and frequency specified on the information label on the device. ● Make sure that the cross-sectional area of the extension cords and power cables is sufficient for the required power consumption of the device.
-
Page 8: Requirements For The User
Description of the Device The Powerport 3 is a compact power distribution unit. The device is equipped with a Neutrik powerCON input and 3 Neutrik powerCON outputs. The maximum allowed current load is 16 A, divided over 3 outputs. -
Page 9: Product Specifications
Powerport 3 Product Specifications Model: Powerport 3 Electrical: Input voltage 240 V AC, 50 Hz, max. 16 A Rated current: 16 A (divided over 3 outputs) Conductors: Pins: Connections: Power connector IN: Neutrik powerCON connector IN (Blue) Power connector OUT: 3 x Neutrik powerCON connector OUT (Gray) Power cable min. -
Page 10: Setup And Operation
Powerport 3 Setup and Operation Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. Installation must be carried out only by instructed or skilled persons. Follow all applicable European, national and local safety regulations concerning electrical installations. -
Page 11: Connecting To Power Supply
Powerport 3 Connecting to Power Supply DANGER Electric shock caused by short-circuit The device accepts AC mains power at 240 V and 50 Hz. Do not supply power at any other voltage or frequency to the device. This device falls under IEC protection class I. Make sure that the device is always electrically connected to the ground (earth). -
Page 12: Troubleshooting
Powerport 3 Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. -
Page 13: Basic Cleaning Instructions
Powerport 3 Basic Cleaning Instructions To clean the device, follow the steps below: Disconnect the device from the electrical power supply. Allow the device to cool down for 5 minutes. 03) Clean the device with a soft, lint-free cloth. Attention ●... - Page 14 Powerport 3 Product code: 50275...
- Page 15 Powerport 3 Product code: 50275...
- Page 16 ©2022 Showgear...
