- Page 1 KAA-8R/KAA-8R-S Universal Actuator Instruction manual...
-
Page 2: Table Of Contents
Content ....................... 1.Overview ....................1.1 Overview devices ................. 1.2 Usage & possible applications ..................1.3 Exemplary Circuit diagrams ..................1.3.1 Switching actuator ....................1.3.2 Mixed mode ..................... 1.4 Structure & Handling ......................... 1.5 W iring ......................1.6 Functions ............1.6.1 Overview at general setting and functions .. - Page 3 Content ....................6.Blinds, Shutter ........................ 6.1 Blinds ....................... 6.2 Shutter ....................6.3 Time for movement ..............6.3.1 Measure of the times for Movement ....................6.3.2 Movement time ................6.3.3 Step time for slats adjustment ..................6.3.4 Slat adjustment time ................... 6.3.5 Pause on reverse ..............
-
Page 4: Overview
◎ 4 Channels for shutter motors up to 600W, Manual control or 8 Channels for switching outputs for ohmic loads up to 2300W. ◎ Any supposable mixed form of switching outputs and shutter output possible. ◎ Build-in with KNX secure function(Only for KAA-8R-10S). ‧KAA-8R/KAA-8R-S Universal Actuator 8-fold, 230V AC, 16A. -
Page 5: Mixed Mode

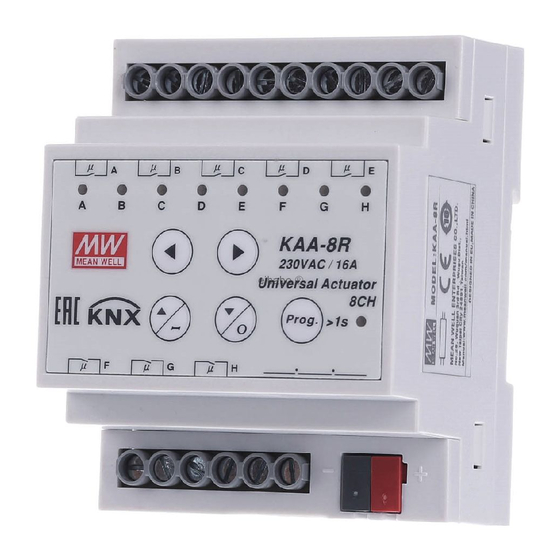

Buttons to choose the channel for the manual control Manual control for moving up and down Programming-LED Programming-button μ μ μ Bus connection Illustration 5: Overview hardware module (KAA-8R) -
Page 6: W Iring
1.5 W iring ‧Use wires with an adequate cross-section. ‧Use suitable mounting tools to do the wiring and mounting. • The maximum number of bus devices connected is 256. ‧The maximum length of a line segment is 350 m, measured along the line between the power supply and the furthest bus device. ‧... -
Page 7: Overview Functions At The Switch/Staircase Mode/Switch Impulse/Heating Control With Pwm
1.6.2 Overview functions at the switch/staircase mode/switch impulse/heating control with PWM Group of functions Functions number of objects/connections=dynamic Group addresses (freely assignable of the user) behavior at bus power breakdown Reset behavior behavior at bus power up startup timeout Relay mode normally closed/ normally opened switching Switch functions... -
Page 8: Settings At The Ets-Software
Manufacturer: MEANWELL Enterprises Co. Ltd Product family: Output Product type: Universal actuator Product name: addicted to the used type, e.g.: KAA-8R universal actuator 8-fold, 16A Order number: addicted to the used type, e.g.: KAA-8R 1.8 Starting up After wiring, the allocation of the physical address and the parameterization of every channel follow: (1) Connect the interface with the bus, e.g. -
Page 9: Knx Data Secure
KNX Data Secure devices are protected against unauthorized access. In the ETS Catalog, the KNX Secure products can be clearly recognized by the Secure icon: KAA-8R-10S Universal Actuator, 8-fold, 10A, MDRC KAA-8R-S Universal Actuator, 8-fold, 16A, MDRC As soon as a "KNX-Secure" device is included in the project, the ETS requests a project password. If no password is entered, the device is without activation of secure mode. -
Page 10: Start-Up Without Knx Data Secure
To start up the device without KNX Data Secure, select the device in the 'Topology' or 'Devices' section and then set the 'Secure start up' option in the 'Properties' area of the 'Settings' tab to 'Disabled'. 2.3 Products That Support KNX Data Secure ‧KAA-8R-S ‧KAA-8R-10S 3.Communication Objects 3.1 Global communication objects... -
Page 11: Default Settings Of The Central Communication Objects
3.2 Default settings of the central communication objects The following chart shows the default settings of the global communication objects: Default settings Object Function Length Priority Manual Control 1 Bit Switch On/Off 1 Bit Operation 1 Bit Shutter up/down 1 Bit Slats adjustment/ stop 1 Bit Stop... -
Page 12: Reference Ets-Parameter - Switch For Different Application
Default settings Name Object Function Length Priority Channel A Staircase light 1 Bit Channel A Staircase light with time 1 Byte Channel A Prewarning 1 Bit Channel A Switch impulse 1 Bit Channel A State Emergency Mode 1 Bit Channel A Control Value 1 Byte next pair of channels... -
Page 13: Channel Selection
Parameter Dynamic range Description [Default value] After the device is powered on, the delay of relay closed/separated. The manual operation allows the relay to be normally controlled during the delay Startup Timeout 2 ~ 60s [2s] wait. If there is Object Communication, it will be recorded first and will not re- spond. -
Page 14: Switch, Staircase
5.Switch, Staircase The following parameters, which are described at the headings 5.3.x, are only available at channels selected as switch. 5.1 Overview By choosing a channel as switch, a sub menu, called Channel A Switching, appears for this channel at the left drop down menu. The sub menu is shown at the following illustration: Illustration 28: Switching output... - Page 15 The chart shows the possible settings for switching outputs: ETS-text Dynamic range comment [default value] Operation mode of the channel ‧ normally opened Output mode ‧ normally closed Switch on delay of the channel in seconds 0..30000 sec On-Delay [0=no delay] Switch off delay of the channel in seconds 0..30000 sec Off-Delay...
-
Page 16: On/Off Delay
ETS-text comment Dynamic range [default value] Behavior at unlocking ‧ Off Action for deactivating the unlocking process ‧ ‧ no change ‧ previous state, catch up on switching ‧ previous state Priority control ‧ not active Priority/Forced control Not active: not active ‧... -
Page 17: Logic Function
The on-delay causes a delayed switch of the channel. At sending an on-signal to the channel, first the adjusted on delay time expires and afterwards the channel will be switched on. The off delay works on the same principle. At sending an off-signal, first the adjusted off delay time expires and afterwards the channel will be switched off. - Page 18 The chart shows the possible settings for Logic function: ETS-text Dynamic range Comment [default value] ： With Switch object and one Logic object The calculated result of the switch object and logic1 object as the executing value of the output channel. ‧...
-
Page 19: Scene Function
The following chart shows the relevant communication objects: Number Name Length Usage Logic 1 1 Bit Logic object 1, is the first input for the logic block Logic 2 1 Bit Logic object 2, is the second input for the logic block Chart 39: Communication objects logic According to the chosen logic operation only one or both objects have to become a 1-signal. - Page 20 These 8 storage options can get any of the possible 64 scene numbers. Illustration 32: Sub function scene The chart shows the possible settings for scenes, which are identical for all channels. The settings are available at the sub menu for the scenes: ETS-text Dynamic range...
-
Page 21: Threshold Switch
ETS-text Dynamic range Comment [default value] ‧ not active Whether to enable the setting of scene H. Scene H ‧ active Supports up to 8 scene settings at every channel. ‧ Scene number : 1-64 ‧ Behavior of scene : off / on / lock / unlock 5.5 Threshold switch The following illustration shows the setting options at the ETS-Software:... -
Page 22: Operation Hours Counter Function
ETS-text Dynamic range Comment [default value] Threshold setting: five threshold ranges correspond to the Upper threshold> : above five threshold types ‧ 0-100% Threshold comparison: compare to the value sent by the ‧ 0-255 "Threshold switch" Object. ‧ 0-65500 If the value sent by the "Threshold switch" Object is less than ‧... -
Page 23: Staircase Light
ETS-text Dynamic range Comment [default value] ‧ 4Byte value in s(DPT13.100) Set the data type of the uploaded telegram ‧ Select data type 2Byte value in h(DPT7.007) Send status of operation hours every Upload "operation hours counter" counting value regularly in operation hours counter "hours"... - Page 24 The chart shows all possible settings for staircase outputs: ETS-text Dynamic range Comment [default value] ‧normally open Output mode Operation mode of the channel ‧normally closed ‧not active Additional switching The Switch Object can controls the On/Off of the Channel and has no stair- object ‧active case time limit.
- Page 25 ETS-text Dynamic range Comment [default value] Set whether to send the telegram of "Status" ‧ no send no send： ‧ at change at change：Sent when the current output status changes Send state ‧ at change and lock at change and lock：Sent when the current state changes or during lock ‧...
-
Page 26: Staircase Time
ETS-text Dynamic range Comment [default value] bus power up, the actuator will execute the corresponding action type on the relay output channel Off：Output channel is set to OFF state start time of staircase light： Start stair light output ‧ Behavior after state before bus power down：Restore the state before power down. -
Page 27: Scenes (Staircase Light)
5.7.3 Scenes (Staircase Light) ETS-text Dynamic range Comment [default value] active：The Learn scene function is not enabled ‧ not active Object Value corresponds to DPT17.001 scene number. ‧ Learn scene active active： Enable the Learn scene feature. Object Value corresponds to DPT 18.001 scene control. ‧... -
Page 28: Heating Control With Pwm
There are some functions to adjust the Switch impulse function. These functions are described at the following segments. ETS-text Dynamic range Comment [default value] Normally open：relay contact is normally open. Impulse is relay con- ‧normally open tact closure Output mode ‧normally closed Normally closed ：relay contact is normally closed. -
Page 29: Blinds, Shutter
There are several functions to adjust the Heating Control with PWM function. These functions are described at the following segments. ETS-text Dynamic range Comment [default value] ‧ not energized closed not energized closed：corresponding to Output On for relay contact Valve type ‧... -
Page 30: Shutter
6.2 Shutter There are also a wide range of opportunities to parameterize the channel at shutter function. The shutter function and the blind function are almost identical, but there are no options to parameterize or move the slats at the blind function. As soon as the channel is selected as shutter appears standardly three communications objects. -
Page 31: Measure Of The Times For Movement
In the following chart, you can see the setting range for the movement times: ETS-text Dynamic range comment [default value] ‧same Time for movement Up/Down Adjustment, whether up and down movement should be ‧different different or not 5-1000sec Movement time Sets the duration for an up/down movement [45sec] Time for up movement... -
Page 32: Step Time For Slats Adjustment
6.3.3 Step time for slats adjustment →only at blinds You can adjust in which steps the slats shall be shifted with the setting “step time for slats”. The opening angle can adjust thereby in small steps to prevent e.g. a glare of the sun after a changing of the solar altitude or tighten sunblind. Additional, it is possible to adjust the step range in a way so that the slats drive from one final position to the other in a specific number of steps. -
Page 33: Position Objects
6.4 Position Objects The following illustration shows the setting options at the ETS-Software: The following table shows the possible settings for the position objects: ETS-text Dynamic range comment [default value] 1、When it's active, object "Start driving to Reference" appears. ‧not active Object for reference drive 2、It's used to move the blinds/shutter to the reference position, which means the highest or lowest point. - Page 34 Position of slats 0%-100% Only at Blinds. It's used to set the target position of slats. Default：100% Shutter position 0%-100% Only at Shutter. It's used to set the target position of Shutter. Default：50% If other commands aren't executed after “Action at Value=1” ‧no active is executed, it will perform the action set by ‧move up...
-
Page 35: Status Objects
6.5 Status objects The following figure shows the possible settings for the status objects: The following table shows the possible settings for the status objects: ETS-text Dynamic range comment [default value] ‧not active Status current position Activates/deactivates the objects for absolute position/ ‧active absolute position of slats Object for movement status... -
Page 36: Movement Status/Current Direction
6.5.3 Movement Status/Current direction The object "status of movement" can be selected as one or two objects. As one object, it reports a momentary movement with a "1". In the case of two objects it reports an active up- and an active down movement via two separate objects. The 1-bit object "Status of the current direction"... -
Page 37: Scene Function
6.6 Scene function The same as switch functions, blinds and shutter also has scene function for use. By calling a scene, you can set the blinds or shutter at positions you desired. The following chart shows the relevant communication object: Number Name Length... - Page 38 Shutter:...
-
Page 39: Automatic Function
The chart shows the possible settings for scenes and the settings are available at the sub menu for blinds or shutter. ETS-text Dynamic range comment [default value] ‧not active Learn scene not active: The learn scene function is not enabled. ‧active Object value corresponds to DPT17.001 scene number. - Page 40 If the automatic function for a channel is activated, a new sub-point (channel X: automatic) appears in the left selection menu for the automatic function, in which the further settings can be made. The automatic function can still be executed even when the window is open or tilted.
-
Page 41: Air Function
In the following chart, you can see the setting range for the positions ETS-text Dynamic range comment [default value] ‧ Block Ⅰ Used automatic objects Select which automatic block this channel should react ‧Block Ⅱ Automatic position 1 ‧not active Active or not active the position ‧active Height position... - Page 42 Shutter: ETS-text Dynamic range comment [default value] ‧1 contact for “open” window Window contacts Select whether one or two window contacts are installed ‧2 contacts for “open/titled” window 1 contact for “open” window is selected ‧Value 0 Set condition for “open” Select which signal “0”...
- Page 43 ETS-text Dynamic range comment [default value] 2 contacts for “open/titled” window is selected ‧Contact1=“0”/contact2=”0” Set condition for “open” Select which signal to activate the function ‧Contact1=“1” /contact2=”0” ‧Contact1=“0”/contact2=”1“ ‧Contact1=“1“/contact2=”1” ‧Contact1=“0”/contact2=”0” Set condition for “tilted Select which signal to activate the function ‧Contact1=“1”...
-
Page 44: Alarm And Block Functions
6.9 Alarm and block functions The menu for the alarm and block functions is permanently displayed and contains the settings for the alarms and the normal blocking function: Blinds: Shutter: 6.9.1 Alarm Order (Priority) The parameter "Alarm order" describes the priority of the individual alarms. The following table shows the possible settings for this parameter: Dynamic range ETS-text... -
Page 45: Alarm Types
6.9.2 Alarm types Three different alarm types (wind alarm, rain alarm, frost alarm) can be activated, for which further settings can then be made. The following table shows the setting ranges for the three types of alarms: ETS-text Dynamic range comment [default value] ‧not active... -
Page 46: Periodical Observation
If an alarm is activated, the relevant communication object is displayed for this alarm. If the corresponding communication object receives a "1" signal, the alarm function is activated. A "0" signal deactivates the alarm. The following table shows the related communication objects: Number Function Length... -
Page 47: Height Position
6.9.5 Height position For each alarm/block, an absolute height position can be set, which is approached by the setting "move to height position": The following table shows the setting ranges for the three types of alarms: ETS-text Dynamic range comment [default value] Height position for alarms/blocking 0% –... - Page 48 ETS-text Dynamic range comment [default value] ‧not active Object “Block functions” Activates the communication object and the settings for ‧active the universal blocking function Block manual operation When activated, the manual operation is blocked ‧not active ‧active Block Up/Down movement When activated, the Up/Down movement is blocked ‧not active ‧active...
- Page 49 The parameter "Block absolute position " allows to block the absolute position commands at each channel as well as central. If the corresponding communication object "Block absolute position" is activated by sending a "1", the channel no longer reacts to absolute position commands.
- Page 50 N o . 2 8 , W u q u a n 3 r d R d . , W u g u D i s t . , N e w Ta i p e i C i t y 2 4 8 , Ta i w a n...
