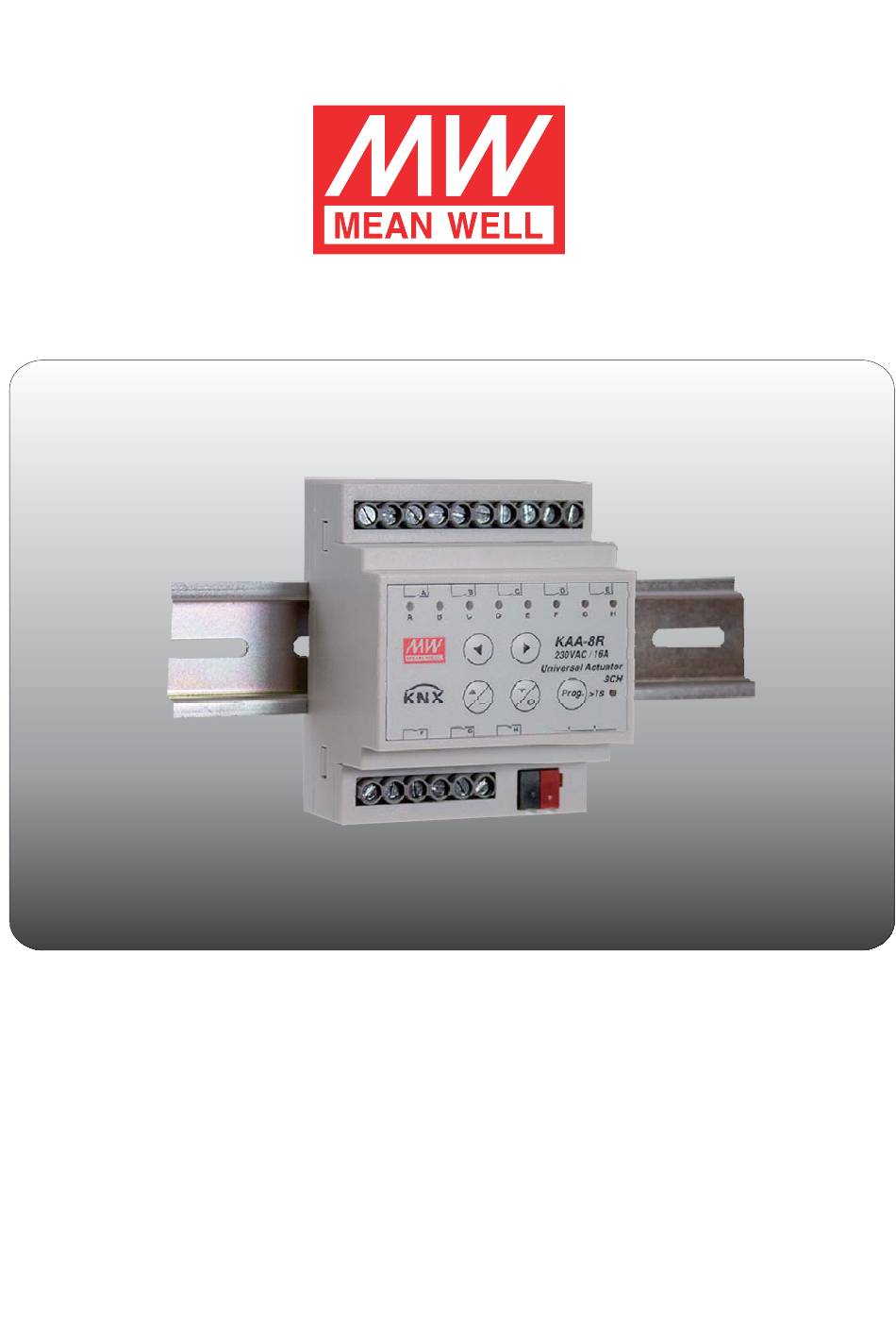

- Page 1 KAA-8R Universal Actuator Instruction manual...
-
Page 2: Table Of Contents
Content ....................... 1.Overview ....................1.1 Overview devices ................. 1.2 Usage & possible applications ..................1.3 Exemplary Circuit diagrams ..................1.3.1 Switching actuator ....................1.3.2 Mixed mode ..................... 1.4 Structure & Handling ......................1.5 Functions ............1.5.1 Overview at general setting and functions .... -
Page 3: Overview
KAA-8R Universal Actuator Instruction manual 1.Overview 1.1 Overview devices The manual refers to the following devices: (Order Code respectively printed in bold type): KAA-8R-10 Universal Actuator 8-fold, 230V AC, 10A. ◎ 4 Channels for shutter motors up to 600W, Manual control or 8 Channels for switching outputs for ohmic loads up to 2300W. ◎... -
Page 4: Mixed Mode
1.3.2 Mixed mode Also arbitrary mixed modes are possible, e.g. in the following way: Illustration 4: Exemplary circuit diagram as switching and shutter actuator 1.4 Structure & Handling The universal actuator (KAA-8) contains of a programming button as well as a programming-LED, which shows a activated programming button. -
Page 5: Functions
1.5 Functions The functionality is the same for all channels. Depending on the hardware module the device contains of up to eight channels. At the first step, every channel can be selected as not active, Switch/Staircase/switch impulse, heating control with PWM not active The channel becomes no more functions allocated. -
Page 6: Settings At The Ets-Software
Group of functions Functions scene function for up to 8 scenes per channel Scenes feedback function State functions Impulse time Switch impulse functions locking function PWM function Heating control with PWM Emergency mode Chart 2: Overview functions for switch, staircase mode 1.6 Settings at the ETS-Software Selection at the product database: Manufacturer: MEANWELL Enterprises Co. -
Page 7: Communication Objects
2.Communication Objects 2.1 Global communication objects The central communication objects are standardly shown. They contain as well the communication objects, which are only valid for corresponding functions. 2.2 Default settings of the central communication objects The following chart shows the default settings of the global communication objects: Default settings Object Function Length... -
Page 8: Reference Ets-Parameter - Switch For Different Application
Default settings Name Object Function Length Priority Channel A Staircase ight 1 it Channel A Staircase ight th time 1 yte Channel A Prewarning 1 it Channel A Switch impulse 1 it Channel A State Emergency Mode 1 it Channel A Control alue 1 yte next pair of channels... -
Page 9: Channel Selection
3.2 Channel selection To operate the universal actuator as switching actuator, at first the each channel, e.g. Channel A, must be selected as “switching”, “staircase light”,” Switch impulse”...etc. At the next step, for each channel can be selected if the channel shall operate as switch for different application. -
Page 10: Identical Parameter
3.3 Identical parameter The following parameters is available at channels selected as switch as at channels selected as switch. 3.3.1 Relay operating mode The following illustration shows the setting options for this parameter: illustration 7: Operating mode The following chart shows the dynamic range for this parameter: ETS-text Dynamic range comment... -
Page 11: Central Function
3.3.2 Central function The following illustration shows the setting options at the ETS-Software: Illustration 8: Central function The following chart shows the dynamic range for this parameter: ETS-text Dynamic range comment [default value] Central function switches the central function not active on/off... -
Page 12: Behavior At Bus Power Up/Down
The following chart shows the corresponding communication object: Number Name Length Usage lock 1 Bit locks the channel Chart 11: Communication object locking function The following diagram describes the blocking process. For the “Behavior at locking”, the action on was parameterized and for the “Behavior at unlocking”... -
Page 13: Switching Output
3.4 Switching output The following parameters, which are described at the headings 5.3.x, are only available at channels selected as switch. 3.4.1 Overview By choosing a channel as switch, a sub menu, called Channel A Switching, appears for this channel at the left drop down menu. - Page 14 The chart shows the possible settings for switching outputs: ETS-text Dynamic range comment [default value] Mode Operation mode of the channel normally opened normally closed On-Delay Switch on delay of the channel in seconds 0..0000 sec 0=nodelay Off-Delay Switch off delay of the channel in seconds 0..
-
Page 15: On/Off Delay
ETS-text Dynamic range comment [default value] Behavior at unlocking Off Action for deactivating the unlocking process no change previous state, catch up on switching previous state Priority/Forced control Priority control not active Not active: not active 2 Bit force control 2 bit force control: 00/01 No Control, "10"-priority, Off;... -
Page 16: Logic Function
The on-delay causes a delayed switch of the channel. At sending an on-signal to the channel, first the adjusted on delay time expires and afterwards the channel will be switched on. The off delay works on the same principle. At sending an off-signal, first the adjusted off delay time expires and afterwards the channel will be switched off. - Page 17 The chart shows the possible settings for Logic function: ETS-text Dynamic range Comment [default value] ： With Switch object and one Logic object The calculated result of the switch object and logic1 object as the executing value of the output channel. with Switch object and one Logic ：...
-
Page 18: Scene Function
The following chart shows the relevant communication objects: Number Name Length Usage Logic 1 1 Bit Logic object 1, is the rst input for the logic block Logic 2 1 Bit Logic object 2, is the second input for the logic block Chart 39: Communication objects logic According to the chosen logic operation only one or both objects have to become a 1-signal. - Page 19 These 8 storage options can get any of the possible 64 scene numbers. Illustration 32: Sub function scene The chart shows the possible settings for scenes, which are identical for all channels. The settings are available at the sub menu for the scenes: ETS-text Dynamic range Comment...
-
Page 20: Threshold Switch
ETS-text Dynamic range Comment [default value] not active Whether to enable the setting of scene H. Scene H active Supports up to 8 scene settings at every channel. Scene number : 1-64 Behavior of scene : off / on / lock / unlock 3.4.5 Threshold switch The following illustration shows the setting options at the ETS-Software: The chart shows all possible settings peration hours counter function:... -
Page 21: Operation Hours Counter Function
ETS-text Dynamic range Comment [default value] Threshold setting: five threshold ranges correspond to the Upper threshold> : above five threshold types 0-100% Threshold comparison: compare to the value sent by the 0-255 "Threshold switch" Object. 0-65500 If the value sent by the "Threshold switch" Object is less than -100~250℃... -
Page 22: Staircase
ETS-text Dynamic range Comment [default value] 4Byte value in s(DPT13.100) Set the data type of the uploaded telegram Select data type 2Byte value in h(DPT7.007) Send status of operation hours every Upload " peration hours counter" counting value regularly in "... - Page 23 The chart shows all possible settings for staircase outputs: ETS-text Dynamic range Comment [default value] normally open Output mode Operation mode of the channel normally closed The Switch Object can controls the On/Off of the Channel and has no stair- not active Additional switching case time limit.
- Page 24 ETS-text Dynamic range Comment [default value] Set whether to send the telegram of "Status" no send no send： at change at change：Sent when the current output status changes Send state at change and lock at change and lock：Sent when the current state changes or during lock always at input of telegram For related explanations, refer to the previous Switch mode.
-
Page 25: Staircase Time
ETS-text Dynamic range Comment [default value] bus power up, the actuator will execute the corresponding action type on the relay output channel Off：Output channel is set to OFF state start time of staircase light： Start stair light output Behavior after state before bus power down：Restore the state before power down. -
Page 26: Scenes (Staircase Light)
3.5.3 Scenes (Staircase Light) ETS-text Dynamic range Comment [default value] active：The Learn scene function is not enabled not active Object Value corresponds to DPT17.001 scene number Learn scene active active： Enable the Learn scene feature. Object Value cor responds to DPT 18. 001 scene control. - Page 27 There are some functions to adjust the Switch impulse function. These functions are described at the following segments. ETS-text Dynamic range Comment [default value] Normally open：relay contact is normally open. Impulse is relay con- normally open tact closure Output mode Normally closed ：relay contact is normally closed.
- Page 28 There are several functions to adjust the Heating Control with PWM function. These functions are described at the following segments. ETS-text Dynamic range Comment [default value] not energized closed not energized closed：corresponding to Output On for relay contact Valve type not energized opened not energized opened：corresponds to Output On for relay contact separation Set the cycle of the PWM.
-
Page 29: Heating Control With Pwm
N o . 2 8 , W u q u a n 3 r d R d . , W u g u D i s t . , N e w Ta i p e i C i t y 2 4 8 , Ta i w a n...
