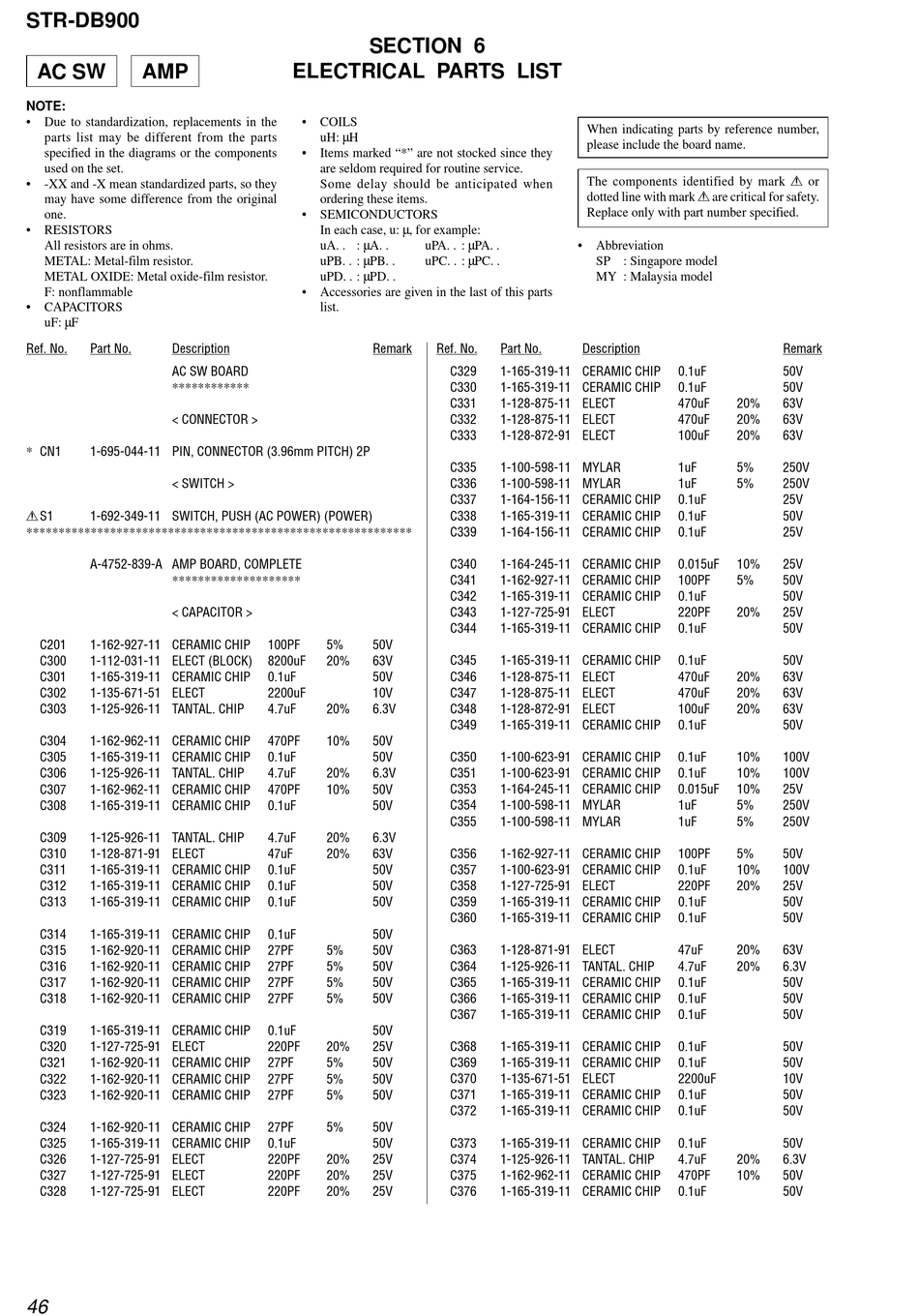

Electrical Parts List - Sony STR-DB900 Service Manual

STR-DB900
AC SW AMP
NOTE:
• Due to standardization, replacements in the
parts list may be different from the parts
specified in the diagrams or the components
used on the set.
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• RESISTORS
All resistors are in ohms.
METAL: Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F: nonflammable
• CAPACITORS
uF: µF
Ref. No. Part No. Description
AC SW BOARD
************
< CONNECTOR >
* CN1 1-695-044-11 PIN, CONNECTOR (3.96mm PITCH) 2P
< SWITCH >
0 S1
1-692-349-11 SWITCH, PUSH (AC POWER) (POWER)
************************************************************
A-4752-839-A AMP BOARD, COMPLETE
********************
< CAPACITOR >
C201 1-162-927-11 CERAMIC CHIP
C300 1-112-031-11 ELECT (BLOCK)
C301 1-165-319-11 CERAMIC CHIP
C302 1-135-671-51 ELECT
C303 1-125-926-11 TANTAL. CHIP
C304 1-162-962-11 CERAMIC CHIP
C305 1-165-319-11 CERAMIC CHIP
C306 1-125-926-11 TANTAL. CHIP
C307 1-162-962-11 CERAMIC CHIP
C308 1-165-319-11 CERAMIC CHIP
C309 1-125-926-11 TANTAL. CHIP
C310 1-128-871-91 ELECT
C311 1-165-319-11 CERAMIC CHIP
C312 1-165-319-11 CERAMIC CHIP
C313 1-165-319-11 CERAMIC CHIP
C314 1-165-319-11 CERAMIC CHIP
C315 1-162-920-11 CERAMIC CHIP
C316 1-162-920-11 CERAMIC CHIP
C317 1-162-920-11 CERAMIC CHIP
C318 1-162-920-11 CERAMIC CHIP
C319 1-165-319-11 CERAMIC CHIP
C320 1-127-725-91 ELECT
C321 1-162-920-11 CERAMIC CHIP
C322 1-162-920-11 CERAMIC CHIP
C323 1-162-920-11 CERAMIC CHIP
C324 1-162-920-11 CERAMIC CHIP
C325 1-165-319-11 CERAMIC CHIP
C326 1-127-725-91 ELECT
C327 1-127-725-91 ELECT
C328 1-127-725-91 ELECT
46
SECTION 6

ELECTRICAL PARTS LIST

• COILS
uH: µH
• Items marked "*" are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• SEMICONDUCTORS
In each case, u: µ, for example:
uA. . : µA. . uPA. . : µPA. .
uPB. . : µPB. . uPC. . : µPC. .
uPD. . : µPD. .
• Accessories are given in the last of this parts
list.
Remark Ref. No.
100PF 5% 50V
8200uF 20% 63V
0.1uF 50V
2200uF 10V
4.7uF 20% 6.3V
470PF 10% 50V
0.1uF 50V
4.7uF 20% 6.3V
470PF 10% 50V
0.1uF 50V
4.7uF 20% 6.3V
47uF 20% 63V
0.1uF 50V
0.1uF 50V
0.1uF 50V
0.1uF 50V
27PF 5% 50V
27PF 5% 50V
27PF 5% 50V
27PF 5% 50V
0.1uF 50V
220PF 20% 25V
27PF 5% 50V
27PF 5% 50V
27PF 5% 50V
27PF 5% 50V
0.1uF 50V
220PF 20% 25V
220PF 20% 25V
220PF 20% 25V
When indicating parts by reference number,
please include the board name.
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
• Abbreviation
SP : Singapore model
MY : Malaysia model
Part No. Description
C329 1-165-319-11 CERAMIC CHIP
C330 1-165-319-11 CERAMIC CHIP
C331 1-128-875-11 ELECT
C332 1-128-875-11 ELECT
C333 1-128-872-91 ELECT
C335 1-100-598-11 MYLAR
C336 1-100-598-11 MYLAR
C337 1-164-156-11 CERAMIC CHIP
C338 1-165-319-11 CERAMIC CHIP
C339 1-164-156-11 CERAMIC CHIP
C340 1-164-245-11 CERAMIC CHIP
C341 1-162-927-11 CERAMIC CHIP
C342 1-165-319-11 CERAMIC CHIP
C343 1-127-725-91 ELECT
C344 1-165-319-11 CERAMIC CHIP
C345 1-165-319-11 CERAMIC CHIP
C346 1-128-875-11 ELECT
C347 1-128-875-11 ELECT
C348 1-128-872-91 ELECT
C349 1-165-319-11 CERAMIC CHIP
C350 1-100-623-91 CERAMIC CHIP
C351 1-100-623-91 CERAMIC CHIP
C353 1-164-245-11 CERAMIC CHIP
C354 1-100-598-11 MYLAR
C355 1-100-598-11 MYLAR
C356 1-162-927-11 CERAMIC CHIP
C357 1-100-623-91 CERAMIC CHIP
C358 1-127-725-91 ELECT
C359 1-165-319-11 CERAMIC CHIP
C360 1-165-319-11 CERAMIC CHIP
C363 1-128-871-91 ELECT
C364 1-125-926-11 TANTAL. CHIP
C365 1-165-319-11 CERAMIC CHIP
C366 1-165-319-11 CERAMIC CHIP
C367 1-165-319-11 CERAMIC CHIP
C368 1-165-319-11 CERAMIC CHIP
C369 1-165-319-11 CERAMIC CHIP
C370 1-135-671-51 ELECT
C371 1-165-319-11 CERAMIC CHIP
C372 1-165-319-11 CERAMIC CHIP
C373 1-165-319-11 CERAMIC CHIP
C374 1-125-926-11 TANTAL. CHIP
C375 1-162-962-11 CERAMIC CHIP
C376 1-165-319-11 CERAMIC CHIP
Remark
0.1uF 50V
0.1uF 50V
470uF 20% 63V
470uF 20% 63V
100uF 20% 63V
1uF 5% 250V
1uF 5% 250V
0.1uF 25V
0.1uF 50V
0.1uF 25V
0.015uF 10% 25V
100PF 5% 50V
0.1uF 50V
220PF 20% 25V
0.1uF 50V
0.1uF 50V
470uF 20% 63V
470uF 20% 63V
100uF 20% 63V
0.1uF 50V
0.1uF 10% 100V
0.1uF 10% 100V
0.015uF 10% 25V
1uF 5% 250V
1uF 5% 250V
100PF 5% 50V
0.1uF 10% 100V
220PF 20% 25V
0.1uF 50V
0.1uF 50V
47uF 20% 63V
4.7uF 20% 6.3V
0.1uF 50V
0.1uF 50V
0.1uF 50V
0.1uF 50V
0.1uF 50V
2200uF 10V
0.1uF 50V
0.1uF 50V
0.1uF 50V
4.7uF 20% 6.3V
470PF 10% 50V
0.1uF 50V
