hardware setup

1
2
3
4

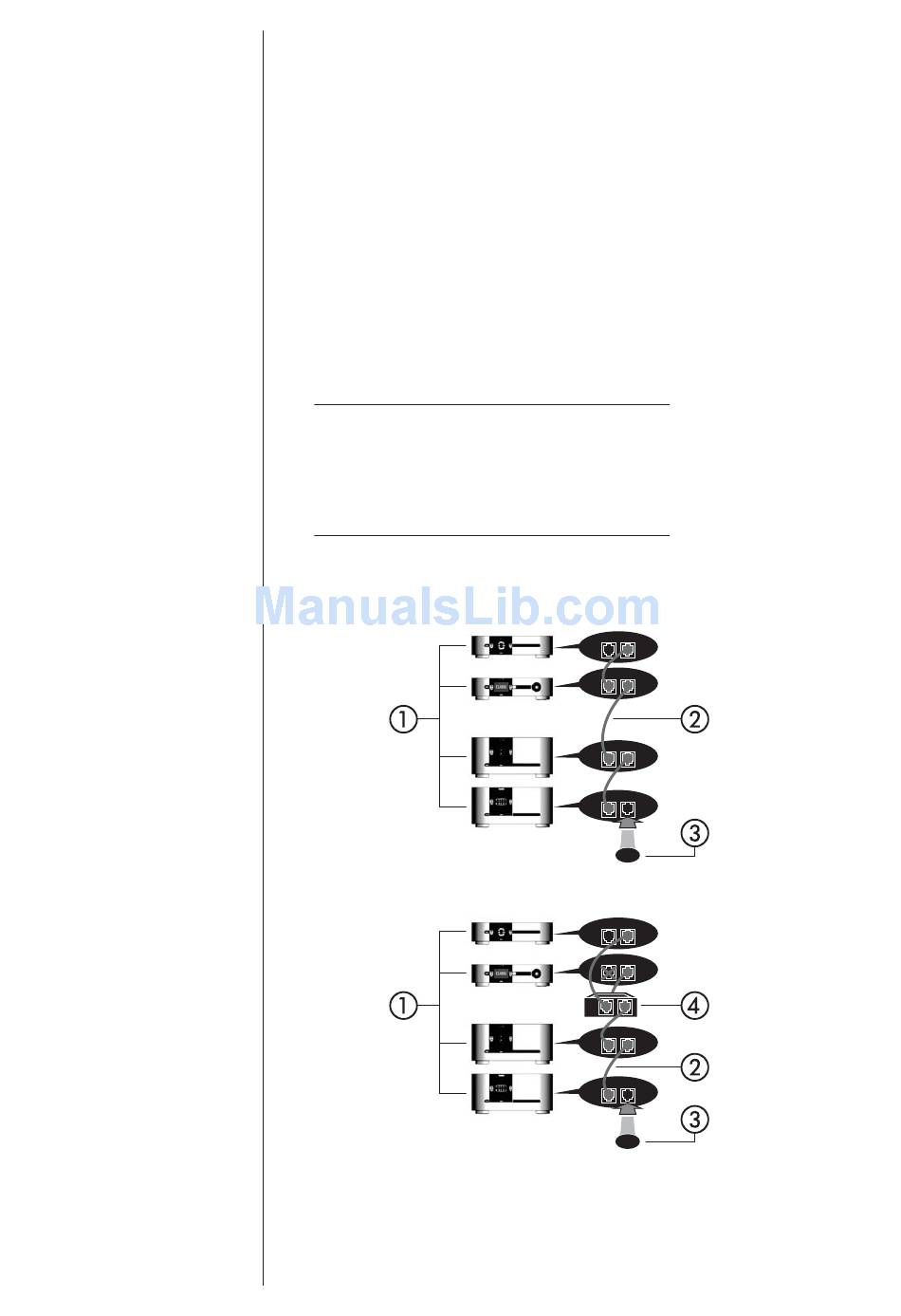

Th e diagrams below illustrate how to connect the CAN-Bus hardware.
Classé Delta Series Products
Two or more Classé Delta series products are required, at least one of which
must have a touchscreen display.
Category 5 Network Cables
Th ese are ordinary network cables, commonly used for broadband Internet
connections. Th ey should be typical "straight through" cables not the "crossed
over" type, and the total required will be one less than the total number of
Delta series components in your system.
CAN-Bus Terminator
At minimum, a single CAN-Bus Terminator will be required. It is inserted
into the CAN-Bus OUT connector of the last component in the CAN-Bus
daisy chain. One is included in the box with your SSP-800. They are also
available free of charge from your nearest Classé Customer Support Centre
http://www.Classeaudio.com/support/service.htm
SSP-300 & 600 CAN-Bus Interface Box
Systems that include an SSP-600 or SSP-300 will also require an
SSP-300/600 CAN-Bus Interface Box. Th ese are included with the products or
available free of charge from your nearest Classé Customer Support Centre
http://www.Classeaudio.com/support/service.htm
Any combination of models in any order without SSP-300 or SSP-600.
Any combination of models in any order with SSP-300 or SSP-600.
NOTE: Daisy chain must be terminated with CAN-Bus Terminator.
CAN-BUS
IN OUT
CAN-BUS
IN OUT
CAN-BUS
IN OUT
CAN-BUS
IN OUT
CAN-BUS
IN OUT
CAN-BUS
IN OUT
CAN-BUS
IN OUT
CAN-BUS
IN OUT
