1
2
8
7 9
1
VIDEO IN
Pr Pb
S-VID1 S-VID2 1 2
DIGITAL INPUT
COAX1 COAX3
OPT1 OPT2 OPT3 OPT4
COAX2 COAX4
AUX 2 AUX 1
A1 L
A2 R

serial number

3
11 12
10
COMPONENT IN 2
Y Pr Pb Y
1 2
DIGITAL
7.1 AUDIO IN ANALOG AUDIO IN
OUTPUT FL SL CEN RL
COAX OPT
FR SR SUB RR
ANALOG AUDIO OUT
FRONT R FRONT L CENTER SUB
S
C
20

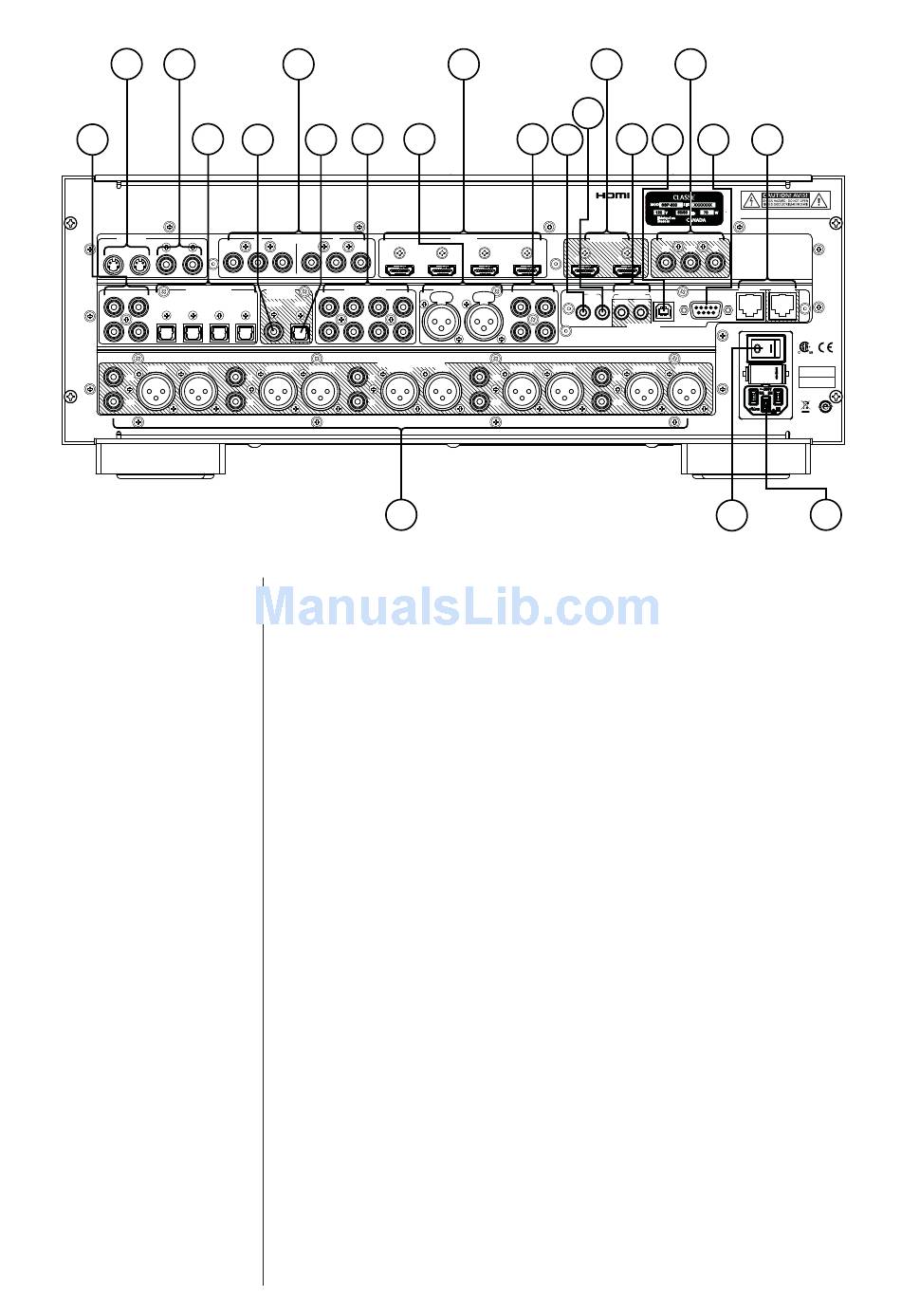

Rear Panel

Th e rear panel of the SSP-800 is shown above. Th e numbers in the drawing refer
to the descriptions in this section.
You'll fi nd your processor's serial number on the top right edge of the rear panel,
as shown in the graphic above (the black label). Please record this number on the
Introduction Page (page 6) of this manual for future reference.
And since you have found the serial number, please use it to register your
purchase, if you haven't done so yet. As we've said, your registration is our way
of keeping in touch with you. We will use the information to advise you of any
updates or other items of interest. Registration is simple, so please register online
at www.classeaudio.com or fi ll out the registration card and drop it in the mail.
1 S-Video Inputs
Th e SSP-800 supports two S-Video inputs, labeled S-VID1 and S-VID2.
Use these inputs when the output of your source component is S-Video.
S-Video (also called Super-Video or Y/C video) is an analog video format
in which the black and white (luminance or Y) and color (chrominance or
C) portions of the video signal are transmitted separately and recombined
by the receiving device. S-Video transmission produces less color bleeding
and better edge defi nition than a standard composite video connection.
4 5
15
13 16 17
14
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
HDMI IN HDMI OUT
3 4 1 2
L2 L3 IR TRIGGER
R1 L1
IN OUT OUT1
R2 R3
SURR R SURR L
SL RL
SR RR
6
18 19
MOD SER
SSP-800 XXXXXXX
~
120 V 50/60 70 W CAUTION! TO REDUCE THE RISK OF ELECTRIC SHOCK, GROUNDING
Hz
OF THE CENTER PIN OF THIS PLUG MUST BE MAINTAINED
Fabriqué au
CANADA
Made in AVIS! POUR RÉDUIRE LE RISQUE DE CHOC ÉLECTRIQUE
LA FICHE CENTRALE DE LA PRISE DOIT ÊTRE
BRANCHÉE POUR MAINTENIR LA MISE À LA TERRE
COMPONENT OUT
Pr Pb Y
CAN IN CAN OUT
USB RS-232
OUT2
CONTROL
REAR R REAR L
21
100-120V~
T800mAL250V
220-240V~
T500mAE250V
22
15
