DT Research 581T Basic Operation Manual

I/O Ports

The Medical-Cart Computer has a comprehensive set of I/O ports. The following ports are
located along the lower rear edge of the unit.
Left Front Right
DC-out (optional)
A
B Audio jack
DC-in
C
Ethernet port (RJ45)
D
581T:
E COM ports
HDMI (1.4a)
F
USB 2.0
G
USB 3.0
H
582T:
I Power
J Function buttons
Reading light on/off button
K
LED reading light 584T:
L
M
Battery slots

Cleaning the Screen

• A screen cleaning solution that is alcohol-free and non-abrasive can be used to clean the
touch screen.
• Cleaning with a micro-fiber cloth is recommended.
• Please spread the solution onto the cloth and then clean the touch screen.

Cleaning the Anti-microbial Enclosure

• Use a soft/non-abrasive cloth moistened with water to clean the enclosure.
• If using a cleaner, an alcohol-free and oxide-free cleaning liquid is recommended.
• To prevent scratching the anti-microbial coating, please wipe gently.
DT Research, Inc.
2000 Concourse Drive, San Jose, CA 95131
Copyright © 2022, DT Research, Inc. All Rights Reserved.
signage dtri com
M
582T/584T back
G
581T back
M
Bottom
B C D E F H
I J K L
A B C D E F H
I J K L
A B C D E F H
I J K L
BOG090722 DT58X ENG
Medical-Cart Computer
M
581T/582T/584T

INTRODUCTION

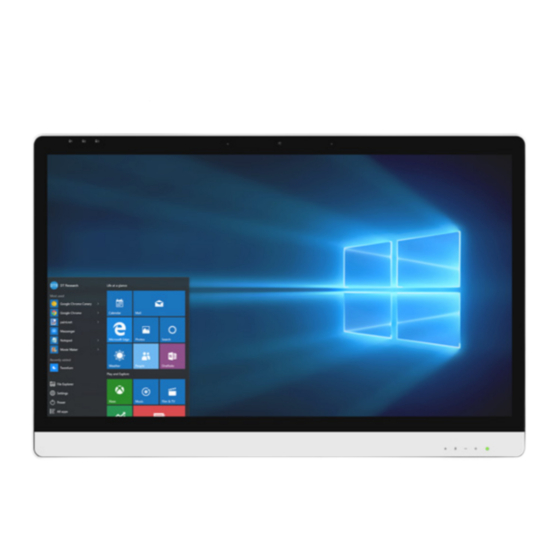

Thank you for purchasing DT Research 581T/582T/584T All-in-One Medical-Cart Computer.
Available in 19.5", 22" and 24" display and powered by an Intel® Pentium® Gold or Core™ i
processor, the 581T/582T/584T guarantees high-performance yet energy-efficient functionality
while offering at-a-glance examination thanks to its big, easy-to-read display. With the optional
hot-swappable batteries, patient data can be managed fluidly without operations being
interrupted due to the act of replacing batteries, while the built-in Wi-Fi and other optional
data-capture modules further improve any point-of-care applications.
Please examine the contents below to ensure a smooth set-up and startup. The All-in-One
Medical-Cart Computer is ready for use out of the box in its default configuration when
powered by the energy source provided. The following contents include instructions and
guidance on hardware features and applications for the computer.
Please contact your device provider for information pertaining to software operating systems
or relevant software applications.

PACKAGE CONTENTS

• 581T/582T/584T
• 2 or 3 DR202 Li-ion batteries (optional)
• AC-DC power adapter with power cord
• Basic operation guide
