DT Research 594S Basic Operation Manual

I/O Ports

The Medical-Cart Computer has a comprehensive set of I/O ports. The following ports are
located along the lower rear edge of the unit.
Front
Left
Bottom
592S
H D E F I
G
Power and function buttons
A
Smart card reader (optional)
B
C Battery packs (optional)
DC-IN jack
D
USB ports
E

Cleaning the Screen

• A screen cleaning solution that is alcohol-free and non-abrasive can be used to clean the
touchscreen.
• Cleaning with a micro-fiber cloth is recommended.
• Please spread the solution onto the cloth and then clean the touchscreen.

Cleaning the Antimicrobial Enclosure

• Use a soft/non-abrasive cloth moistened with water to clean the enclosure.
• If using a cleaner, an alcohol-free and oxide-free cleaning liquid is recommended.
• To prevent scratching the antimicrobial coating, please wipe gently.
DT Research, Inc.
2000 Concourse Drive, San Jose, CA 95131
Copyright © 2022, DT Research, Inc. All Rights Reserved.
signage dtri com
Right Top
C
A
E
B
594S
H D E F G H
Ethernet port (RJ45)
F
Audio jack
G
H COM ports
HDMI (1.4a)
I
BOG062222 DT59XS ENG
Medical-Grade Integrated LCD System
I
592S/594S

INTRODUCTION

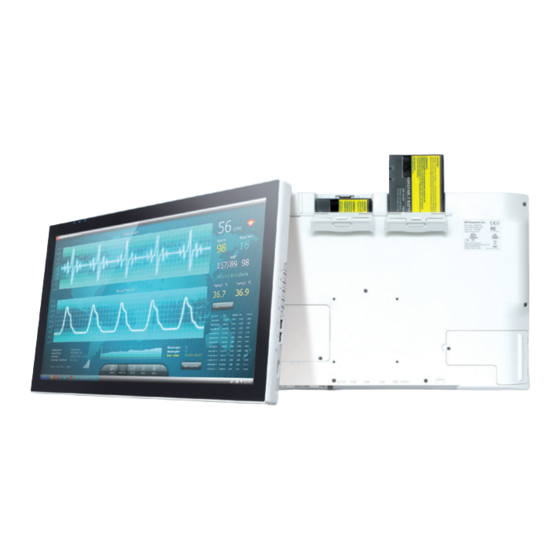

Thank you for acquiring DT Research's Medical-Cart Computer. With a 22-inch or 24-inch display
and powered by the Intel® processor, the Medical-Cart Computer offers optimal combinations
of performance and power savings. With fully-integrated point-of-care modules within an
elegant, space-saving design, the Medical-Cart Computer is the optimum solution to enhance
workflow and service.
Please take a few moments to review the contents of this document to ensure that the setup
and startup proceed smoothly. The Medical-Cart Computer is ready for use, out of the box,
in its default configuration when powered by the power source provided. The following
documentation offers guidance on the hardware elements and features of the computer.
Please refer to your device provider for information pertaining to the software operating
system or software applications.

PACKAGE CONTENTS

• One 592S or 594S
• Three DR202 Li-ion batteries (optional)
• AC-DC power adapter with power cord
• Basic operation guide
