Summary of Contents for LG VK7320GHAYM

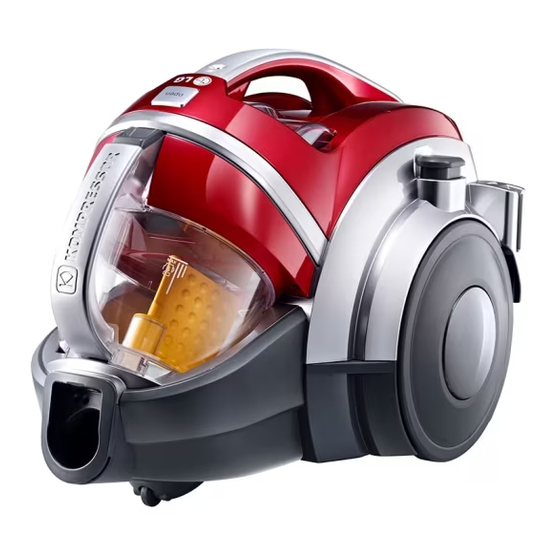

- Page 1 VK7320GHAYM 1-19 20-36...
- Page 3 17 18 VK7320GHAYM 220V~ 50Hz 1800W 2000W 6.0Kg 1.2L 285mmX445mmX305mm...
- Page 20 Disassembling Cleansing How to separate, clean and assemble exhaust filter Disassembling Cleansing Assembling Check before reporting the trouble If you have a problem 34~35 Packing List VK7320GHAYM 220V~ 50Hz 1800W 2000W 6.0Kg Dust Capacity: 1.2L 285mm x 445mm x 305mm...
- Page 23 Flexible Hose Control button Cord winding Telescopic tube Button Crevice Dust Brush Corner Nozzle Mop Nozzle Hose Telescopic Tube Sani punch Tool & Upholstery Nozzle...
- Page 24 Using Dust Brush & Upholstery Nozzle Tear the vinyl bag and pull out accessories. Push the button Dusting brush Dussting brush mode Upholstery nozzle mode Upholstery Nozzle is for vacuuming upholstery,mattresses, etc. Nozzle, Crevice Nozzle, Crevice can be used for cleaning the place hard to reach.
- Page 25 Using and cleaning the Corner nozzle Using corner nozzle Assembling Using Corner nozzle can be used to Corner nozzle makes you more clean common floor, also can be convenient to clean corner and used to clean corner when be small space. puckered.
- Page 26 Using and cleaning the Sani Punch Turn the button 2~3 times when the dust is filled in the dustbin while cleaning.(the dust can be cleaned up) Bottom plate Punch bar...
- Page 27 Using the Mop and Mop Nozzle Using the Mop When using the mop nozzle, please dry it first. Always using special mop of LG. Attach the mop to the bottom of the nozzle with the white surface upturned. When drying the mop in washing machine, set it to the weakest mode.
- Page 28 Using the Mop Disconnecting method 1.After cleaning press the treadle of mop board to separate the mop and mop board. Then you can take off the dirty mop. Cleaning method 1.After cleaning , if the suction inlet blocked by scraps of paper, toothpicks or other foreign matter, please open the transparent cover then clean the nozzle.
- Page 29 Dust tank button Put the Vacuum cleaner on the floor , push the Open dust tank cover. and clean it. release button of Dust Tank and pull it. Attention When you put Vacuum cleaner set on floor When you put Vacuum cleaner set on floor upright ,dust tank can not be removed upright ,dust tank can not be removed from body.
-
Page 30: How To Clean The Dust Box
How to clean the dust box Push the dust tank back, make sure Put dust tank cover back. dust tank locked well. - Page 31 How to separate, clean and assemble the protection filter of the motor...
- Page 32 How to separate, clean and assemble exhaust filter Disassembling The exhaust filter should be cleaned at least once half a year. Allow exhaust filter to dry in a shaded location for a dry. Exhaust filter cover Exhaust filter Button Exhaust filter cover button Exhaust filter cover Shake off the exhaust filter.
- Page 33 Check before reporting the trouble You won't be happy to waste money by calling for service when there is no trouble with the cleaner. Here is good advice to follow for trouble shooting before calling for service. Read the instructions carefully, and you can remove the trouble by yourself.
