- Page 1 Mounting instructions High Pressure Transducer P3MBP A1710-3.3 en...
-
Page 3: Table Of Contents
P3MBP BlueLine Contents Page Safety instructions ..........List of components supplied . -
Page 4: Safety Instructions
P3MBP BlueLine Safety instructions Use in accordance with the regulations The P3MB pressure transducer is to be used exclusively for pressure measu- rement and directly related control tasks. Any other use is deemed to be not as prescribed. To ensure safe operation, the transducer must only be used in accordance with the specifications in the User Manual. - Page 5 P3MBP BlueLine All existing regulations must be complied with. There must be reference to the residual dangers connected with pressure measurement technology. Even though the P3MB is designed to be as safe as possible, safety regula- tions demand that burst protection is provided all round the transducer. The transducer must be protected against mechanical stress or shock.
- Page 6 Recalibration and repair When you send the transducer for calibration or repair to HBM, please specify the pressure medium used. Traces of the medium can always remain in the measuring bore. We need this information to act adequately and, if required, select the appropriate cleaning agent.
-
Page 7: List Of Components Supplied
P3MBP BlueLine List of components supplied Pressure transducer 1-P3MBP/5000 bar/10000 bar/15000 bar Double-cone seal with packing (for nominal (rated) measuring range of 5.000 bar) Order no.: 2-9289.5512 Double-cone seal (for nominal (rated) measuring range of 10.000 bar and 15.000 bar) Order no.: 3-9219.0816 User manual Cable made of polyurethane with Lemosa connector (male) 2-9268.0835... -
Page 8: Construction And Operating Mode

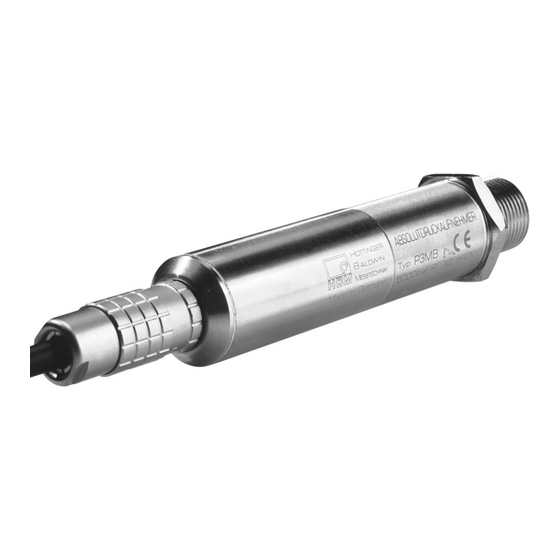

BlueLine series pressure transducers (5000 bar, 10,000 bar, 15,000 bar) have been designed to measure static and dynamic pressures of fluids. The development of the P3MB BlueLine was based on HBM’s years of expe- rience in high pressure technology. Since 1970, devices in accordance with the P3M principle have been working successfully with a nominal (rated) measuring range up to 3600 bar. -
Page 9: Mounting
The parts must fit to- gether easily. • Use only the seals provided for this purpose by HBM. • Devices must never be installed in a counterpart without a relief aperture. - Page 10 P3MBP BlueLine CAUTION When tightening, the wrench (size 27) must only be applied to the clamping area of the mounting flange, and not to the housing or cable entry. The permitted tightening torque is 30Nm. Relief aperture Double-cone seal min. 17 Seal with packing P3MBP 5000 Relief aperture...
-
Page 11: Electrical Connection
Available for future violet available expansion brown available Lemosa connector FFA.2E.310.CLAC65 Solder side Abb. 4.1: Electrical connection of the P3MBP pressure transducer The cable shield is connected to the transducer housing (see HBM-”Greenline Shielding Concept”, G36.35.0) A1710-3.3 en... -
Page 12: Cable Extension
4.1 Cable extension Use shielded, low-capacitance extension cable. Above all the excitation cir- cuits must have large cross-sections. HBM supplies its recommended exten- sion cable and measuring cable by the metre. When extending cable, ensure perfect connection with lowest possible contact resistance and good insulation between the circuits and ground. -
Page 13: Measuring
The P3MB/5000 bar is designed for 10 alternating loads at approx. 4000 bar and HBM is aiming to further increase the dynamic strength. Calibration by reference to static pressures also applies when measuring dynamic pressures. Please note that in the case of measurement frequencies in the natural frequency range, amplitude reinforcements have to be taken into account. -
Page 14: Specifications (In Accordance With Din 16 086)
Overload limit at reference temperature Test pressure During dynamic loading Permissible pressure Permissible vibration amplitude 3500 5000 6000 according to DIN 50 100 Dead volume (with supplied HBM sealing) Control volume approx. 1 Output characteristics Nominal (rated) sensitivity mV/V Sensitivity tolerance t"0.2 t"0.4 t"0.5... - Page 15 P3MBP BlueLine Ambient conditions Reference temperature Nominal (rated) temperature range °C -10...+80 Operating temperature range °C -40...+100 Storage temperature range -50...+100 °C Impact resistance (tested under DIN 40 046) Impact acceleration 1000 Impact duration Impact form Half sine wave Mechanical specifications Pressure connection 1-P3MB M20 x 1.5 with sealing cone 58 in unit with packing for the measure-...
-
Page 16: Dimensions (In Mm)
P3MBP BlueLine Dimensions (in mm) Lemosa connector ERA.2E.310.SL a.f. 27 Connecting cable 2-9268.0835; 7 m long (included in delivery) Abb. 7.1: P3MBP-5000 bar Lemosa connector ERA.2E.310.SL M20 x 1.5 a.f. 27 Connecting cable 2-9268.0835; 7 m long (included in delivery) Abb. - Page 17 P3MBP BlueLine A1710-3.3 en...
- Page 18 P3MBP BlueLine A1710-3.3 en...
- Page 19 P3MBP BlueLine A1710-3.3 en...
- Page 20 Hottinger Baldwin Messtechnik GmbH Postfach 10 01 51, D-64201 Darmstadt Im Tiefen See 45, D-64293 Darmstadt Tel.: +49/61 51/ 8 03-0; Fax: +49/61 51/ 8039100 E-mail: support@hbm.com www.hbm.com A1710-3.3 en...
