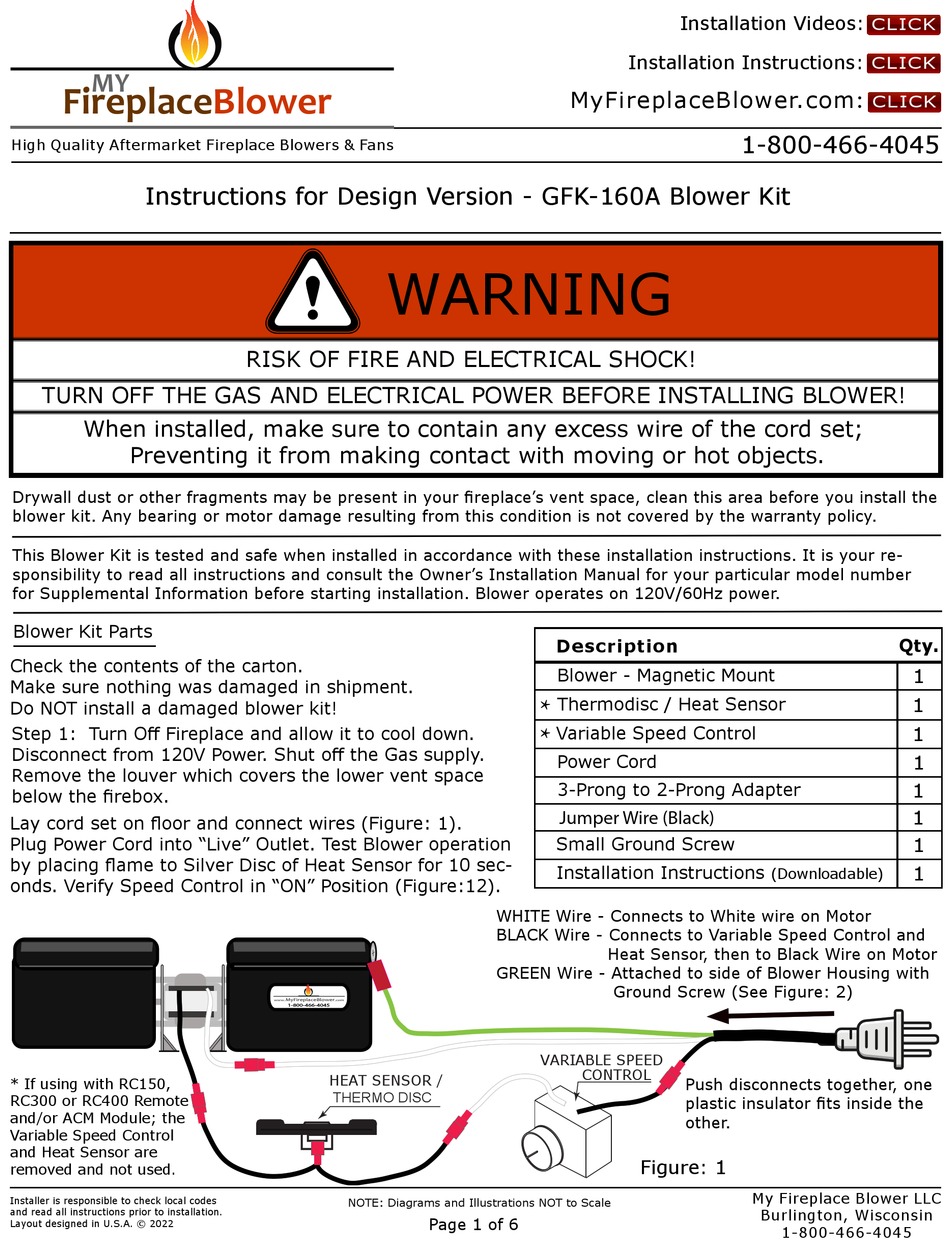

Instructions for Design Version - GFK-160A Blower Kit
TURN OFF THE GAS AND ELECTRICAL POWER BEFORE INSTALLING BLOWER!
When installed, make sure to contain any excess wire of the cord set;
Preventing it from making contact with moving or hot objects.
Drywall dust or other fragments may be present in your fireplace's vent space, clean this area before you install the
blower kit. Any bearing or motor damage resulting from this condition is not covered by the warranty policy.
This Blower Kit is tested and safe when installed in accordance with these installation instructions. It is your re-
sponsibility to read all instructions and consult the Owner's Installation Manual for your particular model number
for Supplemental Information before starting installation. Blower operates on 120V/60Hz power.
Blower Kit Parts
Check the contents of the carton.
Make sure nothing was damaged in shipment.
Do NOT install a damaged blower kit!
Step 1: Turn Off Fireplace and allow it to cool down.
Disconnect from 120V Power. Shut off the Gas supply.
Remove the louver which covers the lower vent space
below the firebox.
Lay cord set on floor and connect wires (Figure: 1).
Plug Power Cord into "Live" Outlet. Test Blower operation
by placing flame to Silver Disc of Heat Sensor for 10 sec-
onds. Verify Speed Control in "ON" Position (Figure:12).
* If using with RC150,
RC300 or RC400 Remote
and/or ACM Module; the
Variable Speed Control
and Heat Sensor are
removed and not used.
Installer is responsible to check local codes
and read all instructions prior to installation.
Layout designed in U.S.A. © 2022
WARNING
RISK OF FIRE AND ELECTRICAL SHOCK!
MyFireplaceBlower
www . . com
1-800-466-4045
HEAT SENSOR /
THERMO DISC
NOTE: Diagrams and Illustrations NOT to Scale
MyFireplaceBlower.com:
Description
Blower - Magnetic Mount
*
Thermodisc / Heat Sensor
*
Variable Speed Control
Power Cord
3-Prong to 2-Prong Adapter
Jumper Wire (Black)
Small Ground Screw
Installation Instructions
WHITE Wire - Connects to White wire on Motor
BLACK Wire - Connects to Variable Speed Control and
Heat Sensor, then to Black Wire on Motor
GREEN Wire - Attached to side of Blower Housing with
VARIABLE
CONTROL
