My Fireplace Blower GFK-160A Instructions

MY
FireplaceBlower
High Quality Aftermarket Fireplace Blowers & Fans
Instructions for Design Version - GFK-160A Blower Kit with Cord Set
TURN OFF THE GAS AND ELECTRICAL POWER BEFORE INSTALLING BLOWER!
When installed, make sure to contain any excess wire of the cord set;
Preventing it from making contact with moving or hot objects.
Drywall dust or other fragments may be present in your fireplace's vent space, clean this area before you install the
blower kit. Any bearing or motor damage resulting from this condition is not covered by the warranty policy.
This Blower Kit is tested and safe when installed in accordance with these installation instructions. It is your re-
sponsibility to read all instructions and consult the Owner's Installation Manual for your particular model number
for Supplemental Information before starting installation. Blower operates on 120V/60Hz power.

Blower Kit Parts

Check the contents of the carton.
Make sure nothing was damaged in shipment.
Do NOT install a damaged blower kit!
Description
Blower - Magnetic Mount
Thermodisc / Heat Sensor
Variable Speed Control
Power Cord
3-Prong to 2-Prong Adapter
Jumper Wire (Black)
Small Ground Screw
Installation Instructions
Step 1: Turn Off Fireplace and allow it to
cool down. Disconnect from 120V Power. Shut
off the Gas supply. Remove the louver which
covers the lower vent space below the firebox.
Lay cord set out in a straight line, with the
3-Prong Power Plug furthest away from the
fireplace.
Installer is responsible to check local codes
and read all instructions prior to installation.
Layout designed in U.S.A. © 2014
WARNING
RISK OF FIRE AND ELECTRICAL SHOCK!
Qty.
1
1
1
1
1
1
1
1
(Downloadable)
NOTE: Diagrams and Illustrations NOT to Scale
MyFireplaceBlower.com:

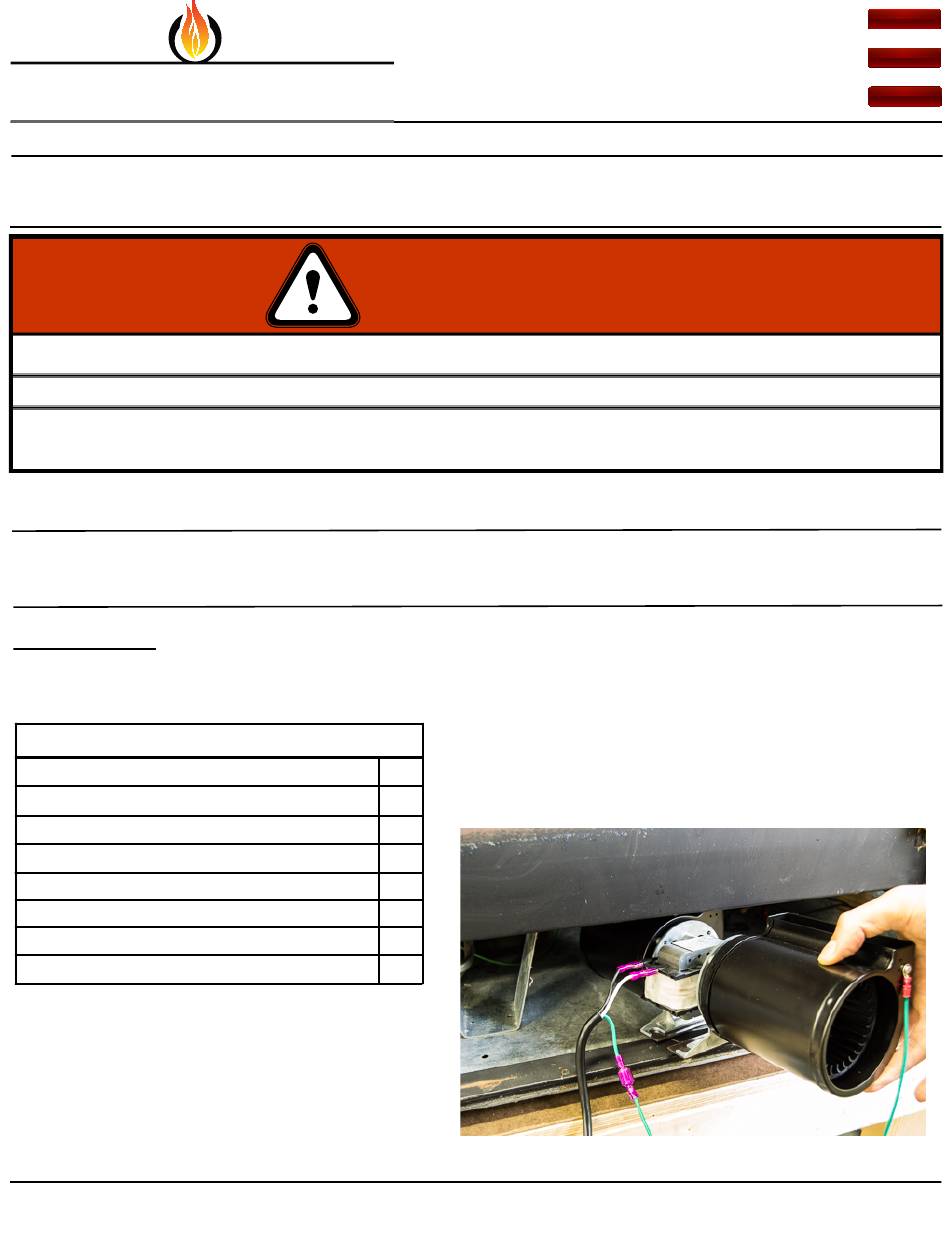

Step 2: Connect black and white wires of power cord

to either metal spade attached to motor; push discon-
nects onto the metal tabs. Use small screw to ground
ring terminal to small hole on end of fan. (Figure: 1)
Position blower with rectangle air exit ports facing up
and motor facing left. Slide blower into lower vent
space centered against the rear wall.(Figures: 1,3&16)
For "SL" Series, see (Figures: 5&14); a removable
cross-member bar may be present.
Figure: 1
•Does not matter which metal tab you
connect the black and white wires to.
Page 1 of 5
