My Fireplace Blower FK12 Instructions

MY
FireplaceBlower
High Quality Aftermarket Fireplace Blowers & Fans
Instructions for Design Version - FK12 Blower Kit
TURN OFF THE GAS AND ELECTRICAL POWER BEFORE INSTALLING BLOWER!
When installed, make sure to contain any excess wire of the cord set;
Preventing it from making contact with moving or hot objects.
Drywall dust or other fragments may be present in your fireplace's vent space, clean this area before you install the
blower kit. Any bearing or motor damage resulting from this condition is not covered by the warranty policy.
This Blower Kit is tested and safe when installed in accordance with these installation instructions. It is your re-
sponsibility to read all instructions and consult the Owner's Installation Manual for your particular model number
for Supplemental Information before starting installation. Blower operates on 115V/60Hz power.

Blower Kit Parts

Check the contents of the carton.
Make sure nothing was damaged in shipment.
Do NOT install a damaged blower kit!
Description
Fan
Power Cord
Dampening Pad
Velcro Strip
Installation Instructions
Step 1: Turn Off Fireplace and allow it to cool
down. Disconnect from 120V Power. Shut off
the Gas supply. Remove the louver which cov-
ers the lower vent space below the firebox.
Lay cord set out in a straight line, with the
3-Prong Power Plug furthest away from the
fireplace.
Installer is responsible to check local codes
and read all instructions prior to installation.
Layout designed in U.S.A. © 2014

WARNING

RISK OF FIRE AND ELECTRICAL SHOCK!
Qty.
1
1
1
3
1
(Downloadable)
NOTE: Diagrams and Illustrations NOT to Scale
MyFireplaceBlower.com:

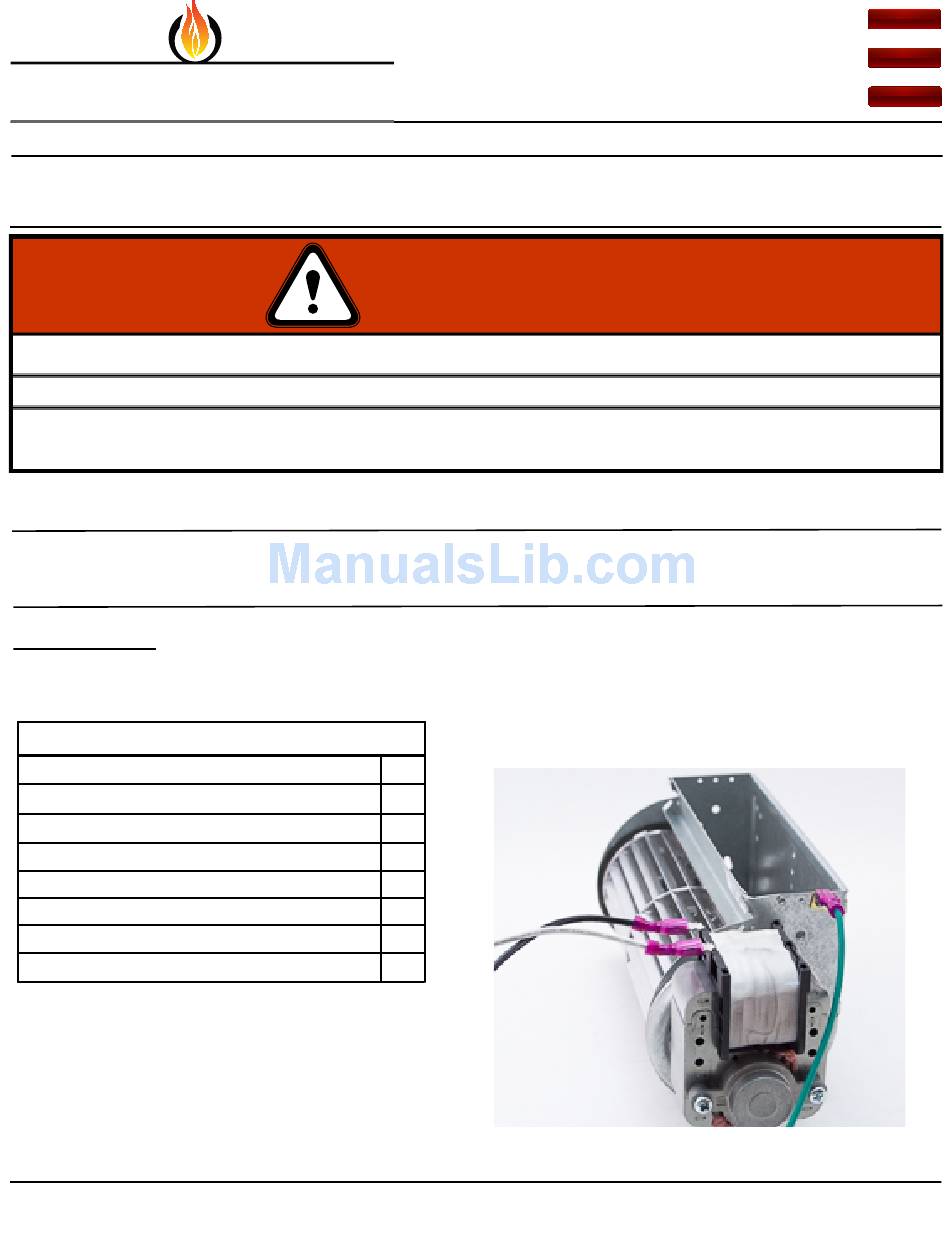

Step 2: Push the green wire disconnect onto the
ground tab on the end of fan. (Figure: 1)
Connect white and black wires of the cord set to either
of the spade terminals attached to the motor. Push
disconnects onto metal tabs. (Figure: 1)
Figure: 1
•Does not matter which metal tab you
connect the black and white wires to.
Page 1 of 4
