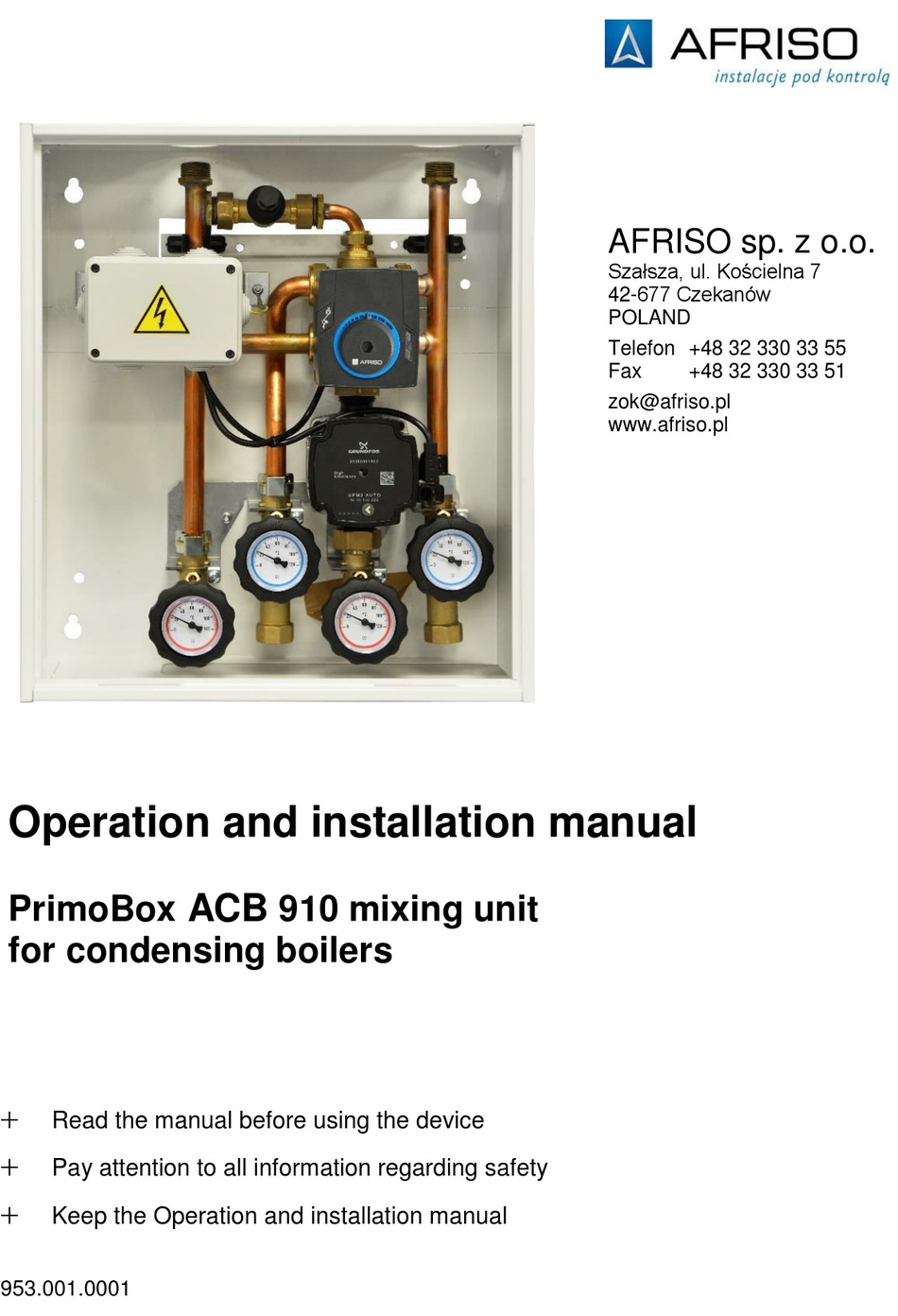

- Page 1 AFRISO sp. z o.o. Szałsza, ul. Kościelna 7 42-677 Czekanów POLAND Telefon +48 32 330 33 55 +48 32 330 33 51 zok@afriso.pl www.afriso.pl Operation and installation manual PrimoBox 910 mixing unit for condensing boilers Read the manual before using the device ...
-
Page 2: Table Of Contents
Assembly of the ARM ProClick actuator ..............18 Switching the actuator to manual operation ............19 Maintenance ......................19 10 Decommissioning, scrapping .................20 11 Warranty ........................20 12 Copyright ........................20 13 Customer satisfaction ....................20 14 Addresses ......................20 PrimoBox ACB 910 mixing unit for condensing boilers... -
Page 3: Explanations To The Installation And Operation Manual
Each device is checked for safety before shipment. The product should only be used if it is in a qualified technical condition. Read the instructions for assembly and use as well as observe the relevant safety regulations. PrimoBox ACB 910 mixing unit for condensing boilers... -
Page 4: Qualification Of Personnel
AFRISO sp. z o.o. makes every effort to ensure that the information materials do not contain errors. If errors or inaccuracies are found in the following installation and operation instructions, please contact: zok@afriso.pl, tel. -
Page 5: Product Description
4-way valve with 6 ports with a disproportionate valve sleeve. Hydraulic components are are connected with copper pipes. Everything is enclosed in a compact, steel housing. Fig. 1: Dimensions of the ACB mixing kit PrimoBox ACB 910 mixing unit for condensing boilers... -
Page 6: Construction
6- Supply from a condensing boiler 7- Differential pressure relief valve 8- Direct zone return 9- Direct zone supply 10- Electric box 11- Circulation pump Fig. 2: Construction of the ACB mixing unit for the condensing boiler PrimoBox ACB 910 mixing unit for condensing boilers... -
Page 7: Operation
Grundfos UPM3 AUTO 15-70 circulation pumps For the operation of the Grundfos UPM3 AUTO circulation pump included in the PrimoBox units, please refer to the attached operating instruction (also available on the pump manufacturer's website). PrimoBox ACB 910 mixing unit for condensing boilers... - Page 8 Instruction manual PrimoBox ACB unit connctions gas boiler direct zone low temperature zone Fig. 3: Connections diagram of the ACB 910 mixing unt PrimoBox ACB 910 mixing unit for condensing boilers...
-
Page 9: Hydraulic Diagram Of The Acb 910 Unit
Instruction manual 3.3 Hydraulic diagram of the ACB 910 unit Fig. 4: Hydraulic diagram of the ACB 910 set PrimoBox ACB 910 mixing unit for condensing boilers... -
Page 10: Application Scheme
3.4 Application scheme 1. ACB mixing unit 2. Condensing gas boiler with pump 3. Radiator installation 4. Underfloor heating installation Fig. 5: Sample application diagram - underfloor heating system circuit and radiator system circuit PrimoBox ACB 910 mixing unit for condensing boilers... -
Page 11: Specification
Housing protection IPX 0 4.1 Approvals The PrimoBox ACB 910 mixing unit for condensing boilers is subject to the Pressure Directive 2014/68 / EU and in accordance with art. 4.3 (sound engineering practice) are not CE marked. The circulating pump provided with the product has a declaration of conformity, which is available on the manufacturer's website. -
Page 12: Available Pressure Chart
Protect against water, moisture, dirt and dust. Possibility of damage during incorrect storage. ATTENTION Store the device in a dry and clean room. Protect against water, moisture, dirt and dust. PrimoBox ACB 910 mixing unit for condensing boilers... -
Page 13: Installation And Commissioning
If the dowels provided are not suitable for the selected wall, replace them with others. Mounting the PrimoBox ACB unit on the improper dowels can lead to its breaking off the wall! PrimoBox ACB 910 mixing unit for condensing boilers... -
Page 14: Flush Mounting
6.2 Flush mounting Check whether the wall is strong and thick enough and that the PrimoBox ACB 910 mixing unit will fit in the place you choose. To install the PrimoBox AZB mixing unit in the wall, breach the fins... -
Page 15: Connection Of Individual Heating Circuits
The connection between the electrical box and the pump and actuator is already made at the factory. PrimoBox ACB 910 mixing unit for condensing boilers... - Page 16 (not included) Cables for connecting the pump and actuator controller to the ACB electrical box are not included. The electrical connections should be made according to the diagram (Fig. 10). PrimoBox ACB 910 mixing unit for condensing boilers...
-
Page 17: Filling And Venting
- this way you will reduce the amount of air remaining in the installation after it has been filled. If the gas boiler does not have sufficient pressure, the system must be vented again. PrimoBox ACB 910 mixing unit for condensing boilers... -
Page 18: Assembly Of The Arm Proclick Actuator
After putting the actuator on the valve, switch back to automatic mode. PrimoBox ACB 910 mixing unit for condensing boilers... -
Page 19: Switching The Actuator To Manual Operation
Before the heating season, it is also recommended to check the circulation pump by making a test run. PrimoBox ACB mixing units do not require additional maintenance than those listed in chapter 9. PrimoBox ACB 910 mixing unit for condensing boilers... -
Page 20: Decommissioning, Scrapping
11 Warranty The manufacturer’s warranty for this product is 36 months counted from the date of purchase from AFRISO sp. z o.o. by the seller. In case of any alteration in the product or usage against this instruction manual, thewarranty becomes void.
