Veris Industries PH Series Installation Instructions

INSTALLATION INSTRUCTIONS
• Read instructions thoroughly prior to install
Applications shown are suggested means of installing sensors, but it is
the responsibility of the installer to ensure that the installation is in
compliance with all national and local codes and OSHA requirements.
Installation should be attempted only by individuals familiar with
proper installation techniques and with codes, standards, and proper
safety procedures for control installations. Warning: Do not use on
oxygen service, in an explosive/hazardous environment, or with
flammable/combustible media.
Install the PH Series in any stainless compatible media application.
Media must be compatible with 17-4 PH stainless steel.
A unique retainer bracket design eliminates the requirement for a
back-up wrench on the sensor fitting.
PH models can handle overload pressure of 2x's maximum full scale
range. Burst pressure is 5x's maximum full scale range.

WIRING

Connect transmitter to control system and power supply as indicated.
Note: PH Series are 3-wire sourcing type transmitters.
CAUTION: This product utilizes a half-wave rectifier power supply. If a
transformer is to be used to power this product, the transformer must
not be used to power other devices utilizing non-isolated full-wave
power supplies.
OPTIONAL: Connect TARE (zero) terminals to digital output (contact
closure) of control system.
CAUTION: TARE input is for dry-contact. Do not apply voltage to TARE
(zero) terminals.

CONFIGURATION

Use jumper JP1 to select voltage (V) or current (mA) mode.
Use jumper JP2 to select 0-10V or 0-5V output span. (Voltage mode only).
Use jumper JP3 to select slow or fast mode. Slow mode provides
5-second averaging for surge dampening.
Select appropriate full-scale range using the slide switch.

OPERATION

Test Mode: Test mode overrides output to full-scale. If product is
configured for current (mA) operation, output will be
20.0 mA in test mode. If product is configured for
voltage (VDC) operation, output will be 5.0 VDC or
10.0 VDC in test mode. (depending on position of JP2
output span jumper.)
Status LED: Status LED glows green to indicate normal operation.
Status LED glows red to indicate overpressure. Status
LED flashes red to indicate other fault condition.
TARE (Zero): Press and hold the "TARE" push-button for 2 seconds or
provide contact closure on auxiliary "REMOTE TARE"
terminal to automatically reset output to zero
pressure. To protect the unit from accidental tare, this
feature is enabled only when detected pressure is
within 5% of factory calibration.
#Z102149-0I
PH Series
Pressure Transducer – Wet Media

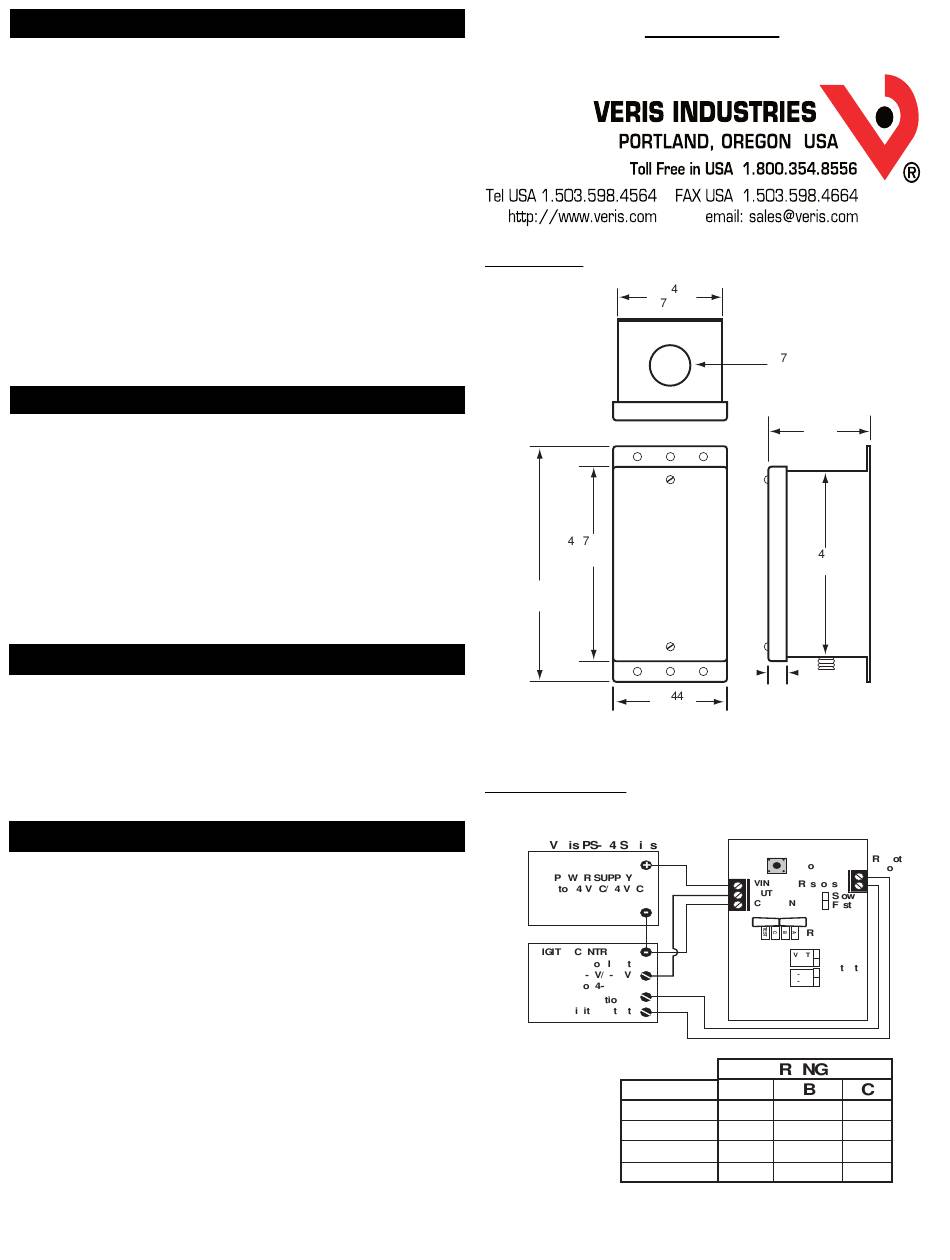

DIMENSIONS
2.2 9"
(5 mm)
.1 6"
(106 mm)
5.06"
(129 mm)
2. 5"
(62 mm)
WIRING DIAGRAM
er 2 er e
O E L
12 2 D 2 A
D AL O OL
Anal g npu
0 5 0 10
r 20mA
Op nal
D g al Ou pu
MODEL
07
08
09
10
.8 1" dia.
(22 mm)
2.189"
(56 mm)
.0"
(102 mm)
.391"
(10 mm)
1/4" NPT male thread,
stainless 17-4 PH
em e
Zer
Zer
e p n e
O
l
OMMO
a
ange
OL
mA
Ou pu
0 5
0 10
A E
A
25 50 100
62.5 125 250
125 250 500
250 500 1000
