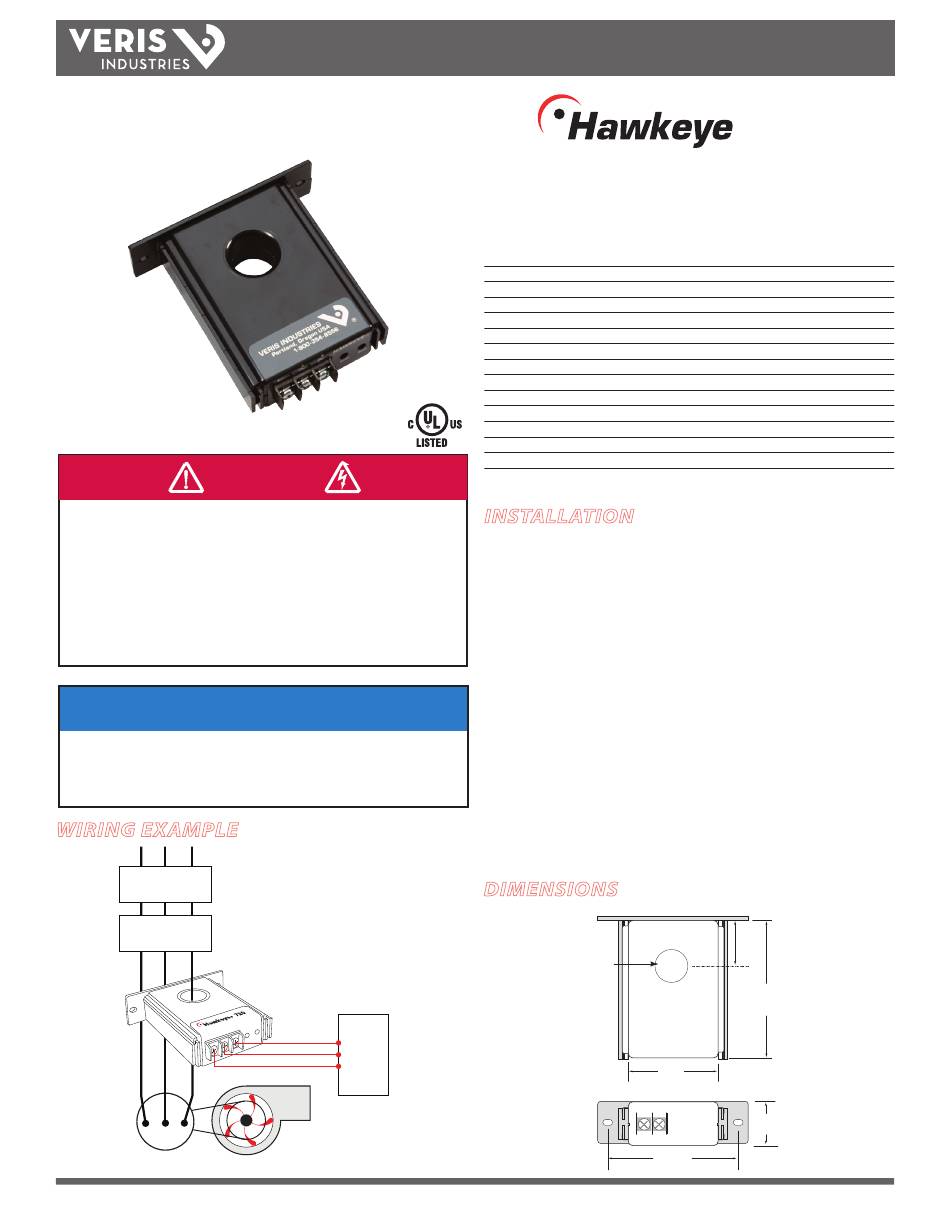

Veris Industries Hawkeye H720 Installation Manual

HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
• Follow safe electrical work practices. See NFPA 70E in the USA, or applicable local codes.
• This equipment must only be installed and serviced by qualified electrical personnel.
• Read, understand and follow the instructions before installing this product.
• Turn off all power supplying equipment before working on or inside the equipment.
• Use a properly rated voltage sensing device to confirm power is off.
DO NOT DEPEND ON THIS PRODUCT FOR VOLTAGE INDICATION
• Only install this product on insulated conductors.
Failure to follow these instructions will result in death or serious injury.
• This product is not intended for life or safety applications.
• Do not install this product in hazardous or classified locations.
• The installer is responsible for conformance to all applicable codes.
• Mount this product inside a suitable fire and electrical enclosure.
WIRING EXAMPLE
CONTACTOR
VFD
Motor
Z201379-0A PAGE 1
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Veris, and the Veris 'V' logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.
Find Quality Products Online at:
CURRENT MONITORING
TM
H720
DANGER
NOTICE
CONTROLLER
AI
GND
4-20mA IN
12 - 30VDC
Fan or Pump
GlobalTestSupply
www.
INSTALLATION GUIDE
Solid-Core Current Sensor, 4-20 mA Output,
VFD Compatible
Installer's Specifications
Sensor Power
Amperage Range
Insulation Class
Output
Zero Adjustment
Span Adjustment
Frequency Range
Temperature Range
Humidity Range
Accuracy 0.5% (combined linearity, hysteresis, and repeatability
Response Time
Terminal Block Max. Wire Size
Terminal Block Torque (nom.)
Agency Approvals
The product design provides for basic insulation only.
INSTALLATION
Disconnect and lock out power to the enclosure containing the
conductor to be monitored.
1. Locate a mounting surface for the removable mounting bracket that will allow
the monitored conductor to pass through the center window when it is installed
and that will keep the device at least 1/2" from any uninsulated conductors.
Determine cable routing for the controller connection, allowing wiring to reach
the mounting location.
2. Drill holes to mount the bracket to the chosen surface using the included screws.
3. Wire the output connections between the sensor and the controller (solid-state
contact).
4. Route the conductor through the sensor's center window and slip the assembly
into the mounting bracket.
5. Adjust the Zero and Span settings. Span can be set at any point from 20A to 200A.
6. Secure enclosure and reconnect power.
DIMENSIONS
Removable/Adjustable Mounting Bracket
0.7" Dia
(19 mm)
(55 mm)
(76 mm)
.com
720
TM
12-30 VDC, 30 mA max.
0 to 200 A continuous
600 VAC RMS
3.5 to 4.5 mA
20 to 200 A, full scale
-15° to 60°C (5° to 140°F)
10-90% RH non-condensing
4 in-lbs (0.45 N-m)
UL 508, E150462
0.33"
(9 mm)
0.75" Dia
(19 mm)
3.13"
(80 mm)
2.15"
1.00"
(26 mm)
3.0"
sales@GlobalTestSupply.com
4-20 mA
10 to 80 Hz
2 sec
14 AWG
01121
