Veris Industries PWR Series Installation Manual

Installation Guide
Pressure
NOTICE
• This product is not intended for life or safety applications.
• Do not install this product in hazardous or classi ed locations.
• Read and understand the instructions before installing this product.
• Turn o all power supplying equipment before working on it.
• The installer is responsible for conformance to all applicable codes.
If this product is used in a manner not speci ed by the manufacturer, the protection
provided by the product may be impaired. No responsibility is assumed by the
manufacturer for any consequences arising out of the use of this material.
Z206731-0B Page 1 of 4
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Aerospond, Veris, and the Veris 'V' logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.

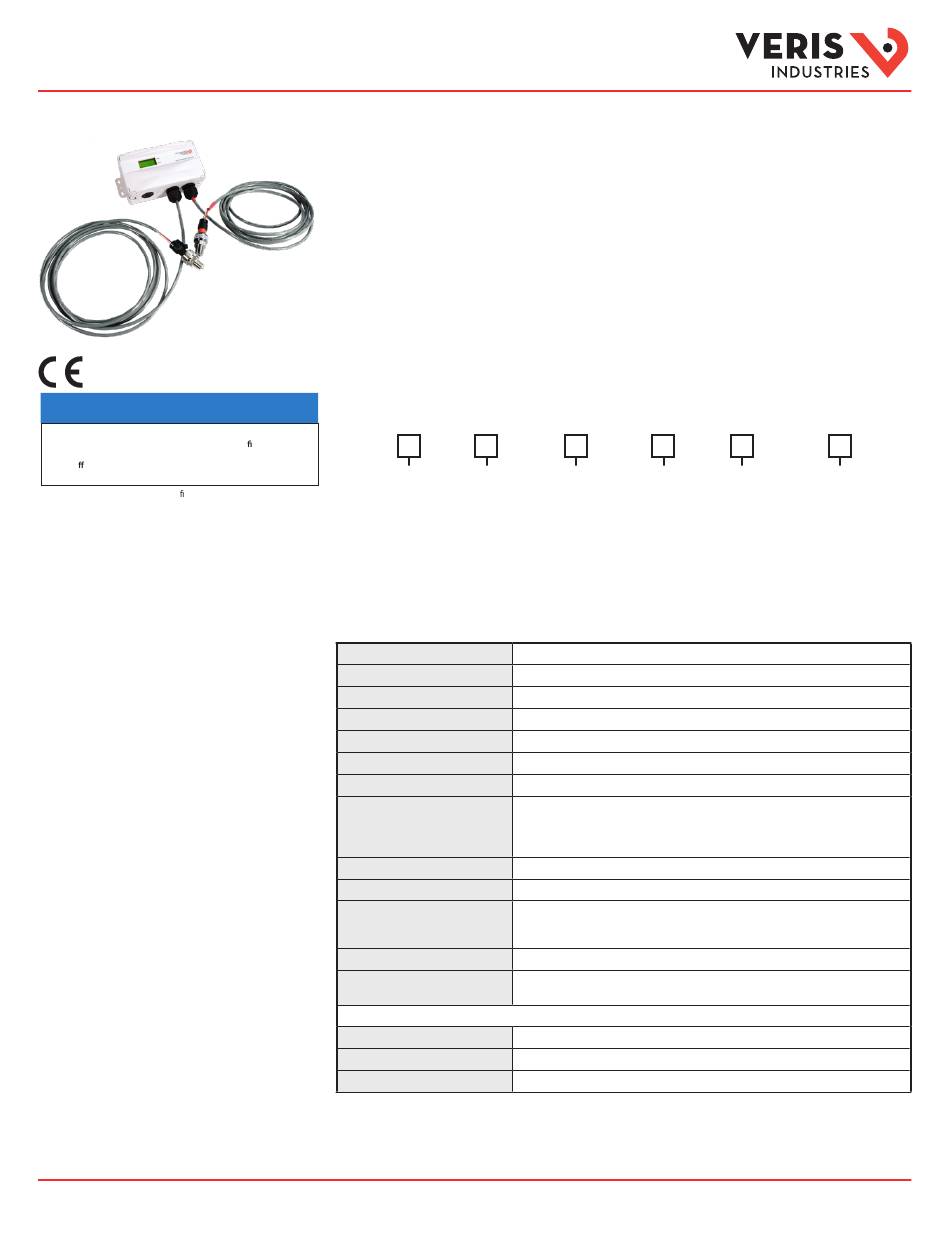

Wet Media Remote Pressure Transducer

Product Overview

The PWR Series remote pressure transducers are designed for differential pressure applications. The sensors are
remotely installed on existing plumbing runs. The PWR is available with either armored (6 ft.) or shielded (10 or 20
ft) sensor cables, and it requires a 15 to 30 Vdc or 24 Vac power source to generate its output. The PWR is warranted
for a period of five years.

Product Identification

Display
L
PWR
= LCD

Specifications

Media Compatibility
Input Power
Maximum Current Draw
Status Indication
Proof Pressure
Burst Pressure
Accuracy at 25°C***
Surge Damping
Long Term Stability
Zero Offset
(Bidirectional and Port
Swap Modes Only)
Zero Adjust
0 to 50 psig
0 to 100 psig
0 to 250 psig
©2018 Veris Industries USA 800.354.8556 or +1.503.598.4564 / support@veris.com
Other companies' trademarks are hereby acknowledged to belong to their respective owners.
PWR Series
NIST Operational Range
X
= Standard 03 = 0 to 50 psid
04 = 0 to 100 psid
05 = 0 to 250 psid
17-4 PH stainless steel
15 to 30 Vdc, 24 Vac nom. 50/60 Hz*
DC: 125 mA; AC: 280 mA
Output 3-wire transmitter; user-selectable 4 to 20mA/0 to 5V/0 to 10V
Dual color LED
2x max. F.S. range**
5x max. F.S. range**
Ranges A and B: ±1% F.S. typical
Range C: ±1.5% F.S. typical
Range D: ±2% F.S. typical
(For less than or equal to 20 ft. (6.1 m) cable length)
Electronic; 1 or 5 second averaging
±0.25%
0.5%
Pushbutton auto-zero and digital input (2-position terminal block)
Fittings ¼" NPT male thread, stainless steel 17-4 PH;
Overall thread length: 0.59" (conforms to ANSI/ASME B1.20.1 standard)
OPERATIONAL RANGES
5/10/25/50 psid
10/20/50/100 psid
25/50/125/250 psid
Media Cable Length Cable
S
= Water 006 = 6 ft (1.8 m)
Blank = Standard
010 = 10 ft (3.1 m) A = Armored
020 = 20 ft (6.1 m)
† Standard cable available only in 10 ft and 20 ft lengths.
‡ Armored cable available only in 6 ft length.
Note: Extension of total cable length greater than 20 feet
may result in reduced accuracy.
