Veris Industries PWXN07C Installation Manual

Installation Guide
Pressure
available
NOTICE
• This product is not intended for life or safety applications.
• Do not install this product in hazardous or classified locations.
• Read and understand the instructions before installing
this product.
• Turn off all power supplying equipment before working on it.
• The installer is responsible for conformance to all applicable codes.
No responsibility is assumed by Veris Industries for any consequences arising out of the
use of this material.
Z202882-0U Page 1 of 4
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Aerospond, Veris, and the Veris 'V' logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.

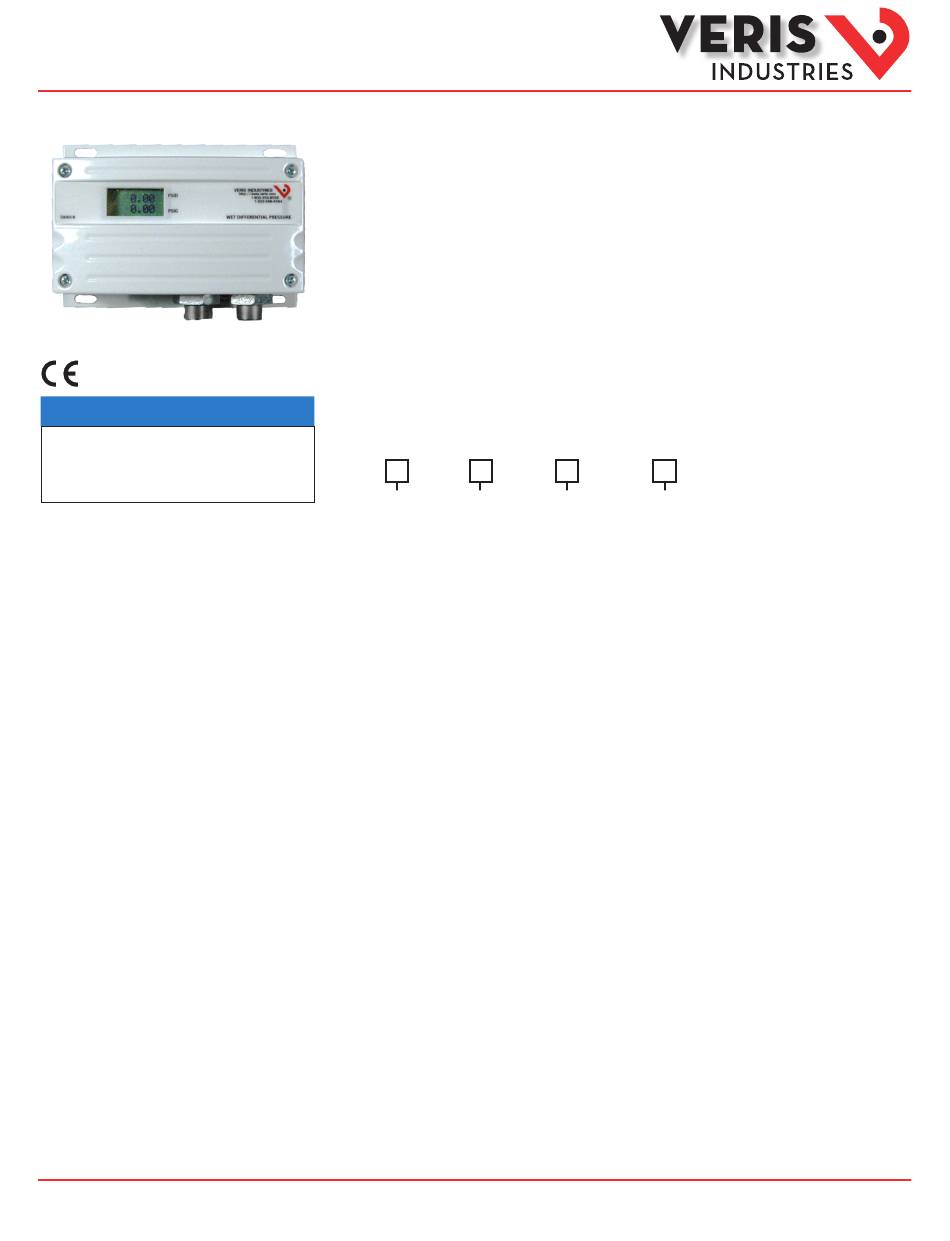

Wet Media Differential Pressure Transducer
Product Overview
The PW Series pressure transducer measures the differential pressure across pumps, filters, heat exchangers, and
other non-corrosive wet media. Several operational pressure ranges are available, and the analog output is user
selectable (4-20 mA, 0-5 V, or 0-10 V). PW Series devices are warranted to meet accuracy specifications for a period
of five years.
Product Identification
Local Display
PW
L = LCD Display
X = No Display
Select operational range according to maximum gauge pressure, NOT differential pressure.
1
Example: High gauge pressure=90 psig, Select 100 psig model (04).
barg models use BSPT threads on sensor fittings.
2
Not available with barg units.
3
©2013 Veris Industries
Other companies' trademarks are hereby acknowledged to belong to their respective owners.
PW Series
NIST
Operational Range 1 US or EU
N = NIST 03 = 0-50 psig
X = None 04 = 0-100 psig
05 = 0-250 psig
06 = 0-3.5 barg
2
07 = 0-7.0 barg
2
08 = 0-17 barg
2
S = Standard 3
C = CE
TM
06131
