User & installation manual

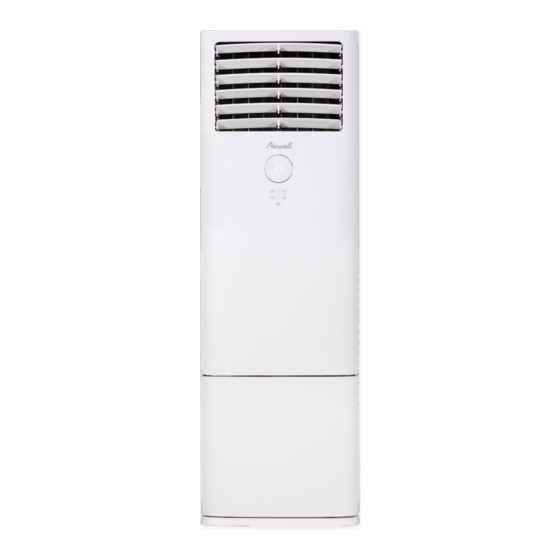

Floor Standing Type air conditioner
SDMX R32
Multilingual Manual
(English - French - Português - Español)
IMPORTANT NOTE:
Read this manual carefully before installing or operating your new air conditioning unit. Make sure to
save this manual for future reference.
21.AW.SDMX.048.R32.UM+IM.EN.FR.SP.POR.08.17.Rev01
Advertisement
Table of Contents
Related Manuals for Airwell SDMX R32
Summary of Contents for Airwell SDMX R32
- Page 1 User & installation manual Floor Standing Type air conditioner SDMX R32 Multilingual Manual (English - French - Português - Español) IMPORTANT NOTE: Read this manual carefully before installing or operating your new air conditioning unit. Make sure to save this manual for future reference.
- Page 2 User & Installation Manual Floor Standing Type air conditioner SDMX R32 English Manual IMPORTANT NOTE: Read this manual carefully before installing or operating your new air conditioning unit. Make sure to save this manual for future reference. 21.AW.SDMX.048.R32.UM+IM.EN.FR.SP.POR.08.17.Rev01...
-
Page 3: Table Of Contents
Table of Contents Safety Precautions ................04 Owner s Manual ’ Unit Specifications and Features ............08 1. Unit Parts ..................................08 2. Operating temperature...............................08 3. features ....................................09 Manual Operations ..............10 Care and Maintenance ..............13 Troubleshooting ................15... - Page 4 Installation Manual Accessories ..................18 Installation Summary ..............19 Unit Parts ..................20 Indoor Unit Installation ...............21 1. Select installation location ............................21 2. Unfastening the operation panel and detaching the filter................22 3. Remove the fasteners from the roller ........................22 4. Fastening the indoor unit ............................22 5.
-
Page 5: Safety Precautions
Safety Precautions Read Safety Precautions Before Operation and Installation Incorrect installation due to ignoring instructions can cause serious damage or injury. The seriousness of potential damage or injuries is classified as either a WARNING or CAUTION. WARNING CAUTION This symbol indicates the possibility This symbol indicates the possibility of of personnel injury or loss of life. - Page 6 CLEANING AND MAINTENANCE WARNINGS • Turn off the device and disconnect the power before cleaning. Failure to do so can cause electrical shock. • Do not clean the air conditioner with excessive amounts of water. Do not clean the air conditioner with combustible cleaning agents. Combustible cleaning agents •...
-
Page 7: Owner S Manual
WARNINGS FOR PRODUCT INSTALLATION 1. Installation must be performed by an authorized dealer or specialist. Defective installation can cause water leakage, electrical shock, or fire. 2. Installation must be performed according to the installation instructions. Improper installation can cause water leakage, electrical shock, or fire. (In North America,installation must be performed in accordance with the requirement of NEC and CEC by authorized personnel only.) 3. - Page 8 WARNING for Using R32/R290 Refrigerant When flammable refrigerant are employed, appliance shall be stored in a well -ventilated area where the room size corresponds to the room area as specifiec for operation. For R32 frigerant models: Appliance shall be installed, operated and stored in a room with a floor area larger than X m²...
-
Page 9: Unit Specifications And Features
Unit Specifications and Features Unit Parts Air outlet Display panel Air inlet Operating temperature When your air conditioner is used outside of the following temperature ranges, certain safety protection features may activate and cause the unit to disable. Inverter Split Type FOR OUTDOOR UNITS COOL mode HEAT mode... -
Page 10: Features
NOTE: Room relative humidity less than 80%. If the air conditioner operates in excess of this figure, the surface of the air conditioner may attract condensation. Please sets the vertical air flow louver to its maximum angle (vertically to the floor), and set HIGH fan mode. To further optimize the performance of your unit, do the follow ing: •... -
Page 11: Manual Operations
Manual Operations The display panel on the indoor unit can be used to operate the unit in cases when the remote control has been misplaced or is out of batteries. Auto operation Cooling operation Room Temp/Set Temp/Set Timer Dry operation display Heating operation Fan speed... - Page 12 Avoid button: 1. In any mode of boot, press the button to turn on the function. 2. Press “ ” , “ ”, “ ” close this function. Pow er button: Operation starts when this button is pressed and stops when you press the button again.
- Page 13 LOCK FEATURE: The lock feature is activated by pressing down and holding the fan speed and swing buttons simultaneously for a period of one second. This feature is available both when the unit is turned on or off. The first time these buttons are pressed, the unit locks and all other buttons on the unit are disabled (apart from the unlock button).
-
Page 14: Care And Maintenance
Care and Maintenance Cleaning Your Indoor Unit BEFORE CLEANING OR MAINTENANCE ALWAYS TURN OFF YOUR AIR CONDITIONER SYSTEM AND DISCONNECT ITS POWER SUPPLY BEFORE CLEANING OR MAINTENANCE. CAUTION Only use a soft, dry cloth to wipe the unit clean. If the unit is especially dirty, you can use a cloth soaked in warm water to wipe it clean. - Page 15 Maintenance – CAUTION Long Periods of Non-Use • Before changing the filter or cleaning, If you plan not to use your air conditioner for an turn off the unit and disconnect its power extended period of time, do the following: supply.
-
Page 16: Troubleshooting
Troubleshooting SAFETY PRECAUTIONS If any of the following conditions occurs, turn off your unit immediately! • The power cord is damaged or abnormally warm • You smell a burning odor • The unit emits loud or abnormal sounds • A power fuse blows or the circuit breaker frequently trips •... - Page 17 Issue Possible Causes The outdoor unit The unit will make different sounds based on its current operating mode. makes noises Dust is emitted from The unit may accumulate dust during extended periods of non-use, which will be either the indoor or emitted when the unit is turned on.
- Page 18 Problem Possible Causes Solution Wait for the power to be restored Power failure The power is turned off Turn on the power The unit is not The fuse is burned out Replace the fuse working Replace batteries Remote control batteries are dead The Unit’...
-
Page 19: Accessories
Accessories The air conditioning system comes with the following accessories. Use all of the installation parts and accessories to install the air conditioner. Improper installation may result in water leakage, electrical shock and fire, or cause the equipment to fail. The items are not included with the air conditioner must be purchased separately. -
Page 20: Installation Summary
Installation Summary - Indoor Unit INSTALLATION ORDER Install the indoor unit Install the outdoor unit Connect the refrigerant pipes Perform a test run Evacuate the refrigeration system Connect the w ires Page 19... -
Page 21: Unit Parts
Unit Parts Outdoor unit A Outdoor unit B Outdoor unit Indoor unit Air outlet Drain pipe, vent pipe Operation panel Connection cable Horizontal airflow control louver Connection pipe Vertical airflow control louver Refrigerant pipe port Air inlet(2 sides) Air outlet NOTE ON ILLUSTRATIONS Illustrations in this manual are for explanatory purposes. -
Page 22: Indoor Unit Installation
Indoor Unit Installation Installation Instructions – Indoor unit NOTE ABOUT WALL HOLE: If there is no fixed refrigerant piping: PRIOR TO INSTALLATION While choosing a location, be aware that you should leave ample room for a wall hole (see Before installing the indoor unit, refer to the label on the product box to make sure that the Drill wall hole for connective piping step) model number of the indoor unit matches the... -
Page 23: Unfastening The Operation Panel And Detaching The Filter
Step 2: Unfastening the operation panel Step 3. Remove the fasteners from the roller and detaching the filter (only found on selected models) Check to see whether the roller on the indoor Open the packaging and take out the indoor unit has any fasteners holding it in place and unit. -
Page 24: Piping And Binding
Use a knife to cut a small hole by following the Pipe/wire-hole position on back side markings on the ratproof board. Insert the ratproof board into the unit and hold it in place tightly. Then attach the ratproof board into the hole Refrigerant/drain Markings Pipe hole... -
Page 25: Drill Wall Hole For Connective Piping
Step 8: Drill wall hole for connective piping NOTE ON PURCHASING PIPES Determine the location of the wall hole This installation requires a polyethylene tube based on the location of the outdoor unit. (outside diameter = 3.7-3.9cm, inside diameter = 3.2cm), which can be obtained at your local Using a 65-mm (2.5”) core drill, drill a hole in hardware store or from your dealer. -
Page 26: Outdoor Unit Installation
Outdoor Unit Installation Install the unit by following local codes and install unit in the following locations: DO NOT regulations , there may be differ slightly Near an obstacle that will block air inlets between different regions. and outlets Near a public street, crowded areas, or where noise from the unit will disturb others Near animals or plants that will be harmed by hot air discharge... -
Page 27: Install Drain Joint
Step 2: Install drain joint (Heat pump IN COLD CLIMATES unit only) In cold climates, make sure that the drain Before bolting the outdoor unit in place, you hose is as vertical as possible to ensure must install the drain joint at the bottom of swift water drainage. -
Page 28: Refrigerant Piping Connection
Refrigerant Piping Connection When connecting refrigerant piping, do not let substances or gases other than the specified refrigerant enter the unit. The presence of other gases or substances will lower the unit’ s capacity, and can cause abnormally high pressure in the refrigeration cycle. -
Page 29: Note On Pipe Length
Note on Pipe Length Ensure that the length of the refrigerant pipe, the number of bends, and the drop height between the indoor and outdoor units meets the requirements shown in the following table : The Maximum Length And Drop Height Based on Models. (Unit: m/ft.) Type of model Capacity (Btu/ h) Length of piping... -
Page 30: Flare Pipe Ends
Step 4: Connect pipes Step 3: Flare pipe ends Proper flaring is essential to achieve an airtight Connect the copper pipes to the indoor unit first, seal. then connect it to the outdoor unit. You should After removing burrs from cut pipe, seal first connect the low-pressure pipe, then the the ends with PVC tape to prevent foreign high-pressure pipe. -
Page 31: Wiring
NOTE: DO NOT intertwine signal cable with NOTES ON M INIM UM BEND RADIUS other wires. While bundling these items Carefully bend the tubing in the middle together, do not intertwine or cross the signal according to the diagram below. DO NOT cable with any other wiring. - Page 32 Air switch (purchased seperately) 9. Every wire must be firmly connected. Loose wiring can cause the terminal to overheat, Indoor & Outdoor Outdoor unit power wires resulting in product malfunction and possible fire. connective wires (purchased seperately) Do not let wires touch or rest against refrigerant tubing, the compressor, or any moving parts Outdoor unit within the unit.
-
Page 33: Outdoor Uint Wiring
Outdoor Unit Wiring Cover WARNING Screw Before performing any electrical or wiring work, turn off the main power to the system. 1. Prepare the cable for connection a. You must first choose the right cable size. Be sure to use H07RN-F cables. 8 Screws Outdoor Unit A Minimum Cross-Sectional Area of... -
Page 34: Air Evacuation
Air Evacuation If there is a change in system pressure, refer Preparations and Precautions to Gas Leak Check section for information Air and foreign matter in the refrigerant circuit can on how to check for leaks. If there is no change in system pressure, unscrew the cap cause abnormal rises in pressure, which can damage the air conditioner, reduce its efficiency, and cause... -
Page 35: Note On Adding Refrigerant
Note on Adding Refrigerant Some systems require additional charging depending on pipe lengths. The standard pipe length varies according to local regulations. For example, in North America, the standard pipe length is 7.5m (25’). In other areas, the standard pipe length is 5m (16‘). The refrigerant should be charged from the service port on the outdoor unit’... -
Page 36: Test Run
Test Run f. Check to see that the drainage system is Before Test Run unimpeded and draining smoothly. A test run must be performed after the entire g. Ensure there is no vibration or abnormal system has been completely installed. Confirm noise during operation.
