PASCO PASPORT PS-2104 Quick Start Manual

PASCO PASPORT PS-2104 Quick Start Manual

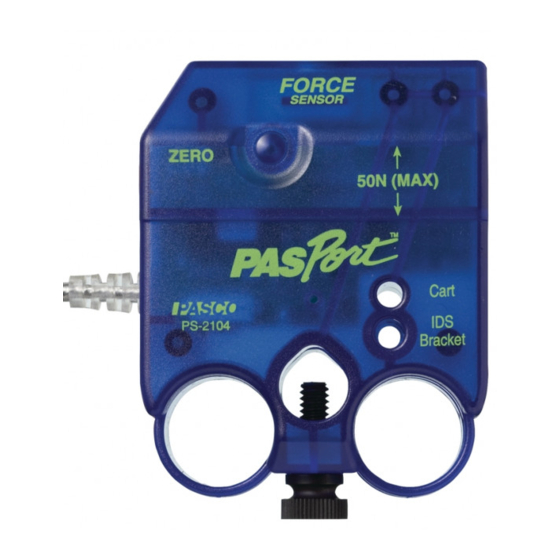

Force sensor

Advertisement

Quick Links

Force
Sensor
PS-2104
Built-in thumbscrew
for mounting on a
support rod
Sensor Specifications
Sensor Range:
±50 newtons (N)
Accuracy:
1 %
Resolution:
0.03 newtons (N)
Max. Sample Rate:
1,000 sps
Default Sample Rate:
10 sps
Over-limit Protection:
Prevents damage from forces greater
than 50 N
ZERO Button:
Tares the output to zero newtons before
each use. Always tare with the sensor in
the orientation used during the experiment.
®
800-772-8700 • 916-786-3800 • techsupp@pasco.com •
Apply force here

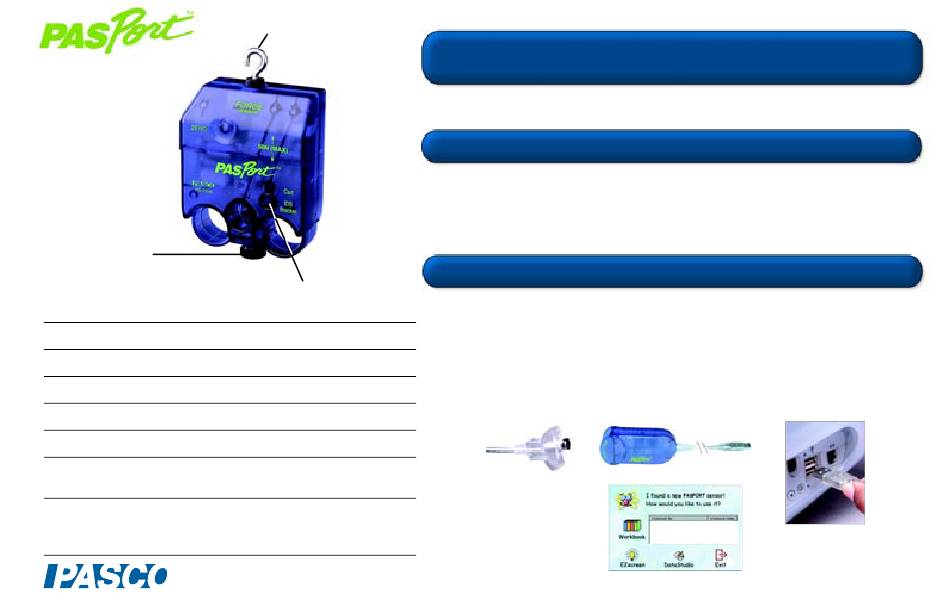

F o r c e Q u i c k S t a r t
A d d i t i o n a l E q u i p m e n t N e e d e d
Holes for mounting
E q u i p m e n t S e t u p
to a cart or an
accessory bracket
1. Connect the PASPORT Link Device to a USB port on your computer or USB hub.
2. Connect the sensor plug to a PASPORT Link Device.
3. The software launches when it detects a PASPORT sensor. From the
The PS-2104 Force Sensor measures force in newtons.
PASPORT Link Device (USB Link, Xplorer, etc.)
EZscreen or DataStudio
TM
software (version 1.5 or later)
Hook and rubber bumper attachments (included)
Thumbscrew (included) used to mount on cart or Accessory Bracket (CI-6545)
PASPORTAL screen, select a point of entry:
• an activity in the Workbook window,
• EZscreen, or
• DataStudio.
2
3
1
012-07297D
