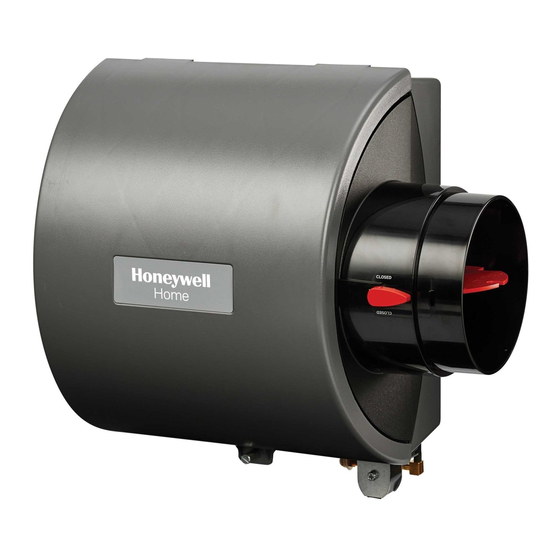

Whole home bypass humidifier
Hide thumbs Also See for HE105:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

HE105, HE205
Whole Home Bypass Humidifier
APPLICATION
This kit contains your new HE105 or HE205 Humidifier,
H6062 Digital Humidity Control and all the accessories
required for installation.
How Your Humidifier Works
Your humidifier uses the principle that vapor (evaporated
water) is created when warm air blows over a water-soaked
area. As the vapor circulates, the relative humidity rises.
Your humidity control monitors the relative humidity and
activates the humidifier accordingly. The humidifier has a
water supply that dispenses water evenly over a humidifier
pad. The warm dry air from the furnace passes over the
humidifier pad and picks up the moist air to circulate it
throughout your home.
Humidified air feels warmer and more comfortable so you
may be able to lower your thermostat heating setpoint,
which saves money on your heating fuel bills. The end
result is that your humidifier gives you a comfortable
environment that is also energy efficient.
Need Help?
For assistance with this product please visit
http://honeywellhome.com or call Customer Care toll-free
at 1-800-468-1502.
Model
length × width × depth
15.16 × 16.57 × 9.47 in.
HE105
(385 × 421 × 240 mm)
18.30 × 17.11 × 9.59 in.
HE205
(465 × 434 × 243 mm)
M36294A
Table 1. Specifications.
Size
Duct Opening
9.43 × 9.28 in.
(240 × 236 mm)
12.63 × 9.68 in.
(321 × 246 mm)
INSTALLATION INSTRUCTIONS
PREPARING FOR THE
INSTALLATION
Be sure to identify all the required (Table 1) accessories
(included) and make sure the appropriate tools are
available before beginning the installation.
Included in the box:
• Humidifier
• H6062 Digital Humidity Control
• Transformer
Canadian "C" models also include:
• 6 in. dia. bypass ducting (24 in.)
• 18 gauge thermostat wire (20 ft.)
• 1/4 in. (6.35 mm) OD feed water tubing (20 ft.)
• 1/2 in. (12.7 mm) ID drain tubing (10 ft.)
• Saddle valve
Required Tools
Tools required for installation include:
• Tin snip
• Screwdriver
• Pliers
• Adjustable or open-end wrench
• Drill
• Level
• 3/4 in. (19 mm) sheet metal drill bit
SPECIFICATIONS
Model specific specifications are shown in Table 1.
Operating Ambient Temperature: 41 to 113 °F (5 to 45 °C)
Power Supply: 24 VAC / 60 Hz.
Power Consumption: 7 Watts with 24 Vrms
Water Pressure: 40 to 120 psi.
Orifice Output: .02 in. (0.5 mm)
Flow Rate at Nozzle: 4.7 GPH (18 L/hr.) under 120 psi
H × W
10 × 9.5 × 1.5 in.
(254 × 241 × 38.1 mm)
13.125 × 10 × 1.5 in.
(333 × 254 × 38.1 mm)
Evaporation
Pad Size
Output
12 GPD
17 GPD
33-00229EF-05
