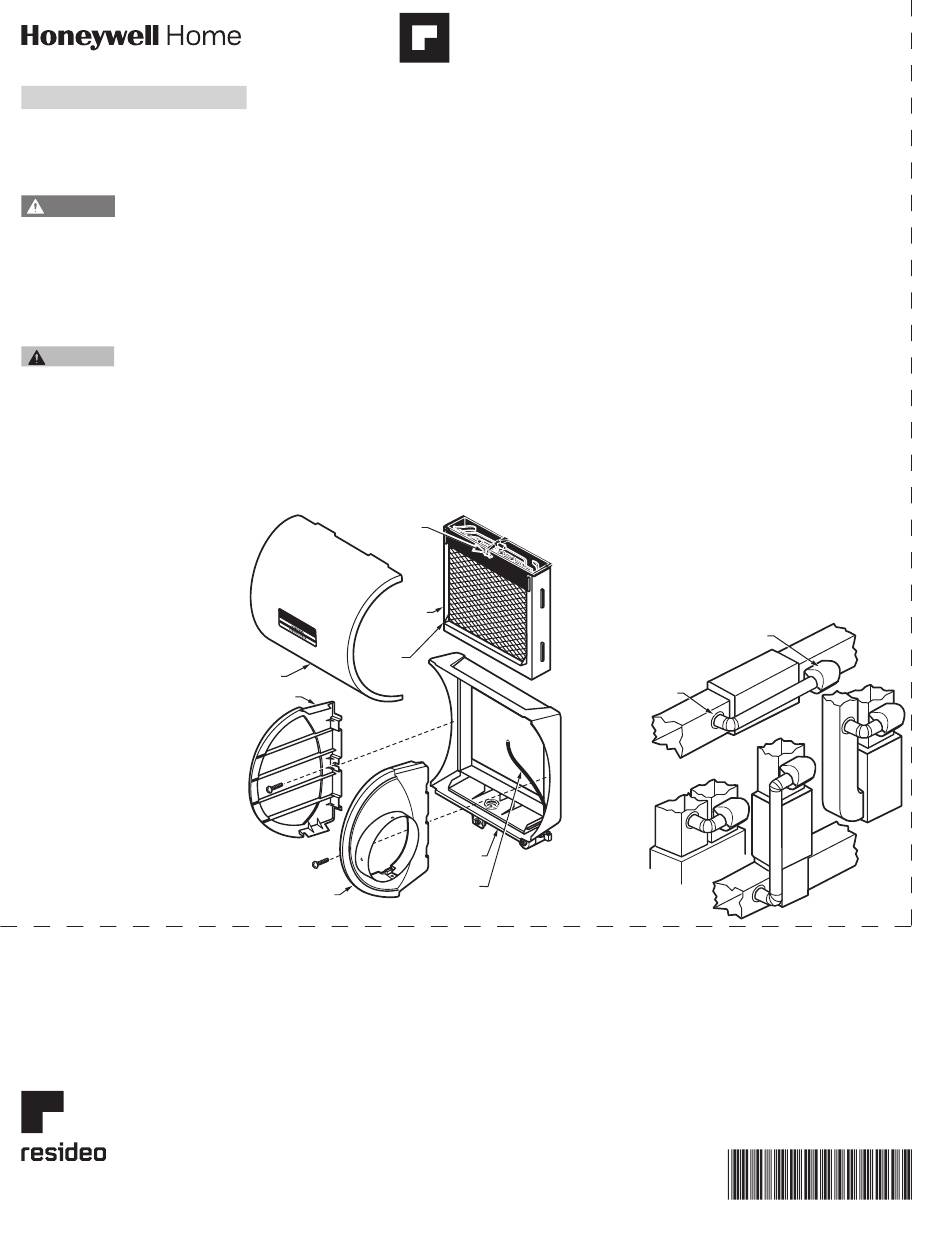

QUICK START GUIDE

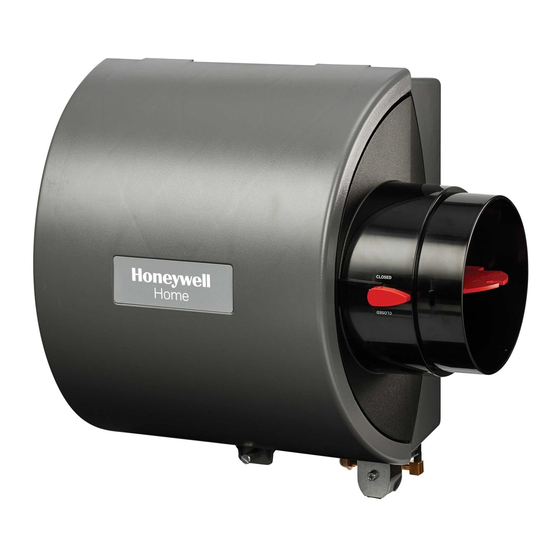

HE105, HE205 Humidifier
This Quick Start Guide is sized to serve as a duct template for the HE205.
Cut along the dashed line to create a duct template for the HE105.
PMS 144
WARNING
Personal Injury Hazard
Can cause electrical shock and injury
CAUTION
PMS 108
from moving parts.
Disconnect power and shut off water
supply before removing cover.
DANGER
PMS 185
Hazardous Voltage
Can cause personal injury or equipment
NOTICE
PMS 299
damage.
Do not cut or drill into any air
PMS 144
WARNING
conditioning or electrical accessory.
PMS 108
CAUTION
Chemical Hazard
Can cause personal injury or equipment
PMS 185
DANGER
damage.
Do not use any line connected to an air
conditioner.
NOTICE
PMS 299
Do not use gas line.
Temperature and Static Pressure
Hazard
Can cause property or equipment
damage.
Locate humidifier where ambient
temperature is between 41 and 113 °F
(5 to 45 °C).
Do not install humidifier where freezing
temperatures could occur.
Be sure supply plenum static pressure
is no greater than 0.4 in. wc and water
pressure is no greater than 120 psi.
Sharp Edges Installation Hazard
Can cause personal injury.
Wear gloves and safety glasses.
Resideo Inc., 1985 Douglas Drive North
Golden Valley, MN 55422
www.resideo.com
33-00210—05 M.S. Rev. 06-22 | Printed in United States
© 2022 Resideo Technologies, Inc. All rights reserved.
The Honeywell Home trademark is used under license from Honeywell International, Inc.
This product is manufactured by Resideo Technologies, Inc. and its affiliates.
Included in the box:
• Humidifier
• H6062 Humidistat
• Transformer
Canadian "C" models also include:
• 6 in. dia. bypass ducting (24 in.)
• 18 gauge thermostat wire (20 ft.)
• 1/4 in. (6.35 mm) OD feed water tubing
(20 ft.)
• 1/2 in. (12.7 mm) ID drain tubing (10 ft.)
• Saddle valve
Tools Required:
• Tin snip
• Screwdriver
• Pliers
• Adjustable or open-end wrench
• Drill
• Level
• 3/4 in. (19 mm) sheet metal drill bit
WATER
FEED NOZZLE
HUMIDIFIER
PAD ASSEMBLY
FRAME
COVER
SIDEWALL
BY-PASS SIDEWALL
Cut along dashed line to create a template for the HE105.
Use the full sheet for the HE205
Installation
1. Turn off power to the air handling
system at the circuit breaker.
2. Draw a level line on the plenum in the
selected location.
IMPORTANT
Be sure the mounting template is level
before marking. Use of a small level is
recommended.
3. Tape the correct template in position
and trace around the template.
4. Remove the template and carefully
cut the opening with tin snips.
5. Disassemble the humidifier; remove
the cover and take out the humidifier
pad assembly.
6. Make sure the humidifier housing is
level, then position it in the opening
so the plastic tabs are in place on
the lower sheet metal edge of the
opening. Use pliers, as necessary, to
flatten cut edges.
7. Secure the humidifier housing to the
opening at the top and bottom using
sheet metal screws.
8. Reassemble humidifier side plates
to customize the orientation for your
specific install. The side plate with
the humidifier port needs to be on
the side of the humidifier that is
closest to the bypass ducting. Be sure
to open the bypass flap for use and
close it when the humidifier is not
used.
HUMIDIFIER
HOUSING
WATER
FEED TUBE
M31022A
9. Slide bypass duct over the humidifier
port on the HE105/HE205, making
sure that the flex duct advances past
the raised plastic tabs on the port.
These tabs will help to hold the flex
duct in place. Verify that the damper
blade has adequate clearance to
move back and forth between the
closed and open positions. Secure
the flex duct in place with the plastic
connector strap.
10. Seal the duct connections with foil
tape. Seal both 1) the connection
between the starter collar end of
the flex duct and the home's duct
work and 2) the end of the flex duct
to the humidifier over the top of the
connector strap.
11. Reinstall the humidifier pad
assembly in the humidifier housing.
12. Hinge the cover in place and secure
with the thumbscrew located at the
bottom of the cover.
13. Turn off water supply and tap into a
water line.
14. Use 1/4 in. O.D. copper tubing and
connect to inlet side of solenoid
valve via a compression fitting or
Resideo Quick Connect fitting.
15. Connect a 1/2 in. (13 mm) drain
tube to the humidifier drain fitting
and run to a suitable drain.
Typical Installation Locations
HUMIDIFIER
L
T A
BYPASS
O N
R I Z
COLLAR
H O
W N
D O
O
F L
O Y
W B
L O
O Y
H B
H I G
M12248D
33-00210-05
