Honeywell Home HE365 Quick Start Manual

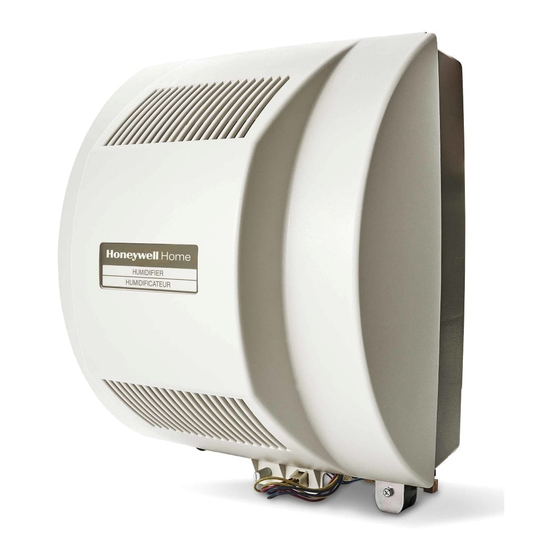

HE365 Powered Flow-Through Humidifier
READ AND SAVE THESE
INSTRUCTIONS

APPLICATION

The HE365 Powered Flow-Through Humidifier works with the
warm air furnace blower to provide humidification for the whole
house. The HE365 works with virtually any Honeywell Home
humidity control.

INSTALLATION

When Installing this Product...
1. Read these instructions carefully. Failure to follow them
could damage the product or cause a hazardous condition.
2. Check the ratings given in the instructions and on the
product to make sure the product is suitable for your
application.
3. Installer must be a trained, experienced service technician.
4. After installation is complete, check out product operation
as provided in these instructions.
CAUTION
Hazardous Voltage.
Improper drilling can cause equipment damage or
personal injury.
Do not cut or drill into any air conditioning or electrical
accessory.
CAUTION
Chemical Hazard.
Can cause personal injury or equipment damage.
Do not use any line connected to an air conditioner.
CAUTION
Freezing Water, Flooding or Static Pressure Hazard.
Can cause water damage or permanent equipment
damage.
• Locate the humidifier where the ambient temperature is
between 32°F (0°C) and 160°F (71°C) or property
damage can occur.
• Do not install humidifier where freezing temperatures
could occur.
• Be sure supply plenum static pressure is no greater
than 0.4 in. wc and water pressure is no greater than
125 psi.
IMPORTANT
Mount the humidifier at least 3 in. (76 mm) above the
furnace jacket to allow adequate space for the drain line.
Check that there is adequate space above the humidifier
to remove and install the humidifier cover. Do not install
on a furnace jacket.
Template (entire sheet) Top of Humidifier
1. Determine the best location for the humidifier and draw a
level line on the plenum. See Fig. 1 and 2.
IMPORTANT
To assure optimal product performance, be sure the
template is level before marking.
2. Tape this piece of paper in position as your template and
trace around the template.
3. Remove the template and carefully cut the rectangular
opening.
4. Loosen the thumbscrew on the bottom of the humidifier
and remove the cover.
5. Remove the humidifier pad assembly by grasping the top of
the tray and pulling the assembly out of the housing. See
Fig. 3.
6. Position the securing clips as shown in Fig. 4.
T A L
O N
R I Z
H O
R N
T U
R E
R N
T U
R N
R E
T U
R E
W N
D O
O
F L
O Y
W B
L O

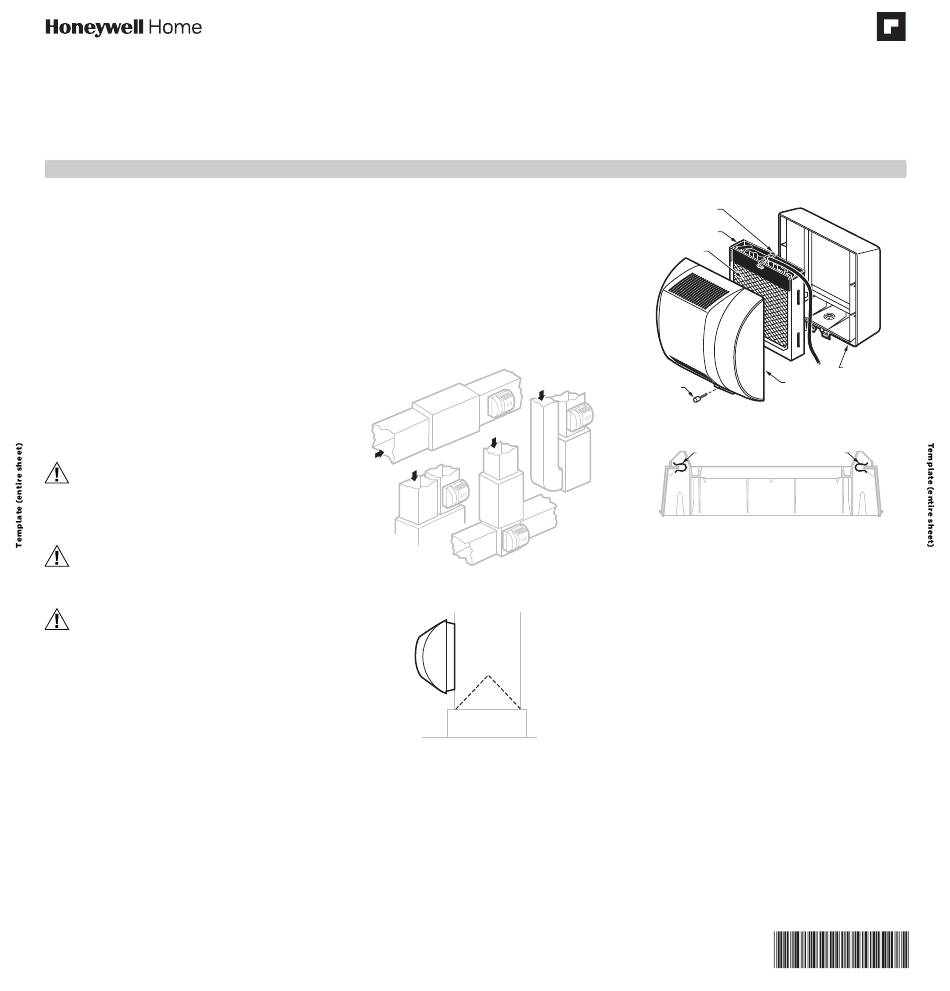

Fig. 1. Typical humidifier installation locations.
M12812C
Fig. 2. HE360 Humidifier location in relation to air conditioning
cooling coils.
Template (entire sheet)
FEED TUBE NOZZLE
WATER
DISTRIBUTION TRAY
HUMIDIFIER
PAD ASSEMBLY
THUMB
R N
T U SCREW
R E
Fig. 3. Humidifier components.
O Y
H B
H I G
CLIP
Fig. 4. Position securing clips.
7. Position the humidifier housing in the hole (be sure it is
M12808C
level), so the locking tabs are in place on the upper and
lower sheet metal edge of the hole.
8. Push in securing clips until completely seated.
9. Drill holes and install the three sheet metal screws at the
top of the humidifier housing. Secure the housing with the
three remaining screws.
10. Reinstall the humidifier pad assembly in the humidifier
housing.
IMPORTANT
For proper operation, be sure the mark on the end of the
humidifier pad is facing up. Check that the water feed
tube is placed in the guide slots of the humidifier housing.
11. Hook the top of the cover to the housing and secure with the
thumbscrew located at the bottom of the cover.

INSTALLATION INSTRUCTIONS

HUMIDIFIER
HOUSING
COVER
ASSEMBLY
M31023A
TOP VIEW – HUMIDIFIER HOUSING
CLIP
M12813B
33-00511-03
