DUCT
TAPE

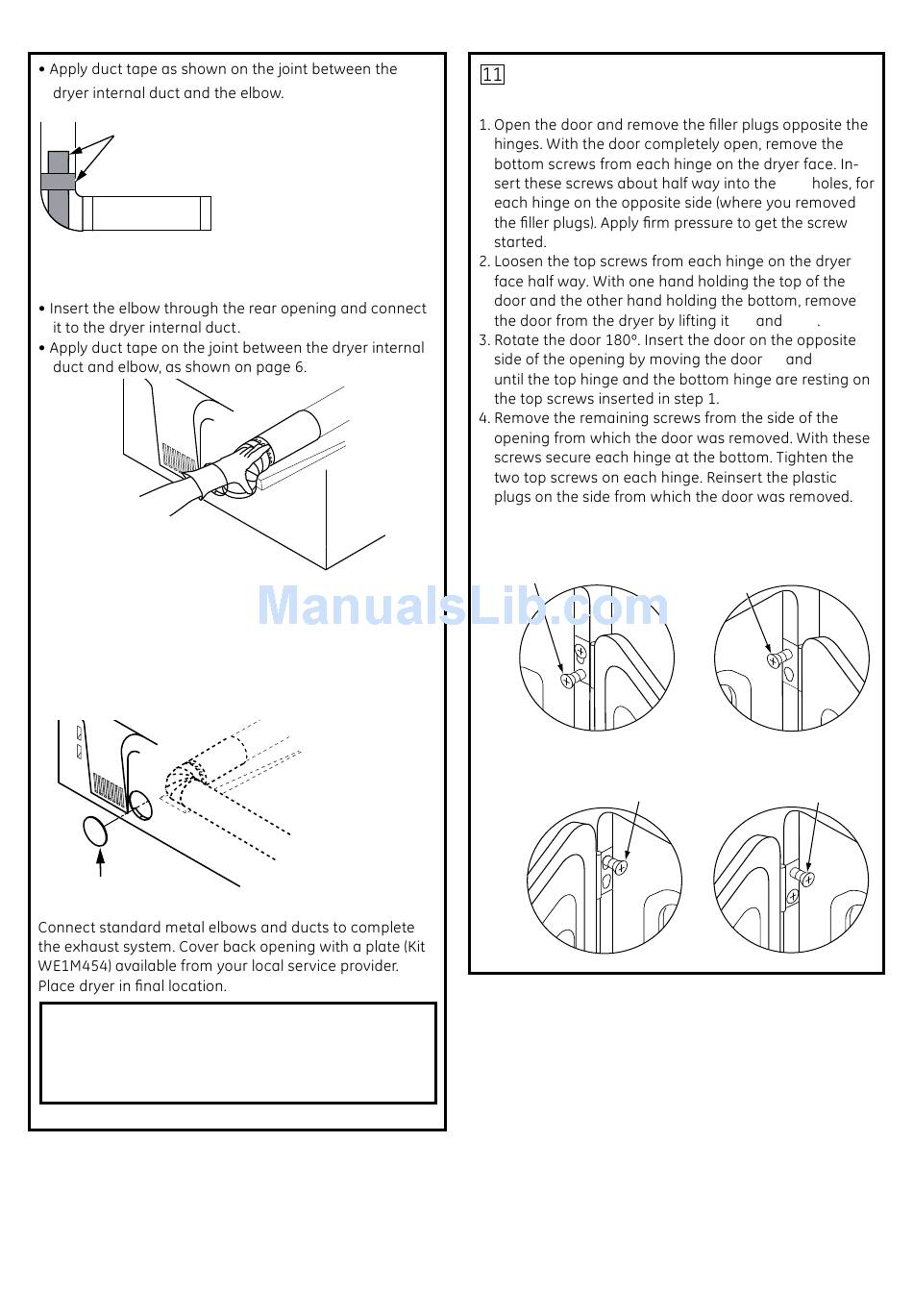

ADDING ELBOW FOR EXHAUST
THROUGH BOTTOM OF CABINET
CAUTION:
Internal duct joints must be secured with tape,
otherwise they may separate and cause a
safety hazard.
ADDING COVER PLATE TO REAR
OF CABINET (SIDES AND BOTTOM
EXHAUST)
PL ATE
(KIT WE1M454)
WARNING-
NEVER LEAVE THE BACK
OPENING WITHOUT THE PLATE. (Kit
WE1M454)
Installation Instructions
CAUTION:
Internal duct joints must be
secured with tape, otherwise
they may separate and cause
a safety hazard.
CHANGING DIRECTION OF
DOOR OPENING
REMOVE THE
BOTTOM SCREW
FROM EACH HINGE
ON THE DRYER FACE
MOVE THE DOOR IN AND
DOWN UNTIL THE TOP HINGE
AND THE BOTTOM HINGES ARE
RESTING ON THE TOP SREWS
INSERTED IN STEP 1
7
TOP
UP
OUT
IN
DOWN
LOOSEN THE TOP SCREWS
FROM EACH HINGE ON
THE DRYER FACE
HALF WAY
SECURE EACH HINGE
AT THE BOTTOM AND
TIGHTEN THE TWO TOP
SCREWS OF EACH HINGE
