GTDN500EM
GE
7.0 cu. ft. stainless steel capacity electric dryer with Sensor Dry
®

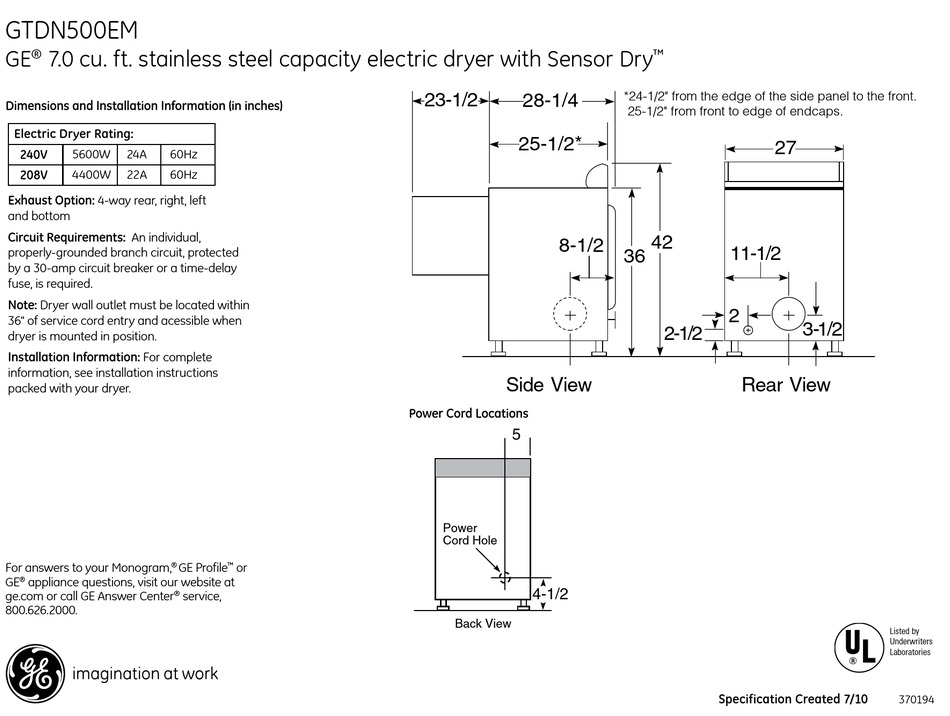

Dimensions and Installation Information (in inches)
Electric Dryer Rating:
240V
5600W
24A
60Hz
208V
4400W
22A
60Hz
Exhaust Option: 4-way rear, right, left
and bottom
Circuit Requirements: An individual,
properly-grounded branch circuit, protected
by a 30-amp circuit breaker or a time-delay
fuse, is required.
Note: Dryer wall outlet must be located within
36" of service cord entry and acessible when
dryer is mounted in position.
Installation Information: For complete
information, see installation instructions
packed with your dryer.
For answers to your Monogram,
GE Profile
®
GE
®
appliance questions, visit our website at
ge.com or call GE Answer Center
®
800.626.2000.
5.7 cu. ft. Dryers
2
Power
Cord Hole
30-1/2
or
service,
Back View
23-1/2
28-1/4
25-1/2*
8-1/2
Side View
5.8, 6.0 and 7.0 cu. ft. Dryers
Power Cord Locations
5
Washer/Dryers SC QSart
Power
Cord Hole
4-1/2
Back View
*24-1/2" from the edge of the side panel to the front.
25-1/2" from front to edge of endcaps.
27
42
11-1/2
36
2
2-1/2

Rear View

Specification Created 7/10
3-1/2
Listed by
Underwriters
Laboratories
370194
