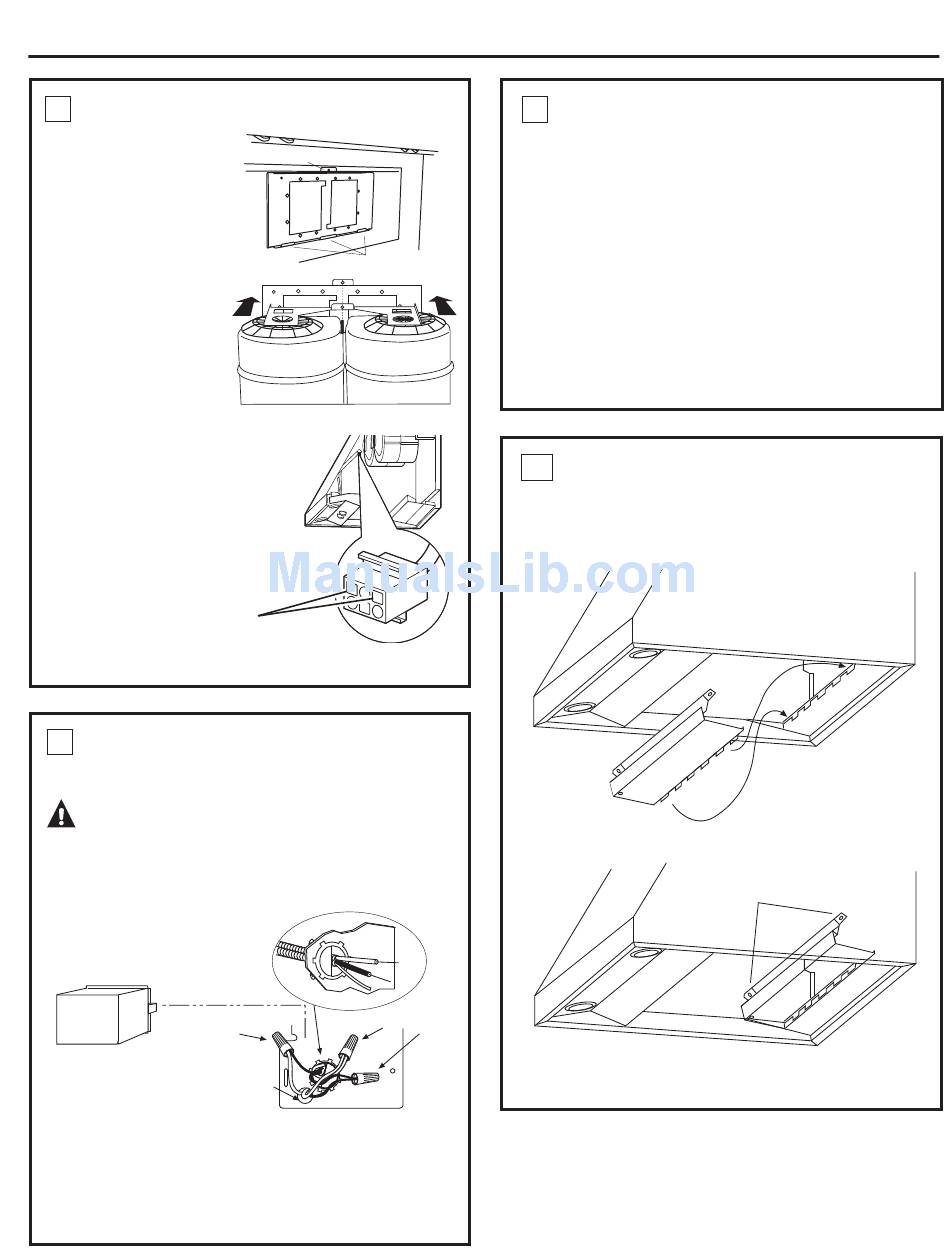

7 INSTALL MOTOR
• Align and engage the
slots in the blower
assembly to the 3 hooks
at the rear of the
exhaust opening.
• Rotate motor upwards
until it aligns with the
attachment screw
location.
• Secure the motor to
attachment bracket
at the front of the
opening with washer
and screw provided.
• Plug the motor connector into
the mating hood connector. See
the illustration for the hood
connector location. Touch the
hood to locate and make the
connection.
IMPORTANT: Hold the
connector so the two square
corner terminals are at the top as you
position the connector to plug it in.
8 CONNECT ELECTRICAL
Verify that power is turned off at the source.
WARNING:
2-wire with a ground wire, a ground must be provided
by the installer. When house wiring is aluminum, be
sure to use U.L. approved anti-oxidant compound
and aluminum-to-copper connectors.
A
Remove C
Insert Power
Junction Box
Conduit Thru
Cover
Strain Relief
and Tighten
Ground
B
Check That White, Black and
Green Hood Wires Are Threaded
Thru Small Hole in Bracket
D
Use UL Listed Wire Nuts
• Use wire nuts to connect incoming ground to green,
white to white and black to black.
• Push wires into junction box and replace cover.
Be sure wires are not pinched.
Installation Instructions
Motor Attachment Bracket
Motor Hooks
If house wiring is not
White
Black

9 INSTALL DUCT COVERS

"
To install the 12 duct cover alone:
"
• Place the 12 section of the decorative duct cover on
top of the hood.
• Secure the cover to the top of the hood with 4 screws
provided.
To install the 2-piece duct cover:
• Place the 2-piece duct cover on top of the hood.
• Secure the bottom cover to the top of the hood with
4 screws provided. See illustration, page 16.
• Extend the inside section upwards to meet the
ceiling and ceiling bracket.
• Secure the duct cover to the bracket with the 2 small
Phillips screws provided.
10 INSTALL FILTER SUPPORT
• Tip filter support into the rear of the hood.
• Insert support tabs into the slots at the rear of
the hood.
• Secure the support to the hood with screws as shown.
17
Insert Tabs Into Slots
Install 2 Screws
