- Page 1 Original instructions in English OPERATING INSTRUCTIONS BMC-335EHY/GHY VERSION 2.9...
-
Page 2: Inspection Comments
Inspection comments Inspection before initial operation on: __________________________________________ __________________________________________ Date of initial operation: __________________________________________ Serial number & Year of manufacture: __________________________ _____________ Recurring inspections / maintenance log Date / Hour counter Findings Repairs / Cleaning Test *Competent person... -
Page 3: Table Of Contents
Checkpoints of electrical safety (EHY-version) Checkpoints of diesel engine safety (GHY-version) Manual moving of the machine Mounting the diamond blades Removing the diamond blades Control device BMC-335EHY Control device BMC-335GHY 5. Operating Before starting up Starting up the machine (EHY-version) -
Page 4: Introduction

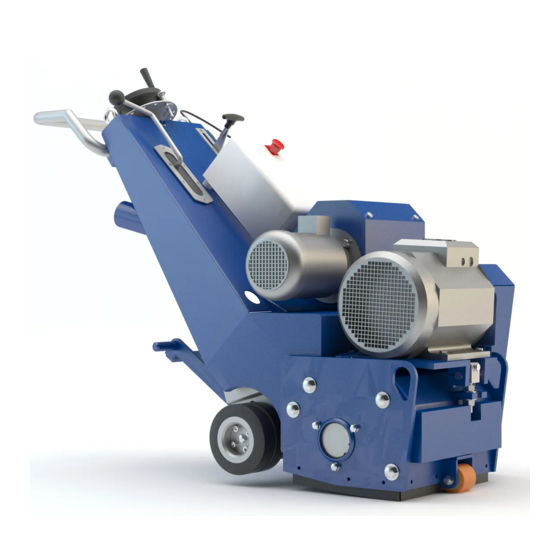

2. Machine description The Blastrac multisaw machine BMC-335 can be supplied with a 400 Volt electric motor (EHY) or with a combustion engine (GHY), where you can mount a different quantity of saw blades underneath. By changing the pulleys and the belt, the machine can also be used as a scarifier. -
Page 5: Accessories
With a suitable Blastrac dust collector work can be carried out without causing excessive dust in the work area, this raises the life span of the machine and protects the health of the personnel. For the GHY version (Diesel engine) Please read the enclosed OPERATOR’S MANUAL of the diesel engine before operating the machine. -
Page 6: Safety
3. Safety Warning! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire, explosions and / or serious injuries. Only authorized and trained personnel may operate this machine. This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge. -
Page 7: Machine Safety
Electrical cables must be rolled entirely off of the reels. c) Any damage to the electric cables and/or electrical components is not permitted. d) If the power supply cable or plug is damaged, it must be replaced immediately. Only use original Blastrac parts. -
Page 8: Diesel Motor Safety
o) Be careful with water on the treated surface. Electrical cables must not come into contact with water. p) During a long standstill of the machine, pull out the main plug. q) If the machine is to be operated using power from a generator, the generator must be operated in accordance with the current legal regulations and directives in force. - Page 9 Contact with eyes: Immediately flush eyes with cold, fresh water for a minimum of 15 minutes. Seek professional medical attention. k) Do not eat, drink or smoke near the hydraulic oil. HV46 hydraulic oil holds no danger of intoxication. m) The hydraulic oil is stable at normal temperatures for storage, handling and use. However, the hydraulic oil is flammable when exposed to certain conditions.
-
Page 10: Dust Collector Safety
Dust collector safety a) Always use a Blastrac dust collector to ensure a dust-free operation of the machine and clean air at the workspace. Also the airflow helps to cool the machine and prevents overheating. b) Read the operating instructions of the dust collector before using it. - Page 11 p) Never use the machine for lifting persons or items. q) It is possible to transport the machine without the use of the motor by pushing up the treadle (pos. 11, page 5). The drive wheels are declutched of the drive motors now. Make sure that the floor is flat, because the machine is uncontrolled now! It is very dangerous to drive the machine on a grade or ramp when the treadle is in upwards position! Never load or unload the machine on a ramp or incline when the wheels are in the disengage mode.
-
Page 12: Signs On The Machine
3.10 Signs on the machine The following stickers are placed on the machine. Meanings of these symbols are: ! Danger Hazardous voltage in motor Wear a dust mask class FFP3 even when solid state controller is OFF. or higher. Disconnect main power before servicing motor, controller or associated wiring. -
Page 13: Initial Operation
4. Initial operation Before using the machine it is of great importance to inspect the machine. It is not permitted to use the machine if the machine safety is not according the checkpoints below. Checkpoints of electrical safety (EHY-version) Use only extension cables for extending the main cable that are sized and marked in accordance with ... -
Page 14: Manual Moving Of The Machine
Work area Check the surface to be treated for loose parts (stones, screws, etc.) The surface must be swept if necessary. Make sure the machine can travel over all inequalities on the surface. Small inequalities like weld seams or floor joints are no barriers for the machine. Secure the work area around the machine providing an adequate safety distance from the machine. -
Page 15: Mounting The Diamond Blades
Mounting the diamond blades Make sure all moving parts of the machine have come to a complete standstill before mounting the blades. -Pull out the main plug of the machine. -Pull out the key of the deadman’s switch and put it in your pocket. Warning! Always wear Personal Protective Equipment! The dust can be hazardous to the health! - Page 16 Assemble the spacer rings (3) and diamond blades (4) one by one over the axle until the end of the drum. There has to be at least one spacer ring between the diamond blades. NOTE: 80 sawing blades is always the maximum allowed amount of blades on the drum for EHY 54 sawing blades is always the maximum allowed amount of blades on the drum for GHY BMC-335 EHY BMC-335 GHY...
-
Page 17: Removing The Diamond Blades
Removing the diamond blades Pull out the main plug and the key of the deadman’s switch. (EHY-version) Push the control lever all the way to the "Stop" position. (GHY-version) Loosen the bolts of the side plate and remove the side plate (7) ... - Page 18 1. Treadle of drive system It is possible to transport the machine without the use of the motor by pushing up the treadle (1). The drive wheels are declutched of the drive motors now. In the downward position the wheels are engaged to the drive motors.
-
Page 19: Control Device Bmc-335Ghy
4.7 Control device BMC-335 GHY Photo 1. BMC-335 GHY Treadle of drive system Dust collector connection Quick lift lever Handwheel working depth Lifting eye Driving lever Air filter Hydraulic pump housing Diesel motor Ignition lock Speed control lever Position 0 Position I Position II Engine temperature display... - Page 20 Treadle of drive system It is possible to transport the machine without the use of the motor by pushing up the treadle (1). The drive wheels are declutched of the drive motors now. In the downward position the wheels are engaged to the drive motors.
-
Page 21: Operating
5. Operating During operating the BMC-335, the following additional safety instructions must be followed closely. Before switching on the machine make sure that no-one can be endangered when the machine starts up. All persons in the proximity of the machine must wear safety glasses with lateral protection as well as safety shoes and ear protection. -
Page 22: Starting Up The Machine (Ghy-Version)
Starting up the machine (GHY version) Turn on the dust collector Check if the treadle (pos. 1 page 19) of the drive system is down, and the driving lever (pos. 6 page 19) is in the neutral position. ... -
Page 23: Operating During Sawing
Operating during sawing Driving in reverse direction while sawing will give a more uniform surface. Driving in forward direction while sawing will allow more speed since it is less hard for the motor. Carry out work in parallel tracks in such a way that the dust hose and electric cable do not become twisted. The next figure shows the recommended working paths leading away from the dust collector. -
Page 24: Switch Off The Machine (Ehy-Version)
Switching off the machine EHY and GHY versions Switch off the machine EHY Pull the quick lift lever up and turn the fine adjustment until the blades do not hit the ground anymore. Push both red buttons on the electrical box. ... - Page 25 Switch off the machine (GHY) Versions from serial number: 25697B (11-2018). There are two options of switching off the machine. First option. Pull the quick lift lever up and turn the fine adjustment until the blades do not hit the ground anymore. ...
- Page 26 Second option. Pull the quick lift lever up and turn the fine adjustment until the blades do not hit the ground anymore. Switch the starting key to position "0", the fuel shut-off valve shuts off the fuel supply to the injection ...
-
Page 27: Refueling The Engine
Refuelling the engine. DANGER Fire hazard from fuel. Leaked or spilled fuel can ignite on hot engine parts and cause serious burn injuries. ▪ Only refuel when the engine is switched off. ▪ Never refuel in the vicinity of open flames or sparks that can cause ignition. ▪... -
Page 28: Checking And Refilling The Engine Oil
Checking and refilling the engine oil Oil quality All brand name oils that satisfy at least the following specification are suitable: ▪ ACEA – B3 / E4 or better ▪ API – CF / CH-4 or better If engine oils of a low quality standard are used, the oil change interval must be reduced from 250 to 150 or from 500 to 250 operating hours depending on the engine specification. - Page 29 CAUTION Danger of later engine damage. Operating the engine with an oil level below the min. mark or above the max. mark can lead to engine damage. When checking the oil level, the engine must be horizontal and have been switched off for a few minutes.
- Page 30 Valid for GHY versions up to serial number: 25697B (11-2018). Checking oil level/adding oil Dipstick Oil refilling container Procedure. Switch off the engine and wait several minutes for the engine oil to collect in the crankcase. engine must but level. Remove contamination on the engine in the area of the dipstick.
-
Page 31: Maintenance
Store the cleaned and dry machine in a dry and humid free room. Protect the motors from moisture, heat, dust and shocks. All repair work must to be done by qualified Blastrac personnel, this to guarantee a safe and reliable machine. -
Page 32: Maintenance Of The Bearings
The quantity of grease should be 5-10 gram. This is equal to 2-6 pumps of grease. Be careful, too much grease is not good for the bearing! Use the grease which is recommended by Blastrac, this is E08729 – bearing grease. This grease is specially made for this kind of application. -
Page 33: Lubrication
Lubrication The observance of our lubrication instructions will protect against premature maintenance and repair work on the machine. Dirt and foreign bodies could considerably reduce the working life of the bearings or other moving parts of the machine. Therefore the lubrication points must be cleaned thoroughly before lubricating. -
Page 34: The Belt Drive
Belt drive The correct belt tension is of utmost importance in order to obtain a perfect power transmission and to reach the usual working life of the belt. Too low or to high tension can cause a premature breakdown of the belt. Excessive belt tension results in damaged bearings. -
Page 35: Rebuild To Scarifier
Rebuild to scarifier The BMC-335 can be rebuilt into a scarifier by changing the drive belt and both pulleys. Part numbers for this modification can be found in the service manual. Remove the belt guard (1) and lower the tension on the belt (3) by loosening the eyebolt (2) then remove the drive belt. -
Page 36: Diesel Engine Maintenance
Diesel engine maintenance The maintenance points described in this manual are only some highlights taken from the Hatz manual. Read the OWNER’S MANUAL of the Hatz diesel engine for the proper maintenance schedules. The maintenance plan shown below is supplied with the engine. ▪... - Page 37 Maintenance plan The maintenance step/check described on this page, contains only some highlights taken from the Hatz manual. Read the OWNER’S MANUAL of the Hatz diesel engine for the proper maintenance plan. Consult the Hatz diesel engine’s manual before performing maintenance Symbol Maintenance interval Maintenance step/check...
-
Page 38: Troubleshooting
Troubleshooting Fault Possible cause Remedy Excessive vibration Imbalance due to worn or broken tools. Replace all worn or broken parts. or/and Unusual noises Defective bearing. Check the bearing on the axle drive shaft and replace if necessary. Check the tension of the belt, replace Wrong tension of the belt. - Page 39 Charge control indicator stays on, or lights Fault in the alternator or alternator charging circuit. The battery is no longer charged. Eliminate the fault immediately. Consult the Hatz engine manual. Oil pressure display indicator stays on, or Switch off the engine immediately! lights up.
-
Page 40: Technical Data
Ø75 mm Ø75 mm Ø75 mm Design and specifications are subject to change without notice by Blastrac BV IMPORTANT NOTES: Noise and vibration measurements were taken during heavy operation on concrete. The noise and vibration levels depend on the working depth, which is in turn determined by the unevenness of the surface. The impact force of the tools onto the surface is the biggest factor in both noise and vibration levels. - Page 41 Despite the fact that this guide is made with care, Blastrac takes no liability for errors in the manual and the possible consequences. We are naturally very interested in your findings and additions. No part of this publication may be reproduced...
