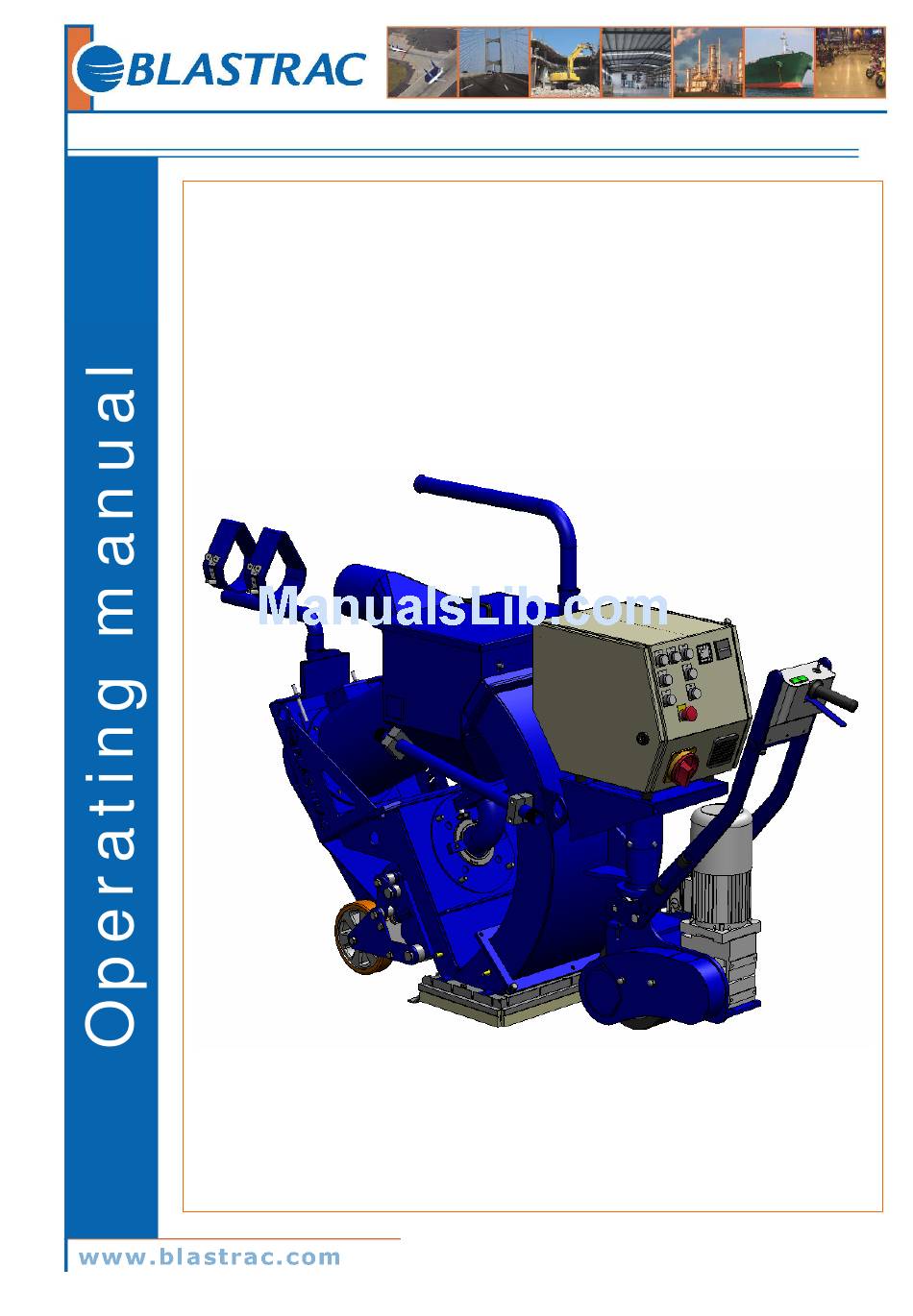

- Page 1 Operating manual 1-15DS Global 1-15DS Global Version 1.0 info@blastrac.eu...
-
Page 2: Ec Declaration Of Conformity
In case of changes to the machine without our written authorization this declaration loses its validity. Model: BLASTRAC 1-15DS Global Serial number: ……. 1. satisfies the conditions set out in the Machine Directive (Directive 98/37/EC); Low voltage directive (73/23/CEE, as last amended; EMC directive 89/336/CEE, as last amended) 2. -
Page 3: Table Of Contents
EC Declaration of Conformity 1. Introduction 2. Machine description 3. Safety Safety precautions Safety regulations Safety instructions 4. Initial operation Checkpoints of power supply Checkpoints of machine 5. Operating 6. Maintenance 7. Selection of abrasive 8. Technical data Contact info@blastrac.eu... -
Page 4: Introduction
Only authorized and trained personnel may operate this machine. 2. Machine description The Blastrac blast cleaning machine 1-15DS Global is a downward blasting machine with a closed abrasive circuit designed for the pre-treatment of horizontal surfaces. The bouncing impact of metallic abrasive onto the surface to be treated thoroughly removes surface contaminants, coats of paint, sealants and thin coatings. -
Page 5: Safety
Pull out the main plug during inspections and repairing on the machine. Never operate the machine when workplace is wet. Never stay in the rain with the machine. info@blastrac.eu... -
Page 6: Safety Instructions
The weight of the 1-15DS Global is 450 kg. By transport the machine with a crane or lift, use the lifting eyes of the machine. Pay attention that the drive unit do not turn away during lifting the machine. info@blastrac.eu... -
Page 7: Initial Operation
No loose bolts and nuts permitted No any damage of electrical components permitted. Dust hose must be undamaged and the connection must be reliable. Check de parts of the separator on wear and defects. Remove foreign bodies and dust deposits. info@blastrac.eu... -
Page 8: Operating
Press the red button “Drive OFF” Switch the main switch to position “OFF” Pull out the connector of the main power supply of the machine. Switch off the filter unit. Wait for standstill of all drives before any inspection or maintenance works are started. info@blastrac.eu... -
Page 9: Maintenance
Store the cleaned machine in a dry room. Protect the electrical motor from moisture, heat dust and shocks. Remove the abrasive out of the abrasive storage hopper. All repair work has to be done by qualified Blastrac personnel, this guarantee a save and reliable machine. -
Page 10: Selection Of Abrasive
Media No. 8 should never be used without blending since otherwise the wear in the machine as a whole would increase disproportionately. − removes polyurethane coatings − removes adhesive remnants − removes rubber deposits − penetrates coatings hard to remove − also suitable to be used on steel for extraordinary roughness info@blastrac.eu... -
Page 11: Technical Data
557 mm Height 1120 mm Weight 450 kg 85dBa Noise level (under load) Vibration level 1.9 RMS Allows 13,9 hrs. of working with the mentioned equipment without having to use anti vibration precaution measures. Dust hose Ø150 mm connection info@blastrac.eu... -
Page 12: Contact
Operating manual 1-15DS Global 12/12 HEADQUARTER Blastrac BV The Netherlands Utrechthaven 12 NL - 3433 PN Nieuwegein Tel: 0031 (0)30 601 88 66 Fax: 0031 (0)30 601 83 33 info@blastrac.nl Blastrac United Kingdom Unit 2, Outgang Lane, Dinnington Sheffield, South Yorkshire GB –...
