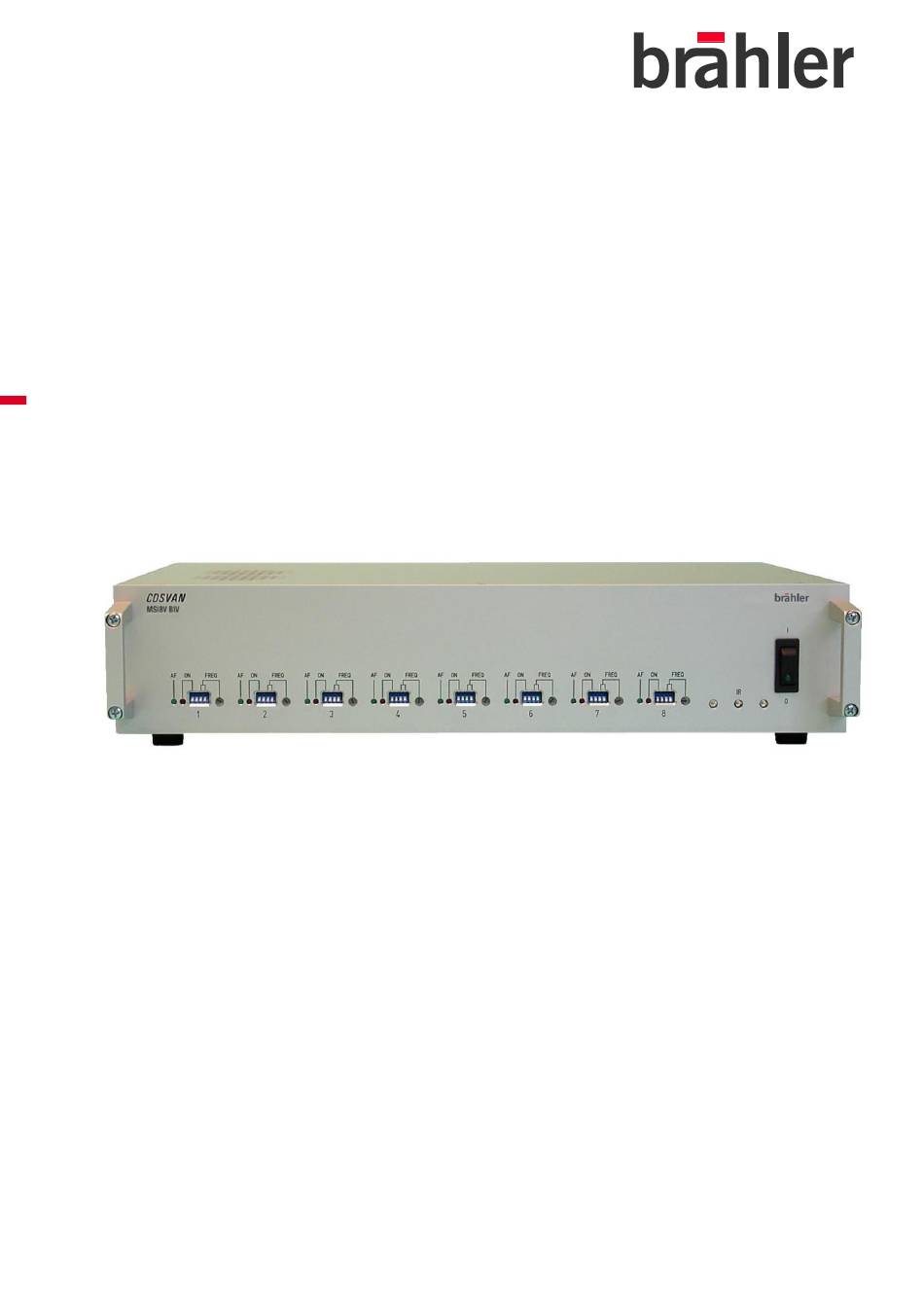

- Page 1 CDSVAN Digital Conference Management System MSI8V B IV Digital Transmitter for band IV Operating instructions Rev 1.3...
- Page 2 BRÄHLER ICS AG, Königswinter All rights reserved, especially (also partly) the translation, reprint, reproduction through copying or other similar methods. BRÄHLER ICS reserves the right to make changes without notice. INFRACOM® and DIGIMIC® are registered trademarks Operating instructions CDSVAN, BGE-MSI8V-BIV (1.x).doc...
-
Page 3: Safety Instructions
CDSVAN MSI8V BIV Safety instructions CAUTION DANGER OF ELECTRIC SHOCK DO NOT OPEN DEVICES Do not open housing with mains cable connected. Maintenance operations may only be executed by qualified personnel. Our equipment and installations have been built and tested according to the latest state of the art. Under normal conditions, they do not require any special maintenance. - Page 4 MSI8V BIV CDSVAN Copyright by Brähler ICS...
-
Page 5: Table Of Contents
CDSVAN MSI8V BIV Content Safety instructions ......................3 About this manual ......................6 Symbols ..........................6 Important remarks ......................7 Important information ......................8 Overview..........................9 System function ........................9 Use ............................9 Compact transmitter MSI8V BAND IV ................10 Controls on the front site .................... -
Page 6: About This Manual
MSI8V BIV CDSVAN About this manual Symbols The following symbols and fonts are used in this manual: Indicates an important note, which has to be followed to guarantee that the functions of the unit, the security of any data or your health are not put at risk... -
Page 7: Important Remarks
BRÄHLER ICS. We recommend using this system for long-term protection and care. General Please keep this manual together with the CDSVAN Compact Transmitter MSI8V Band IV. If you hand on the units to third parties, please include this manual. Copyright by Brähler ICS... -
Page 8: Important Information
MSI8V BIV CDSVAN Please read the manual carefully, taking special care when you see this symbol as it indicates important information! This product is conforming to the rules of the following European directive: 2004/108/EG Council directive to the alignment of the rules of rights of all member states about the electromagnetic compatibility, modified through RL 91/263/EWG, 92/31/EWG and 93/68/EWG of the council. -
Page 9: Overview
CDSVAN MSI8V BIV Overview The Compact Transmitter MSI8V BAND IV is used within the CDSVAN Conference System for transmission of 8 audio channels by infrared light. System function The audio signals are converted into frequency modulated infrared light and then transmitted by means of INFRACOM Radiators IRad, which are directly connected to the MSI8V BAND IV. -
Page 10: Compact Transmitter Msi8V Band Iv
Rear View The Compact Transmitter MSI8V B IV has the following sockets on the rear side: VAN-IN (RJ45 socket) for connecting to the CDSVAN PC (Computer) VAN-LINK (RJ45 socket) for cascading (Audio) with a second MSI8V B IV ... -
Page 11: Controls On The Front Site
CDSVAN MSI8V BIV Controls on the front site The Compact Transmitter has an ex-works mains voltage setting of 90 - 250 Volts by 50 – 60 Hz. If there is another voltage range you must not connect this equipment. In connecting the system, special attention is to be paid to ensure that all cables are installed in cable ducts or that they are fixed by cable clamps or adhesive tape in such a way that there is no danger of somebody tripping over them. -
Page 12: Led Af/On
MSI8V BIV CDSVAN LED AF/ON AF: This LED indicates a signal on this output (for example line 1). ON: This LED represents the ON-status of the corresponding output channel. Remark: Not used channels should be switch off to increase the IR power. -
Page 13: Controls On The Rear Panel
OFF: LINK socket connected with another Compact Transmitter MSI8V BAND IV Connecting the VAN-IN socket RJ45 for the connection to the CDSVAN-PC (transmission of the channels) Connecting the VAN-LINK socket Within a 16 channel system (1+15) the LINK socket can be used to transmit the channels 8 –... -
Page 14: Connecting Line-Out Sockets
CDSVAN Connecting LINE-OUT sockets Eight XLR LINE-OUT connectors (male): All eight channels fed into the MSI8V B IV from the CDSVAN system via CAT5 are available at these connectors, e.g. for audio distribution or recording purposes. Connecting RF-LINK socket BNC socket for cascading further Compact Transmitter MSI8V / BAND IV. To manage more Outputs you can extend the system to more outputs. -
Page 15: Starting Up
The left DIP-switch will activate the corresponding channel. Left DIP switch to ON means channel is active. Once the CDSVAN system has been properly started up and checked, there is usually no need for any further intervention from the operator. -
Page 16: Applications
This diagram shows a complete wiring for a 16 channel (OR + 15) interpreter system. Monitoring part is the Receiver IRX (Band II/IV) together with the IR-Radiator IRad. CDSVAN System Components CDSVAN PC: Including CDSVAN Software and DSP Hardware MSI8V B IV: BAND IV Compact Transmitter ... - Page 17 Two Compact Transmitters MSI8V B IV are linked to one system (16 channels). The monitoring part consists of the Receiver IRX / BAND IV together with the IR-Radiator IRad. CDSVAN System Components CDSVAN PC: including CDSVAN Software and DSP Hardware MSI8V B IV: BAND IV Compact Transmitter ...
- Page 18 This diagram shows a wiring application for a 7 (OR + 6) channel system. Monitoring part is the Receiver IRX II/IV together with the IR-Radiator IRad. CDSVAN System Components CDSVAN PC: including CDSVAN Software and DSP Hardware MSI8V B IV: Compact Transmitter for band IV ...
-
Page 19: Appendix
Technical Data MSI8V Band IV The unit is complying with the international standard IEC914. Connections VAN-IN (1 x RJ45-socket) for connection to the CDSVAN-PC VAN-LINK (1 x RJ45-socket) for cascading (Audio) with a second MSI8V / BAND IV ... -
Page 20: Block Diagram
MSI8V BIV CDSVAN Block diagram General overview of CDSVAN devices DV9 Digital Delegate Unit DDV9 Dual Digital Delegate Unit CDSVAN Computer Remote Systems PSU04 Power Supply Unit DOLV Digital Interpreter Console DSP6 PCI-Card MSI8V Compact Transmitter ® ® IRad (INFRACOM... -
Page 21: Troubleshooting
CDSVAN MSI8V BIV Troubleshooting Error description Error cause Error solution Switching on the system produces The main cable connector is not Check if there is no connection to the no POWER ON condition (green properly connected to the mains power. - Page 22 MSI8V BIV CDSVAN Copyright by Brähler ICS...
-
Page 23: Service Form
Brähler ICS AG Auf der Alten Burg 6 53639 Königswinter, GERMANY T 02244 930-0 F 02244 930-450 sales@braehler.com www.brahler.com SERVICE FORM Material return shipments for repair-, service-, or guaranty purposes please send to: BRÄHLER ICS AG, Auf der Alten Burg 6, 53639 Königswinter, Germany Phone +49 (0)2244 930-0, Fax +49 (0)2244 930-450 Dear customer, Please ask our sales staff for the RMA number (Return of Material Authorization). - Page 24 MSI8V BIV CDSVAN Notes Copyright by Brähler ICS...
-
Page 25: Adresses
CDSVAN MSI8V BIV Adresses Head office Germany Brähler ICS Konferenztechnik International Congress Service AG Auf der Alten Burg 6 53639 Königswinter GERMANY P.O. Box 3264 53627 Königswinter, GERMANY T +49 (0) 2244 930-0 F +49 (0) 2244 930-450 www.braehler.com Rental service Wahlfelder Mühle 3... - Page 26 Phone +49 2244 930-0 www.braehler.com 06.4700...
