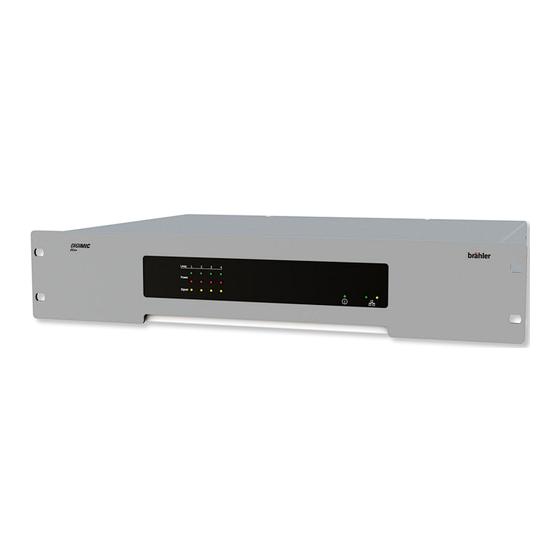

Brähler Systems DIGIMIC DCen MkII Instruction Manual

Brähler Systems DIGIMIC DCen MkII Instruction Manual

Central unit for digimic conference systems

Advertisement

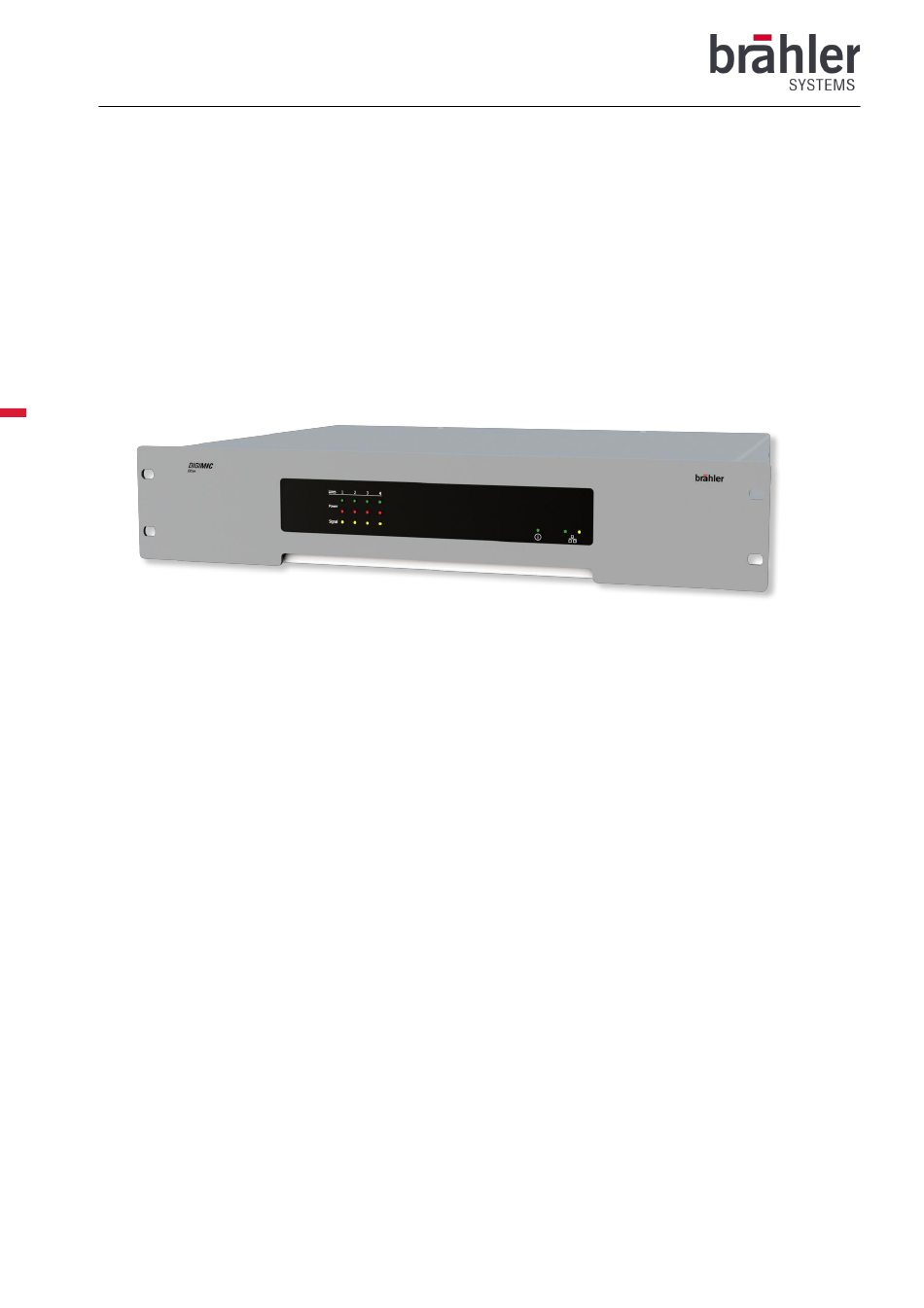

Instruction manual
DIGIMIC
DCen MkII
Central unit for DIGIMIC conference systems
Article no.: 05.0055

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIGIMIC DCen MkII and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Brähler Systems DIGIMIC DCen MkII

  • Page 1 Instruction manual DIGIMIC DCen MkII Central unit for DIGIMIC conference systems Article no.: 05.0055...
  • Page 2: Table Of Contents

    DIGIMIC DCen MkII Operating Instructions Table of contents Table of contents ......................... 2 About this guide .......................... 3 Symbols ............................... 3 General information ..........................3 Important information ........................4 Safety instructions ..........................4 Safety information ..........................4 DIGIMIC Digital Conference System ................... 6 System components ...........................
  • Page 3: About This Guide

    DIGIMIC DCen MkII Operating Instructions About this guide Keep these operating instructions together with the device. If you pass the device on to third parties, also pass on these operating instructions. Symbols The following means of representation are used in this manual: Indicates instructions which, if not followed, may endanger your health, the functionality of your device or the security of your data.
  • Page 4: Important Information

    DIGIMIC DCen MkII Operating Instructions Important information Safety instructions ▪ Read this manual! ▪ Keep the manual in a safe place ▪ Observe the specified warnings ▪ Follow the instructions ▪ Do not use the device near water ▪ Clean the device only with a dry, clean cloth ▪...
  • Page 5 DIGIMIC DCen MkII Operating Instructions Disconnection from the mains To disconnect the device from the mains, pull the mains plug out of the socket. Overload! Do not overload your sockets and cables. This can cause fire and electric shock. Objects and liquids Never insert objects of any kind into the openings of the device.
  • Page 6: Digimic Digital Conference System

    DIGIMIC DCen MkII Operating Instructions Disposal This symbol on the product, instructions for use or packaging means that electrical and electronic equipment should be disposed of separately from household waste at the end of its working life. There are collection systems for recycling within the EU or countries outside the EU.
  • Page 7: Software Components

    DIGIMIC DCen MkII Operating Instructions Software components ▪ DCen ConfigTool ▪ DCen Weaver ▪ MicControl2 ▪ brählerOS with the components ▪ Admin Tool ▪ Conference Operator ▪ Digivote ▪ TimeControl ▪ IdentControl ▪ InterpretationManagement ▪ CameraControl ▪ AudioEventPlayer For more information on the Brähler software products and their operation, please read the corresponding operating manuals.
  • Page 8: Structure

    DIGIMIC DCen MkII Operating Instructions Structure Introduction The DCen MkII central DIGIMIC control unit controls all connected DIGIMIC units within the DIGIMIC system. The DCen MkII automatically configures the units and routes all audio signals exactly where you need it. The central unit provides all common microphone modes, voting, identification, channel selector (32 channels), chairman priority switching and VIP management.
  • Page 9: Controls

    DIGIMIC DCen MkII Operating Instructions Back Ventilation slot Reset Dante ® connection 1-4 On/Off switch Line OUT 1-4 L1-L4 Mains Line IN Line OUT connection USB port for power connection Connection for supply microphone units Controls Front Status display The status display shows you the corresponding status for each line output (left). Power Power shows you the operating voltage on the respective line.
  • Page 10: Back

    DIGIMIC DCen MkII Operating Instructions Power At the bottom right of the status display you will see the operation of the DCen MkII. Green oscillating: The DCen MkII starts (booting process) Green: DCen MkII is ready for operation Network connection Shows the status or connection to the network.
  • Page 11 DIGIMIC DCen MkII Operating Instructions LINE-IN LINE-IN socket (Phoenix terminal) for feeding external signals for decentralized sound reinforcement via the integrated loudspeakers of the microphone consoles, as well as the original signal for the interpreters. If the signal is fed in via a mixing console and is to come through the integrated loudspeakers, the signal must be fed back from the mixing console.
  • Page 12 DIGIMIC DCen MkII Operating Instructions USB Power The USB output can be used to power external USB devices. The maximum power is 500mA at 5V. The USB port is intended exclusively for power supply! The port cannot be used as a port for USB media. L1-L4 Four outputs (RJ45) for connecting DIGIMIC family devices - such as microphone units, interpreter consoles or other system components (e.g.
  • Page 13: Example System Diagrams

    DIGIMIC DCen MkII Operating Instructions Example system diagrams In addition to CMic and SMic/SChair units, interpreter consoles are also connected to this DCen MkII. The SMic/SChair chain is extended by an additional DExt power supply unit. BRÄHLER Systems GmbH T +49224 4 8414-4 sales@braehler- Auf der Alten Burg 6 systems.com...
  • Page 14 DIGIMIC DCen MkII Operating Instructions In the following system example, a DLine is interconnected in an SMic chain. This allows external audio signals (e.g. lectern) to be integrated into the DIGIMIC system and controlled like a microphone console. Further example system images can be found from page 20 of this manual. BRÄHLER Systems GmbH T +49224 4 8414-4 sales@braehler-...
  • Page 15: Structure

    DIGIMIC DCen MkII Operating Instructions Structure To put the DCen MkII into operation, first establish a power connection. To do this, plug the power cord into the power connector and connect the DCen MkII to your power source. Also connect at least one unit of the DIGIMIC family to the DCen MkII.
  • Page 16: Operation

    DIGIMIC DCen MkII Operating Instructions Operation Press the on/off switch of the DCen MkII to switch on the central unit. The system will power up. All 4 green line LEDs should light up indicating correct voltage at the outputs. If this is not the case, turn off the DCen immediately and check the wiring for shorts.
  • Page 17: Default Factory Settings

    DIGIMIC DCen MkII Operating Instructions Default factory settings The default factory settings are as follows: Conference parameters Priority OFF (Off) permanently or temporarily "mute all PERMANENT Max. Number of active DELegates DEL3 (3 participants) (delegate microphones) Max. Number of active VIP microphones VIP3 Volume and conference mode LS volume...
  • Page 18 DIGIMIC DCen MkII Operating Instructions Technical data Digital audio ▪ 48 kHz sampling frequency ▪ 20 - 20,000 Hz frequency range ▪ Approx. 1 ms latency ▪ Low sensitivity to cell phones, Bluetooth, UMTS, WiFi, etc. Audio interfaces ▪ 1x OUT IN (Phoenix terminal) ▪...
  • Page 19: Troubleshooting

    DIGIMIC DCen MkII Operating Instructions Troubleshooting Error description Possible cause of error Possible solution After switching on the DCen The power cord is not or not Plug the mains cable into the MkII (power on), the system properly connected to the mains socket or check the remains without reaction.
  • Page 20: Example System Diagrams (Continued)

    DIGIMIC DCen MkII Operating Instructions Example system diagrams (continued) If delegates are mainly to receive audio signals without making speeches themselves, a combination with the CSX4 control center and DIGIMIC CS units is a good choice. BRÄHLER Systems GmbH T +49224 4 8414-4 sales@braehler- Auf der Alten Burg 6 systems.com...
  • Page 21 DIGIMIC DCen MkII Operating Instructions In this example, a DSwitch is integrated into the system. The DSwitch protects the DCen MkII and switches to a back-up device in the event of a fault. Each DSwitch protects up to two DCen MkII. BRÄHLER Systems GmbH T +49224 4 8414-4 sales@braehler-...
  • Page 22 DIGIMIC DCen MkII Operating Instructions In this example, CMic VIS ID (with supporting audio functions for visually impaired conference participants) is integrated in addition to CMic ID. In this example, a DPU is connected in between. The DPU is an interface box that you use to connect delegate units to the Delegate App from Brähler.
  • Page 23 DIGIMIC DCen MkII Operating Instructions In this example application, DIGIMIC multimedia units SMic123W and SMic133D are connected to the DCen MkII. These allow, for example, viewing of documents relevant to the meeting. Votes, for example, are made via the touchscreen display. BRÄHLER Systems GmbH T +49224 4 8414-4 sales@braehler-...
  • Page 24: List Of Iso 639-2 Language Codes

    DIGIMIC DCen MkII Operating Instructions List of ISO 639-2 language codes Abkhazian Hungarian Portuguese Afar Icelandic Punjabi Afrikaans Quechua Akan Igbo Romanian Albanian Indonesian Romansh Amharic Interlingua Russian Arabic Inuktitut Samoan Aragonese Inupiaq Sango Armenian Irish Sanskrit Assamese Italian Sardinian Avaric Japanese Scottish Gaelic...
  • Page 25 DIGIMIC DCen MkII Operating Instructions If you have any questions about these operating instructions, please contact: BRÄHLER Systems GmbH Auf der Alten Burg 6 53639 Königswinter Germany T +49 2244 8414-4 sales@braehler-systems.com www.braehler-systems.com Note: Changes or modifications to the equipment not expressly approved by Brähler Systems could void the user's authority to operate this equipment.
