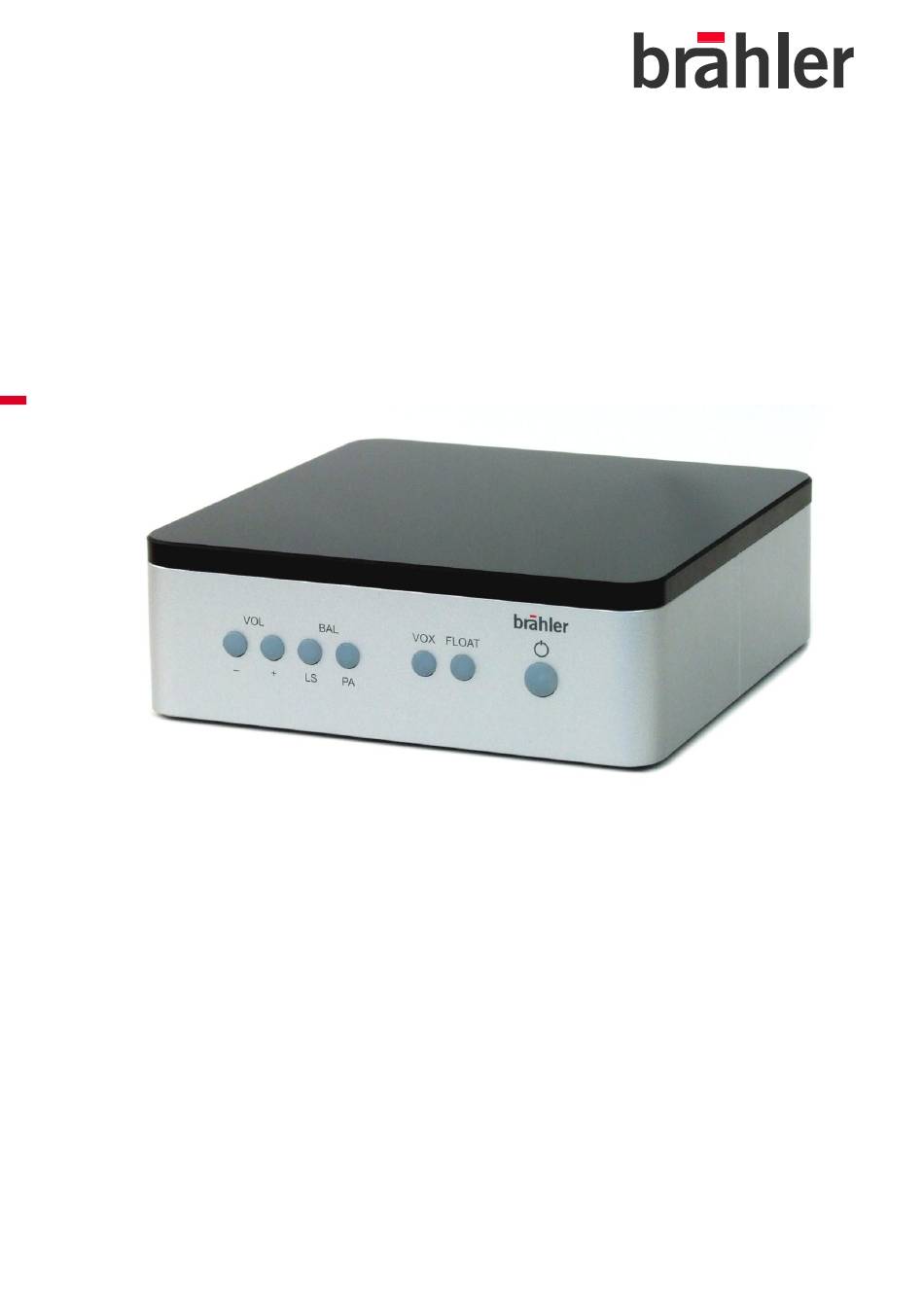

- Page 1 ® DIGIMIC DCen mini – Central Unit Operating Instructions Rev 1.01...
- Page 2 DCen min DIGIMIC® ® DIGIMIC is registered trademark of Brähler ICS Konferenztechnik International Congress Service AG. All other trademarks and trade names are the property of their respective owners. Printed in Germany Should you have any questions regarding this manual please contact: Brähler ICS Konferenztechnik International Congress Service AG Auf der Alten Burg 6...
- Page 3 DIGIMIC® DCen mini Unsere Anlagen sind nach neuestem Stand der Technik konzipiert und getestet. Sie bedürfen im Normalfall Our equipment and installations have been built and tested according to the latest state of the art. Under normal conditions, they do not require any special maintenance. However, please be aware of the following: ...
- Page 4 DCen mini DIGIMIC® Copyright by BRÄHLER ICS AG...
-
Page 5: Table Of Contents
DIGIMIC® DCen mini Inhalt Disclaimer ............................6 About this manual ......................... 6 Important remarks ......................... 7 Introduction ........................... 8 Items delivered ............................8 System components ............................ 9 Accessories ..............................9 Connections (rear side) ......................10 1. 48VDC (Power Supply) ......................... 10 2. -
Page 6: Disclaimer
DCen mini DIGIMIC® Disclaimer All information, designs and specifications in this manual were correct at the time of publication. The product will be continually improved and updated, so the product can differ in appearance and in functions. Both the compliance of these instructions and the conditions and methods of installation, operation, use and maintenance of the system cannot be monitored by the manufacturer. -
Page 7: Important Remarks
DIGIMIC® DCen mini Important remarks Safety Should any liquid or solid object fall into the housing, unplug the unit and have it checked by qualified personnel before further operation. Installation Do not install the unit in a location near heat sources such as radiators or air ducts, or in a place exposed to direct sunlight, excessive dust or humidity, mechanical vibration or shock. -
Page 8: Introduction
DCen mini DIGIMIC® Introduction Thank you for your confidence in the conference technology of Brähler!. The Central Control Unit DCen mini controls all connected delegate units (CMic/CChair as well as DMic/DChair) of the DIGIMIC discussion system, configures them automatically and routes the digital audio signals. -
Page 9: Items Delivered
DIGIMIC® DCen mini Items delivered DIGIMIC ® DCen mini ( central unit) PSU DCen power supply (input range 90 – 250 V) Mains cable 2.0 m System components DIGIMIC ® CChair Classic Chairman Unit DIGIMIC ® CChair CSV Classic Chairman Unit with channel selector and voting DIGIMIC ®... -
Page 10: Connections (Rear Side)
DCen mini DIGIMIC® Connections (rear side) The digital central unit DCen mini is designed for easy handling without complex settings. The connections are shown below: 6. Line Output 7. Line Input 1. power 2. network 3. delegate 4. PA Output 5. -
Page 11: Controls (Front Side)

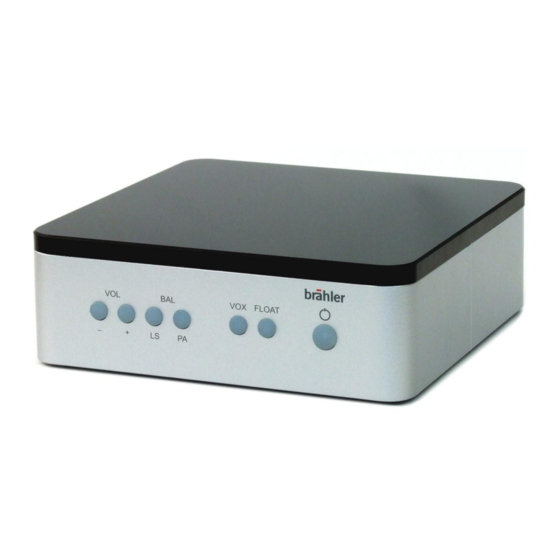

DIGIMIC® DCen mini Controls (front side) The panel has seven backlit buttons, which are explained below. 8. VOLUME 9. Balance 10. Mode 11. ON/OFF LS / PA VOX / FLOAT switch 8. VOLUME With the buttons Volume – (down) und Volume + (up) the volume is adjusted or changed. This relates to the LS of the units and the PA-OUT. -
Page 12: Setup
DCen mini DIGIMIC® Setup The build-up is done according to the block diagrams in the next section. Place the central unit to the designated location and distribute the microphone consoles in an appropriate manner in the room. Observe the safety instructions. ... -
Page 13: Switching On And Setting
DIGIMIC® DCen mini Connect the IEC power connector with the included AC power supply. The other end of the power cable is plugged into the country-specified mains socket. Switching on and setting DCen mini is switched on by pressing the ON / OFF button for about 1 second. During the boot sequence the ON / OFF button flashes in different levels of intensity: In sequence the lights of the button VOLUME down (-), VOLUME up (+), BALANCE LS and BALANCE PA. -
Page 14: Operation
DCen mini DIGIMIC® Operation Volume With the two buttons VOLUME (-) and VOLUME (+) the volume can be adjusted. The illumination of these buttons depends on the set level. dark: low or off bright: loud This setting affects the volume of the microphones loudspeakers as well as the level of the PA OUT connector. -
Page 15: Firmware Update
DIGIMIC® DCen mini Firmware Update The central unit DCen mini can be updated via firmware update. 1. Requirement: The central unit to be updated must be online in a network. The update files you get are only valid for the central unit to be updated. 2. - Page 16 DCen mini DIGIMIC® 4. Installation on the DCen mini The final step of the updating process is done locally on the DCen mini. Turn off the central unit. Wait at least 5 seconds before switching it on again. The DCen mini will verify the integrity of the transferred files and will offer to upgrade the firmware from the old to the new release.
-
Page 17: Application Examples
DIGIMIC® DCen mini Application examples The cabling is limited to connecting the external power supply, and the delegate units with each other. Here are shown some of the many possibilities. Microphone units Classic: CChair CMic CMic CMic CMic DCen mini Power Supply 100 –... -
Page 18: Microphone Units Pro Series
DCen mini DIGIMIC® Microphone units Pro Series DCEN mini also works with the microphone units of the DIGIMIC Pro Series. With access to a LAN and the PC software DMicControl, all connected microphones can be controlled. Using this software more microphone modes such as MAN (manual control) are available. -
Page 19: Appendix
DIGIMIC® DCen mini Appendix Technical data This products complies with international standards IEC60914 Connectors Socket for external power supply (48 VDC) Socket for network connection LAN (10/100 Mbit / s) ® Socket for delegate units (25 microphone units; DisplayPort ... -
Page 20: Adapter Cable
DCen mini DIGIMIC® Adapter cable ® 08.3500 DisplayPort connector socket (Classic units) < -- > S8G plug (Pro Series DMic, DChair) Application: DExt < -- > CMic/CChair 22.3670.5 22.6380 2,50 m (KSS8G) connector ® 08.3502 DisplayPort plug (Classic units) < -- > S8G connector socket (Pro Series DMic, DChair) Application: DCen mini <... -
Page 21: Trouble Shooting
DIGIMIC® DCen mini Trouble shooting Error description Error cause Error solutiom Indicator light of power switch does External power supply not connected Connect the external power not light (power supply is missing) adapter Check wiring at power supply 48VDC power supply LED at DExt Power Supply (DExt) is not connected Connect the microphone line does not light up... -
Page 22: Warranty
DCen mini DIGIMIC® Warranty ® BRÄHLER ICS allows for the DIGIMIC products a warranty period of 24 months, from date of delivery, for faulty materials and/or manufacturing faults. The warranty does not include rechargeable or disposable batteries, misuse, negligence, breakage, wrong installation, use outside the existing rules and any unauthorized modifications. -
Page 23: Service Form
SERVICE FORM Material return shipments for repair-, service-, or guaranty purposes please send to: BRÄHLER ICS Konferenztechnik AG Auf der Alten Burg 6 53639 Königswinter, Germany Phone +49 (0)2244 930-0, Fax +49 (0)2244 930-450 Dear customer, Please ask our sales staff for the RMA number (Return of Material Authorization). Without RMA number a treatment is not possible! Please always include this service form, fully completed, with any complaint or repair wish you may have. - Page 24 DCen mini DIGIMIC® Copyright by BRÄHLER ICS AG...
-
Page 25: Contact Addresses
DIGIMIC® DCen mini Contact addresses Head office Germany Brähler ICS Konferenztechnik International Congress Service AG Wahlfelder Mühle 3 53639 Königswinter Germany P.O. Box 3264 53627 Königswinter Germany T +49 (0) 2244 930-0 F +49 (0) 2244 930-450 www.braehler.com Rental service Wahlfelder Mühle 3 53639 Königswinter Germany... - Page 26 Tel. +49 (0)2244 930-0 www.braehler.com 05.0410...
