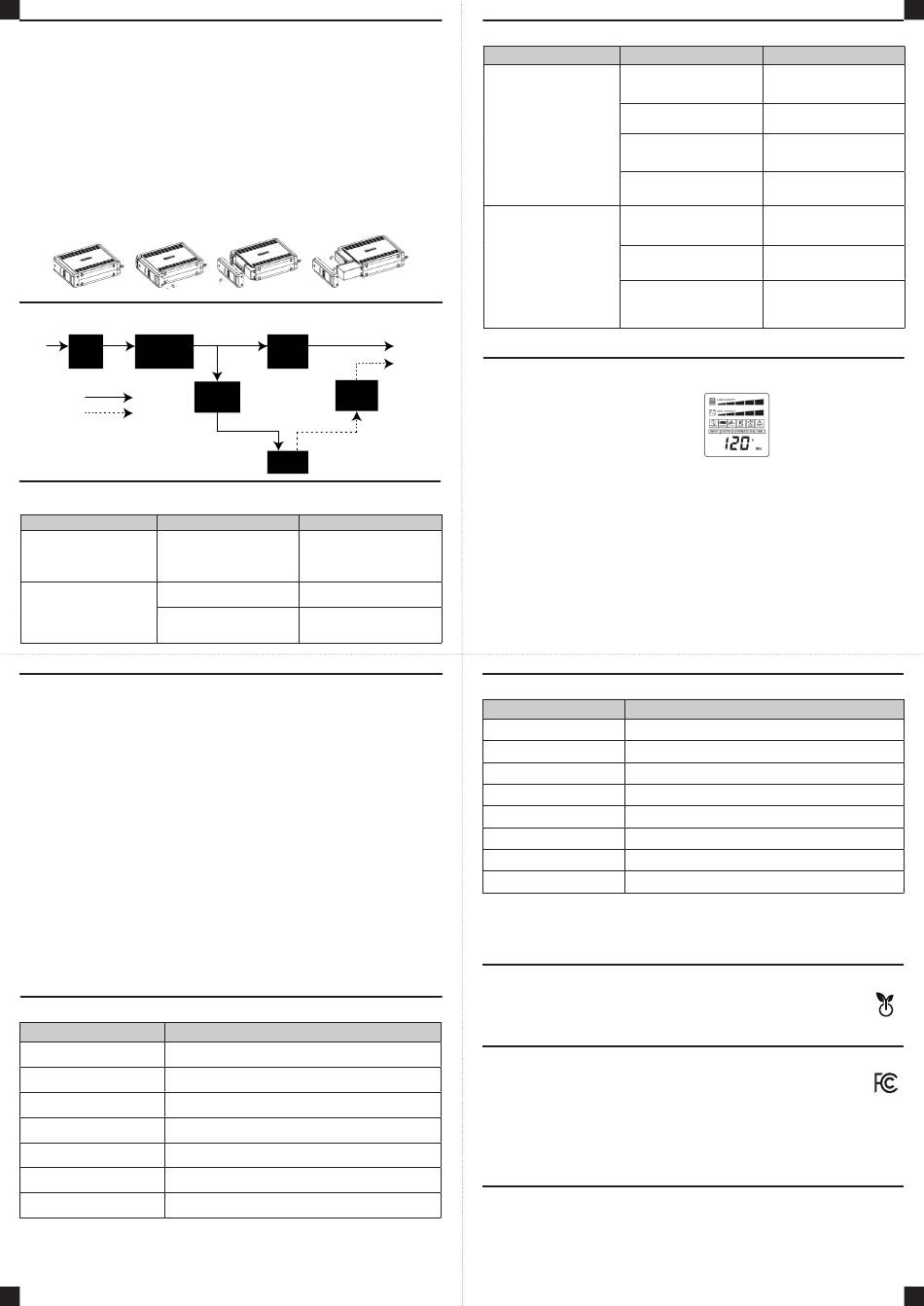

CyberPower AVR Series User Manual page 2

5
REPLACING THE BATTERY
- continued
TO REPLACE THE BATTERY
1. Turn off and unplug all connected equipment.
2. Turn the UPS off and unplug it from the AC
power source.
3. Turn the UPS on its side.
4. Remove the front panel retaining screws
located on the bottom of the UPS.
5. Slide the battery compartment cover (front
panel) completely off of the unit.
6. Disconnect the battery wires from the batteries.
7. Remove the batteries from the compartment.
8. Install the replacement batteries by connect-
ing the red wire (+) and black wire (-) to the
same color connectors from both the upper
and lower battery pack. Note: Only use new
SYSTEM FUNCTION BLOCK DIAGRAM
Input EMI Surge
Filter Suppressor
Normal Mode
Battery Mode
TROUBLESHOOTING
Problem
Circuit breaker button is
Circuit breaker has been tripped
projecting from the back of
due to an overload.
the unit.
Battery not fully charged.
The UPS does not perform
expected runtime.
Battery is worn out.
DEFINITIONS FOR ILLUMINATED LED INDICATORS
6. AVR (Automatic Voltage Regulation) icon:
This icon appears whenever your UPS is
automatically correcting low AC line volt-
age without using battery power. This is a
normal, automatic operation of your UPS,
and no action is required on your part.
7. SILENT MODE icon:
This icon appears whenever the UPS is in
silent mode.
8. OVER LOAD icon:
This icon appears and an alarm sounds to
indicate the battery-supplied outlets are
overloaded. To clear the overload, unplug
your equipment from the outlet until the
icon turns off and the alarm stops.
9. FAULT icon:
This icon appears if there is a problem with
the UPS, Contact CyberPower Systems at
for further help and support.
E01: Charger Fault – Overcharge
(Contact CyberPower Systems for support.)
E02: Charger Fault – No Charge
For more information about functions setup, please refer to the Function Setup Guide.
TECHNICAL SPECIFICATIONS
Model
Capacity
Nominal Input Voltage
Input Frequency
On-Battery Output Voltage
Max. Load for UPS Outlets
On-Battery Output Wave Form
Operating Temperature
7
batteries for replacement and both batter-
ies should be replaced at the same time to
ensure maximum life span.
9. Put the batteries back into the compartment.
10. Slide back the battery compartment cover
and tighten the retaining screws.
11. Recharge the UPS for 8-16 hours to fully
charge the battery.
REMINDER:
Batteries are considered HAZARDOUS WASTE
and must be disposed of properly. Most retail-
ers that sell lead acid batteries collect used
batteries for recycling, as required by local
regulations.
AVR
Charger
Inverter
AC / DC
Battery
Possible Cause Solution
Turn the UPS off and unplug the
connected equipment. Wait 10
seconds, reset the circuit breaker
by pressing the button, and then
turn the UPS on.
Recharge the battery by leaving
the UPS plugged in.
Contact CyberPower Systems
about replacement batteries at:
cyberpowersystems.com/support.
- continued
(Contact CyberPower Systems for support.)
E11: Battery Overvoltage
(Contact CyberPower Systems for support.)
E21: Battery Output Short Fault
(Turn on the UPS again.)
E22: Battery Mode or AC/Utility Power
Mode Overload Fault (Unplug at least one
piece of equipment from battery outlets
and turn the UPS on again.)
10. BATT. CAPACITY meter:
This meter displays the approximate
charge level (in 20% increments) of the
UPS's internal battery. During a power
outage or severe planned power suppres-
sion, the UPS switches to battery power,
the BATTERY icon appears, and the charge
level decreases.
11. LOAD CAPACITY meter:
This meter displays the approximate output
load level (in 20% increments) of the UPS
battery outlets.
A1500SP1
1500 VA / 900 W
120 V
60 Hz ± 3 Hz
120 VAC ± 5%
1500 VA / 900 W
Simulated Sine Wave
+ 32°F to 104° F / 0° C to 40° C
TROUBLESHOOTING
Problem
The UPS will not turn on.
PowerPanel® Personal is inactive
(all icons are gray).
Additional troubleshooting information can be found at "Support" at www.CyberPowerSystems.com
Output
DEFINITIONS FOR ILLUMINATED LED INDICATORS
1. INPUT voltage meter:
This meter measures the AC voltage that
the UPS system is receiving from the utility
wall outlet. The UPS is designed, through
the use of automatic voltage regulation,
to continuously correct output voltage to
connected equipment to a safe 120 voltage
output range. In the event of a complete
power loss, severe planned power sup-
pression, or over-voltage, the UPS relies
on its internal battery to supply consistent
110/120 output voltage. The INPUT voltage
meter can be used as a diagnostic tool to
identify poor-quality input power.
2. OUTPUT voltage meter:
This meter measures, in real time, the AC
voltage that the UPS system is providing
to the computer, such as normal line mode,
AVR mode, and battery backup mode.
(Note: The OUTPUT voltage meter shows
the status of the battery backup outlets.)
3. ESTIMATED RUN TIME:
This displays the run time estimate of the
UPS with current battery capacity and load.
TECHNICAL SPECIFICATIONS
Model
Operating Relative Humidity
Size (W x H x D)
Net Weight
Battery Type
Typical Battery Recharge Time
Typical Battery Life
Recommended Battery
Safety Approvals
CYBERPOWER GREENPOWER UPS™ TECHNOLOGY
Advanced Energy-Saving Design
The GreenPower UPS™ has a high-efficiency charger, which makes it the most energy-efficient UPS in its class. The advanced high-frequency
charging system significantly improves charging efficiency and conserves energy. As a result of this advanced design, the GreenPower UPS™
uses less energy compared to competitive models. The GreenPower UPS™ is manufactured in accordance with the Restriction on Hazardous
Substances (RoHS) directive making it one of the most environmentally-friendly UPS systems on the market today.
FCC COMPLIANCE STATEMENT
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Canadian Compliance Statement
CAN ICES-3 (B)/NMB-3(B)
LIMITED WARRANTY AND CONNECTED EQUIPMENT GUARANTEE
Please visit www.CyberPowerSystems.com for a copy of the Limited Warranty and Connected Equipment Guarantee.
Where Can I Get More Information?
The application of the United Nations Convention of Contracts for the International Sale of Goods is expressly excluded.
CyberPower is the warrantor under this Limited Warranty. For further information please feel free to contact CyberPower at:
Cyber Power Systems (USA), Inc. 4241 12th Ave E., STE 400, Shakopee, MN 55379;
call us at (877) 297-6937; or submit a web ticket online at cyberpowersystems.com/support.
- continued
Cyber Power Systems (USA), Inc. encourages environmentally sound methods for disposal and recycling of its UPS products.
Please dispose and/or recycle your UPS and batteries in accordance to the local regulations of your state.
© 2022 CyberPower Systems (USA), Inc. PowerPanel® Personal is a trademark of Cyber Power Systems(USA) Inc.
All rights reserved. All other trademarks are the property of their respective owners.
- continued
Possible Cause
The on/off switch is designed
Turn the UPS off. Wait 10 seconds
to prevent damage from rapidly
and then turn the UPS on.
turning it off and on.
The unit is not connected to an The unit must be connected to a
AC outlet. 120V 60Hz outlet.
Contact CyberPower Systems
The battery is worn out. about replacement batteries at:
cyberpowersystems.com/support.
Contact CyberPower Systems at:
Mechanical problem.
cyberpowersystems.com/support.
Connect the USB cable to the UPS
The USB cable is not connected. unit and an open USB port on the
back of the computer.
The USB cable is connected to a Check for a different USB port and
bad USB port. plug the cable in.
Shutdown your computer and turn
The unit is not providing battery the UPS off. Wait 10 seconds and
power. turn the UPS back on. This should
reset the unit.
4. NORMAL icon:
This icon appears when the UPS is working
under normal conditions.
5. BATTERY icon:
During a severe planned power suppression
or power outage, this icon appears and an
alarm sounds (two short beeps followed
by a pause) to indicate the UPS is oper-
ating from its internal batteries. During a
prolonged planned power suppression or
power outage, the alarm will sound contin-
uously to indicate the UPS's batteries are
nearly out of power. You should save files
and turn off your equipment immediately
or allow the software to shut the system
down.
- continued
A1500SP1
0 to 90% non-condensing
3.9" x 11" x 14" / (100 x 280 x 355 mm)
25 lbs / 11.3 kg
CyberPower / RB1290X2
8 hours
3 to 6 years, depending on number of discharge/recharge cycles
Sealed Maintenance Free Lead Acid Battery
UL1778(UPS), cUL107., FCC/DoC Class B
6
Solution
The LCD display indicates a variety
of UPS operational conditions. All
descriptions apply when the UPS
is plugged into an AC outlet and
turned on or when the UPS is on
battery.
-continued
G P UPS
REEN OWER ™
Energy-Saving Technology
