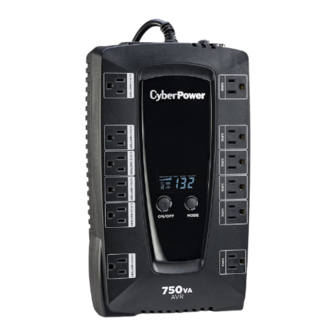

CyberPower AVR Series User Manual

YOUR ULTIMATE ALLY IN POWER
AVR UPS SERIES
AVRG750LCD / AVRG900LCD
USER MANUAL
7
1

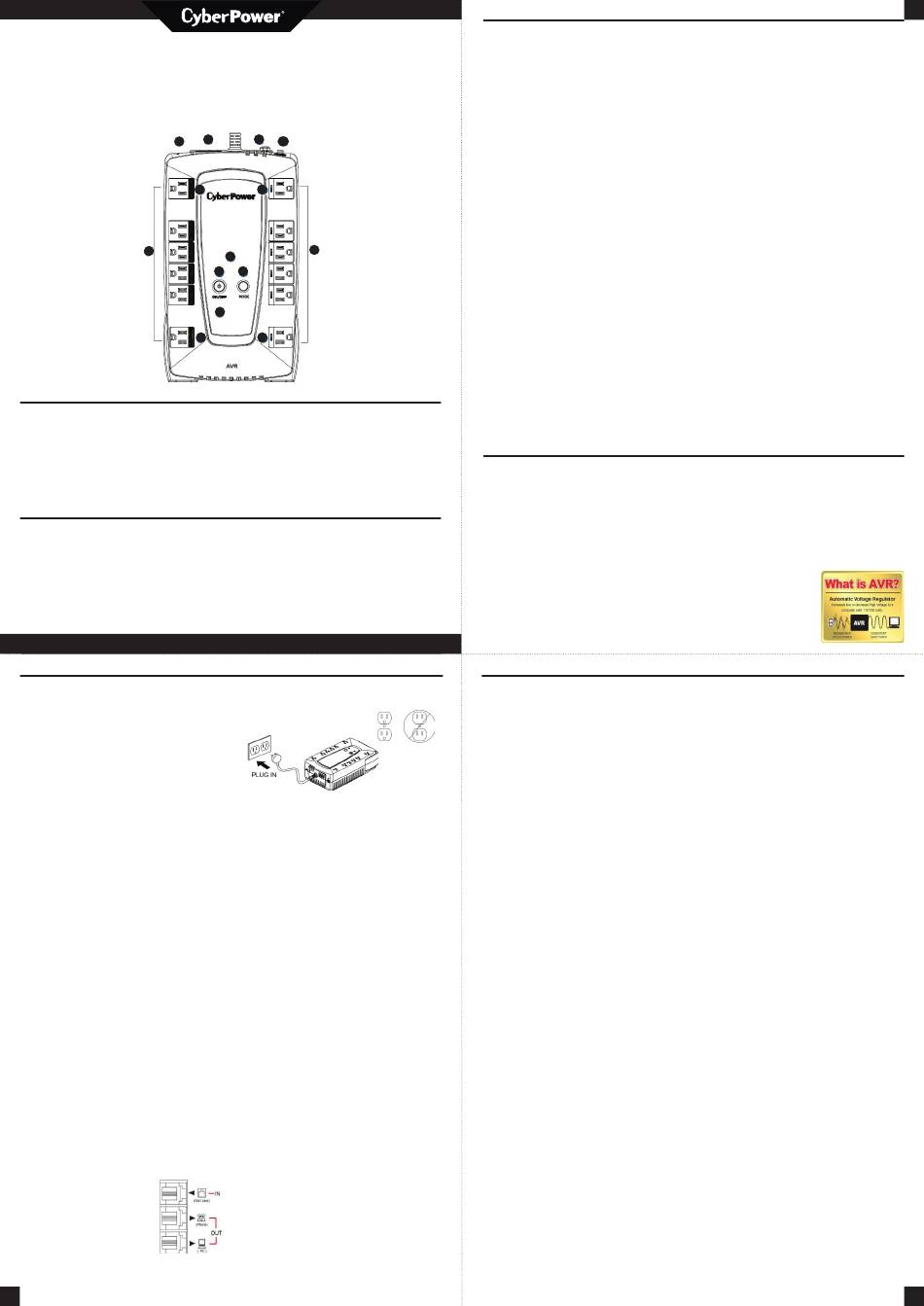

FEATURES
1. Battery and Surge Protected Outlets
2. Full-Time Surge Protection Outlets
3. Power Switch
4. Power On Indicator
5. Mode Switch
6. LCD Module Display
PRODUCT REGISTRATION
Thank you for purchasing a CyberPower product. This UPS is designed to provide unsurpassed
power protection, operation, and performance during the lifetime of the product. Please
take a few minutes to register your product at: www.CyberPowerSystems.com/registration.
Registration certifies your product's warranty, confirms your ownership in the event of a product
loss or theft, and entitles you to free technical support. Register your product now to receive the
benefits of CyberPower ownership.
Cyber Power Systems (USA), Inc.
4241 12th Avenue East, Suite 400 | Shakopee, MN 55379 | CyberPowerSystems.com
INSTALLING YOUR UPS SYSTEM
DETERMINE THE POWER
REQUIREMENTS OF YOUR EQUIPMENT
1. Ensure that the equipment plugged into the
UPS does not exceed the UPS unit's rated
capacity. If the rated capacities of the unit
are exceeded, an overload condition may
occur and cause the UPS unit to shut down
or the circuit breaker to trip.
2. There are many factors that can affect
the amount of power that your electronic
equipment will require. For optimal system
performance keep the load below 80% of
the unit's rated capacity.
HARDWARE INSTALLATION GUIDE
1. Your new UPS may be used immediately
upon receipt. However, after receiving a
new UPS, to ensure the battery's maximum
charge capacity, it is recommended that
you charge the battery for at least eight
hours. Your UPS is equipped with an
auto-charge feature. When the UPS is
plugged into an AC outlet, the battery will
automatically charge whether the UPS is
turned on or turned off.
2. With the UPS unit turned off and
unplugged, connect your computer,
monitor, and any other peripherals requiring
battery backup into the battery power
supplied outlets. Plug the other peripheral
equipment (ie. printer, scanner, speakers,
etc.) into the full time surge protection
outlets. DO NOT plug a laser printer,
paper shredder, copier, space heater,
vacuum cleaner, sump pump or other
large electrical device into the "Battery
and Surge Protected Outlets". The power
demands of these devices will overload
and possibly damage the unit.
3. To protect a fax, phone, or modem line,
connect a telephone cable from the wall
jack outlet to the IN jack of the UPS.
Connect a telephone cable
from one of the UPS OUT
jacks to the modem port
on the computer. The other
UPS OUT jack can be used
to protect a telephone or
fax machine.
3
8 9
10
11 11
2
6
3 5
4
11 11
7. USB Port
8. Communication Protection Ports
9. Circuit Breaker
10. Ground Screw
11. Outlets Designed for AC Adapters
- continued
4. Plug the UPS into a 2-pole, 3-wire grounded
receptacle (wall outlet). Make sure the
wall branch outlet is protected by a fuse
or circuit breaker and does not service
equipment with large electrical demands
(e.g. air conditioner, refrigerator, copier,
etc.). The warranty prohibits the use of
extension cords, outlet strips, and surge
strips in conjunction with the UPS unit.
5. Press the power switch to turn the unit on.
The Power On indicator light will illuminate
green and the unit will "beep" once.
6. If an overload is detected, an audible alarm
will sound and the unit will emit one long
beep. To correct this, turn the UPS off and
unplug at least one piece of equipment
from the battery power supplied outlets.
Make sure the circuit breaker is depressed
and then turn the UPS on.
7. To maintain optimal battery charge, leave the
UPS plugged into an AC outlet at all times.
8. To store the UPS for an extended period
of time, cover it and store with the battery
fully charged. While in storage, recharge
the battery every three months to ensure
optimal battery life.
9. Ensure the wall outlet and UPS are located
near the equipment being attached for
proper accessibility.
IMPORTANT SAFETY WARNINGS
This manual contains important safety instructions. Please read and follow all instructions carefully
during installation and operation of the unit. Read this manual thoroughly before attempting to
unpack, install, or operate your UPS.
CAUTION! To prevent the risk of fire or
electric shock, install in a temperature and
humidity controlled indoor area free of
conductive contaminants. (Please see
specifications for acceptable temperature
and humidity range).
CAUTION! To reduce the risk of electric shock,
do not remove the cover except to service the
battery. Turn off and unplug the unit before
servicing the batteries. There are no user
serviceable parts inside except for the battery.
CAUTION! Hazardous live parts inside can be
energized by the battery even when the AC
input power is disconnected.
CAUTION! The UPS must be connected to an
AC power outlet with fuse or circuit breaker
protection. Do not plug into an outlet that is
not grounded. If you need to de-energize this
equipment, turn off and unplug the unit.
CAUTION! To avoid electric shock, turn off the
unit and unplug it from the AC power source
before installing a computer component.
CAUTION! To reduce the risk of fire, connect
only to a circuit provided with 20 amperes
maximum branch circuit over current
protection in accordance with the National
Electric Code, ANSI/NFPA 70.
INSTALLING YOUR UPS SYSTEM
UNPACKING
Inspect the UPS upon receipt.
The box should contain the following:
(a) UPS unit
(b) User's manual
(c) USB device cable
PowerPanel® Personal software is
available on our website. Please visit
www.cyberpowersystems.com and go
to the Software Section for a free download.
BASIC OPERATION
1. Battery and Surge Protected Outlets
The unit has six battery powered and surge
protected outlets to ensure temporary
uninterrupted operation of your equipment
during a power failure. DO NOT plug a
laser printer, paper shredder, copier, space
heater, vacuum cleaner, sump pump or
other large electrical device into the
Battery and Surge Protected Outlets.
The power demands of these devices will
overload and possibly damage the unit.
2. Full-Time Surge Protection Outlets
The unit has six surge suppression outlets
3. Power Switch
Used as the master on/off switch for
equipment connected to the battery power
supplied outlets.
To turn the UPS ON, press the power
button for approximately 2 seconds - you
will hear a constant tone (1 second) - and
release after a short beep.
To turn the UPS OFF, press the power
button for approximately 2 seconds - you
will hear a constant tone (1 second) - and
release after two short beeps.
Alarm setting: The audible alarm can be
turned OFF or ON by quickly pressing the
POWER button twice. The default setting
is for the alarm ON. To turn the alarm OFF,
quickly press the power button twice. You
will hear two short beeps when the alarm
is turned OFF. To turn the alarm back ON,
quickly press the power button twice. You
will hear a single short beep when the
alarm is turned ON. *When the alarm is
turned OFF, there will be no audible
notification when the UPS reaches a low
battery state.
4. Power On Indicator
This LED is illuminated when the utility
power is normal and the UPS outlets are
providing power, free of surges and spikes.
5. Mode Switch
Press the Mode Switch for approximately
3 seconds to enter setup mode to select
three functions: Utility High Voltage Range,
Utility Low Voltage Range, and LCD sleep
ON/OFF. When a function is selected, press
Mode Switch for 3 seconds to view options.
When an option is selected, wait for 8
seconds for the setting to be confirmed.
(SAVE THESE INSTRUCTIONS)
CAUTION! Not for use in a computer room
as defined in the Standard for the Protection
of Electronic Computer / Data Processing
Equipment, ANSI/NFPA 75.
CAUTION! Do not dispose of batteries in a fire.
The batteries may explode.
CAUTION! Do not open or mutilate batteries.
Released electrolyte is harmful to the skin and
eyes. It may be toxic.
DO NOT USE FOR MEDICAL
OR LIFE SUPPORT EQUIPMENT!
CyberPower Systems does not sell products
for life support or medical applications. DO
NOT use in any circumstance that would
affect operation and safety of life support
equipment, any medical applications or
patient care.
DO NOT USE WITH OR NEAR AQUARIUMS!
To reduce the risk of fire or electric shock,
do not use with or near an aquarium.
Condensation from the aquarium can cause
the unit to short out.
DO NOT USE THE UPS
ON ANY TRANSPORTATION!
To reduce the risk of fire or electric shock, do
not use the unit on any transportation such
as airplanes or ships. The effect of shock or
vibration caused during transit and the damp
environment can cause the unit to short out.
AUTOMATIC VOLTAGE REGULATOR
The AVRG750 LCD / AVRG 900LCD stabilizes
inconsistent utility power to nominal levels
that are safe for equipment. Unstable utility
power can be damaging to important data and
hardware. With Automatic Voltage Regulation
(AVR), damaging voltage levels are corrected
to safe levels. AVR
automatically increases
low utility power to
a consistent and safe
110/120 volts.
After the setting has been confirmed the
LCD screen will leave setup mode and go
back to status display. If there is no action
for 8 seconds during setup, the LCD will
also leave setup mode and go back to the
status display.
a. Utility High Voltage Range:
Adjust the value of high voltage range.
b. Utility Low Voltage Range:
Adjust the value of low voltage range.
c. LCD: L1/L0 (ON/OFF):
* When LCD is set to L1, LCD will be always
ON. When LCD is set to L0, LCD will dim if
untouched for 1 minute.
* In battery mode, LCD is always on
regardless if the setting is L1 or L0.
6. LCD Module Display
LCD display shows all the UPS information
using icons and messages. For more
information please review the "Definitions
for Illuminated LCD Indicators" section.
7. USB Port
The USB port allows connection and
communication between the USB port on
the computer and the UPS unit.
8. Communication Protection Ports
Communication protection ports will
protect any standard modem, fax, or
telephone line. (RJ11)
9. Circuit Breaker
Located on the side of the UPS, the circuit
breaker serves to provide overload and
fault protection.
10. Ground Screw
The ground screw is used for any equipment
that needs a chassis ground connection.
11. Outlets Designed for AC Adapters
The UPS unit has four widely-spaced
outlets. AC power adapters can be plugged
into the UPS without overlapping or
blocking adjacent outlets.
