- Page 1 Mini Horizontal Electrophoresis System Instruction Manual Catalog No. MJ-105-S MJ-105-R MT-108 Version 01E Date: 2014.3.20...
-
Page 2: Packing List
- 1x Mini Horizontal Electrophoresis System Instruction Manual Signed by: Date: Major Science is liable for all missing or damaged parts / accessories within 7 days after customer receives this instrument package. Please contact Major Science immediately regarding this issue. If no response is received within such a time period from consignee party, it will be the consignee party’s whole responsibility. -
Page 3: Table Of Contents
Table of Contents Packing list ....................1 Warning ......................3 Section 1 Introduction................6 1.1 Overview ..................... 6 1.2 Product Description ................6 Section 2 Technical Specifications ............8 Section 3 Installation Instructions ............9 Section 4 Operation Instructions ............10 4.1 Controls and Features .............. -
Page 4: Warning
Warning Major Science Mini Horizontal Gel Electrophoresis System series has been tested and found to comply with the limits for the CE regulation. Also, Mini Horizontal Gel Electrophoresis System series is RoHS compliant to deliver confident product which meets the environmental directive. These limits are designed to provide reasonable protection against harmful interference when the instrument series is operated in a commercial environment. - Page 5 of explosion, implosion or release of toxic or flammable gases arising from overheated materials. 11. The unit shall be operated only by qualified personnel. Safety Information Use high level of precaution against any electrical device. Before connecting the electrical supply, check to see if the supply voltage is within the range stated at the rating label, and see to it that the device be seated firmly.
- Page 6 Avoiding Damage to the Instrument 1. Do not attempt to operate the device if damage is suspected. 2. Protect this unit from physical damage, corrosive agents and extreme temperatures (direct sunlight, etc.). 3. For proper ventilation and safety concerns, keep at least 10 cm of space behind the instrument, and at least 5 cm of space on each side.
-
Page 7: Introduction
- Safety & Ventilation Cover/Lid - Contain 2 sets of gel maker stand for MJ-105-S and MJ-105-R Contain 1 set of gel maker stand for MT-108 - Cast 6 pcs of agarose gel in one time for MJ-105-S and MJ-105-R... - Page 8 Cast 3 pcs of agarose gel in one time for MT-108 - High temperature capability, 130°C - Easy sample loading - Great indications for gel-making and running - No tapes, clamps or springs needed...
-
Page 9: Technical Specifications

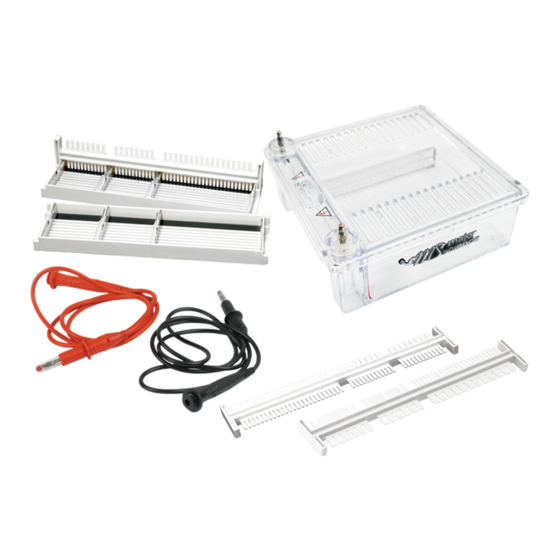

Section 2 Technical Specifications MJ-105-S and MJ-105-R MJ-105-S Appearance 1 x snow tank, 1 x transparent lid, 2 x gel maker stand, 6 x trays, 2 x combs, 1 x black & Red power cords MJ-105-R Appearance 1 x transparent red tank, 1 x transparent lid, 2 x gel maker stand, 6 x trays, 2 x combs, 1 x black &... -
Page 10: Installation Instructions
MT-108 Construction Material (Tank, Gel PC (Polycarbonate) Maker Stand, Comb and Tray) Construction Material AS (Acrylonitrile-Styrene Copolymer) (Transparent Lid) Temperature Capacity 130°C Maximum Gel Thickness 10 mm Maximum sample for MT-108 25 samples Unit Dimension (Tank and 136 x 188 x 58 mm (W x L x H) Transparent Lid) Gel Dimension for MT-108 50 x 83 mm... -
Page 11: Operation Instructions
Section 4 Operation Instructions 4.1 Controls and Features MJ-105-S MJ-105-R Cover Tank 52 x 60 mm Tray 107 x 60 mm Tray Analytical comb Analytical comb MT-108 Cover Black & Red Power Cord Tank 50 x 83 mm Tray 105 x 83 mm Tray... - Page 12 with the flask swirling once every minute. The solution should be heated until all crystals are dissolved. This is best viewed against a light background. Crystals appear as translucent crystals. These will interfere with sample migration if not completely dissolved. Note: The gel must be cooled to between 50°C and 60°C degrees before pouring.
- Page 13 This will give the fastest resolution times. For enhanced quality of resolution of the sample, we suggest filling the electrophoresis tank to 5mm above the gel. 4. Load the samples into the wells, and then attach the safety ventilation cover. Finally connect the power cords to the power supply unit.
-
Page 14: Maintenance
Section 5 Maintenance The Major Science Horizontal Electrophoresis System series can be cleaned with warm water (below 40°C) with a mild detergent no more than 20 minutes. After that, rinse with distilled water. Air-dry before use. Some cleaning agents are not supposed to come in contact with the electrophoresis systems, such as... -
Page 15: Ordering Information
MJR-Mini300 Package of MJ-105-R and Mini-300 MT-Mini300 Package of MT-108 and Mini-300 Dual Electrophoresis Packages MJSS-Mini300 Package of 2 x MJ-105-S and Mini-300 MJRR-Mini300 Package of 2 x MJ-105-R and Mini-300 MTT-Mini300 Package of 2 x MT-108 and Mini-300 MJSR-Mini300 Package of MJ-105-S &... - Page 16 MT-P01 Power Cord (Black & Red) MJ-CASTER-C contains: 2 x MJ-G01; 4 x MJ-T01; 2 x MJ-02 and 2 x MJ-C01 MT-CASTER-C contains: 1 x MT-G01; 1 x MT-T01; 2 x MT-02; 1 x MT-C03 and 1 x MJ-C01 Single Electrophoresis Packages MJS-Mini300 MJR-Mini300 MT-Mini300...
-
Page 17: Warranty
This warranty excludes damages resulting from shipping, misuse, carelessness, or neglect. Consumable parts (platinum wire) are not covered by our warranty. Major Science’s liability under the warranty is limited to the receipt of reasonable proof by the customer that the defect is embraced within the terms of the warranty. - Page 18 MEMO...
