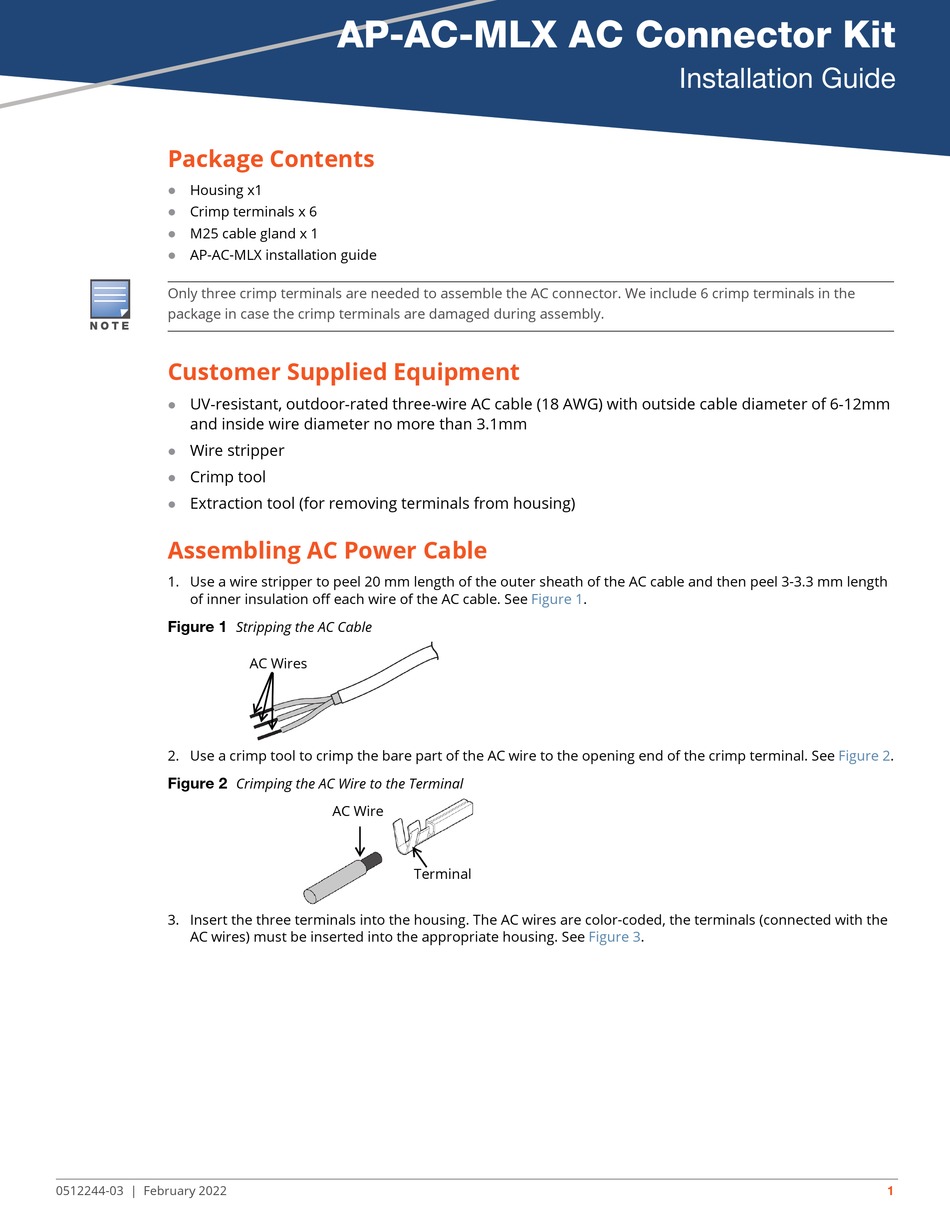

Aruba Networks AP-AC-MLX Installation Manual

Package Contents

Housing x1

Crimp terminals x 6

M25 cable gland x 1

AP-AC-MLX installation guide

Only three crimp terminals are needed to assemble the AC connector. We include 6 crimp terminals in the
package in case the crimp terminals are damaged during assembly.

Customer Supplied Equipment

UV-resistant, outdoor-rated three-wire AC cable (18 AWG) with outside cable diameter of 6-12mm

and inside wire diameter no more than 3.1mm
Wire stripper

Crimp tool

Extraction tool (for removing terminals from housing)


Assembling AC Power Cable

1. Use a wire stripper to peel 20 mm length of the outer sheath of the AC cable and then peel 3-3.3 mm length
of inner insulation off each wire of the AC cable. See
Figure 1
2. Use a crimp tool to crimp the bare part of the AC wire to the opening end of the crimp terminal. See
Figure 2
3. Insert the three terminals into the housing. The AC wires are color-coded, the terminals (connected with the
AC wires) must be inserted into the appropriate housing. See
0512244-03 | February 2022
AP-AC-MLX AC Connector Kit
Stripping the AC Cable
AC Wires
Crimping the AC Wire to the Terminal
AC Wire
Terminal
Installation Guide
Figure 1.
Figure 3.
Figure 2.
1
