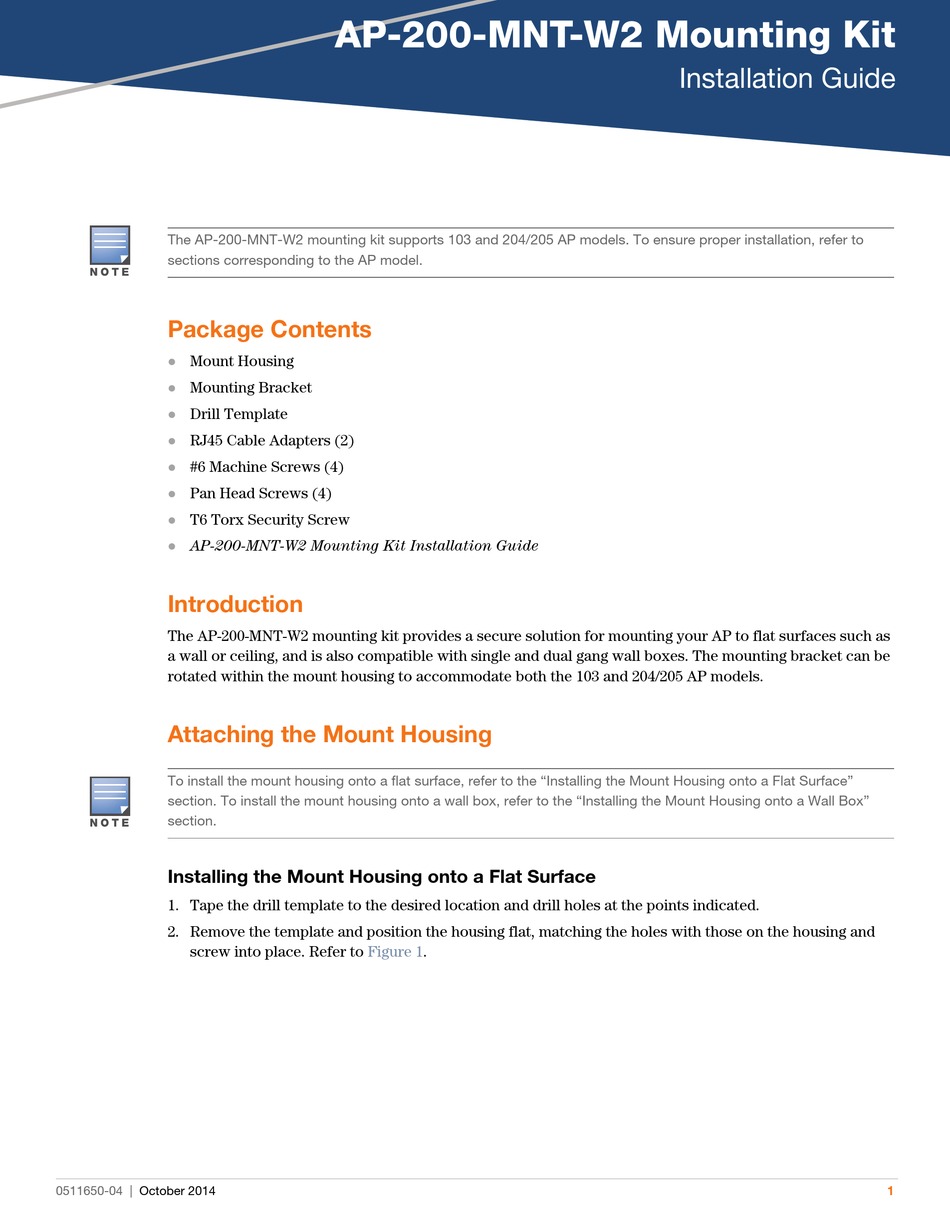

The AP-200-MNT-W2 mounting kit supports 103 and 204/205 AP models. To ensure proper installation, refer to
sections corresponding to the AP model.
Package Contents
Mount Housing
Mounting Bracket
Drill Template
RJ45 Cable Adapters (2)
#6 Machine Screws (4)
Pan Head Screws (4)
T6 Torx Security Screw
AP-200-MNT-W2 Mounting Kit Installation Guide
Introduction
The AP-200-MNT-W2 mounting kit provides a secure solution for mounting your AP to flat surfaces such as
a wall or ceiling, and is also compatible with single and dual gang wall boxes. The mounting bracket can be
rotated within the mount housing to accommodate both the 103 and 204/205 AP models.
Attaching the Mount Housing
To install the mount housing onto a flat surface, refer to the "Installing the Mount Housing onto a Flat Surface"
section. To install the mount housing onto a wall box, refer to the "Installing the Mount Housing onto a Wall Box"
section.
Installing the Mount Housing onto a Flat Surface
1. Tape the drill template to the desired location and drill holes at the points indicated.
2. Remove the template and position the housing flat, matching the holes with those on the housing and
screw into place. Refer to
0511650-04 |
October 2014
AP-200-MNT-W2 Mounting Kit
Figure
1.
Installation Guide
1
Advertisement
Table of Contents
Related Manuals for Aruba Networks AP-200-MNT-W2
Summary of Contents for Aruba Networks AP-200-MNT-W2
-
Page 1: Package Contents
Introduction The AP-200-MNT-W2 mounting kit provides a secure solution for mounting your AP to flat surfaces such as a wall or ceiling, and is also compatible with single and dual gang wall boxes. The mounting bracket can be rotated within the mount housing to accommodate both the 103 and 204/205 AP models. - Page 2 Figure 2 Attaching Cable Adapters Installing the Mount Housing onto a Wall Box 1. Route Ethernet cable(s) from the wall box and through the back of the mount housing using the openings indicated in Figure AP-200-MNT-W2 Mounting Kit | Installation Guide...
- Page 3 Figure Figure 4 Routing Ethernet Cable through Mount Housing If AP is supported by a DC power source, route power cable through the bottom-right opening of the housing. AP-200-MNT-W2 Mounting Kit | Installation Guide...
- Page 4 Figure c. Press the button at the bottom of the mount kit and slide the AP onto the mounting bracket, then release the button to fasten the AP into place. AP-200-MNT-W2 Mounting Kit | Installation Guide...
- Page 5 If Ethernet cable(s) are routed directly from a wall box skip the following step. 1. Route the Ethernet cables through the bottom openings of the housing and guide through the upper openings on the back of the housing. Refer to Figure AP-200-MNT-W2 Mounting Kit | Installation Guide...
- Page 6 (Optional) If you are using the cable adapters, route cable ends through the upper openings of the bracket. 3. Attach the AP to the mounting bracket using the following steps: a. Plug the Ethernet cables (and power cord if applicable) into their corresponding ports on the back of the AP. AP-200-MNT-W2 Mounting Kit | Installation Guide...
- Page 7 (Optional) If you are using the cable adapters, plug in the Ethernet cable into the active ports on the side of the mount. 4. Insert the T6 Torx Security Screw into the screw hole at the side of the mount, next to the release button and tighten. Refer to Figure AP-200-MNT-W2 Mounting Kit | Installation Guide...
