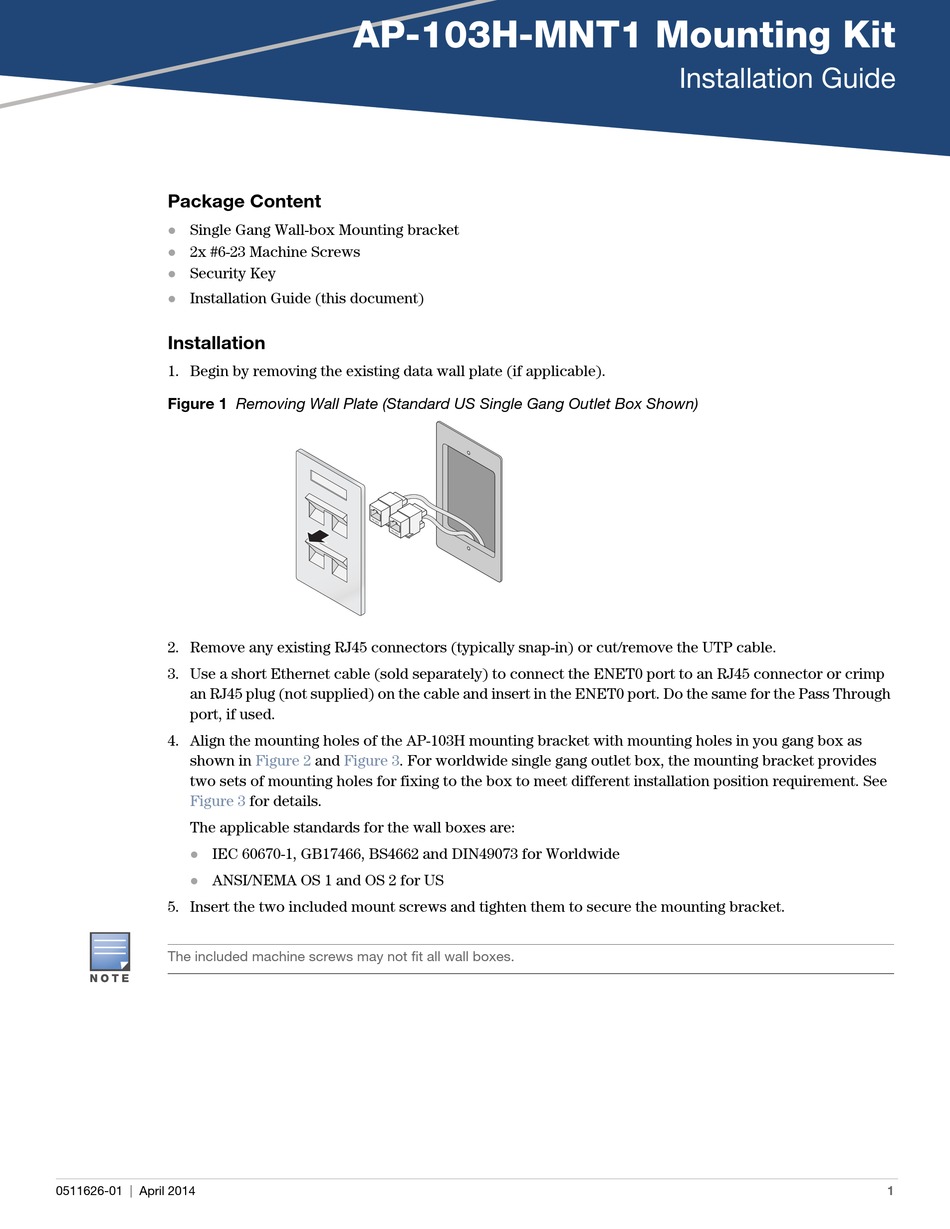

Aruba Networks AP-103H-MNT1 Installation Manual

Package Content

Single Gang Wall-box Mounting bracket

2x #6-23 Machine Screws

Security Key

 Installation Guide (this document)

Installation

1. Begin by removing the existing data wall plate (if applicable).
Figure 1 Removing Wall Plate (Standard US Single Gang Outlet Box Shown)
2. Remove any existing RJ45 connectors (typically snap-in) or cut/remove the UTP cable.
3. Use a short Ethernet cable (sold separately) to connect the ENET0 port to an RJ45 connector or crimp
an RJ45 plug (not supplied) on the cable and insert in the ENET0 port. Do the same for the Pass Through
port, if used.
4. Align the mounting holes of the AP-103H mounting bracket with mounting holes in you gang box as
shown in
two sets of mounting holes for fixing to the box to meet different installation position requirement. See
Figure 3
The applicable standards for the wall boxes are:
IEC 60670-1, GB17466, BS4662 and DIN49073 for Worldwide

ANSI/NEMA OS 1 and OS 2 for US

5. Insert the two included mount screws and tighten them to secure the mounting bracket.
The included machine screws may not fit all wall boxes.
0511626-01 | April 2014
AP-103H-MNT1 Mounting Kit
Figure 2 and Figure 3. For worldwide single gang outlet box, the mounting bracket provides
for details.
Installation Guide
1
