2200 SRM 1336
Figure 18 shows the Change/Remove password
screen. The Up Arrow/Down Arrow soft keys (i.e., 2
and 3) cycle between the privilege level(s) associ-
ated with this password. You can use the Hare soft
key (#) to cycle through the available performance
modes for this password. Press the Trash Can soft
key (4) to remove this password from the current
passwords.

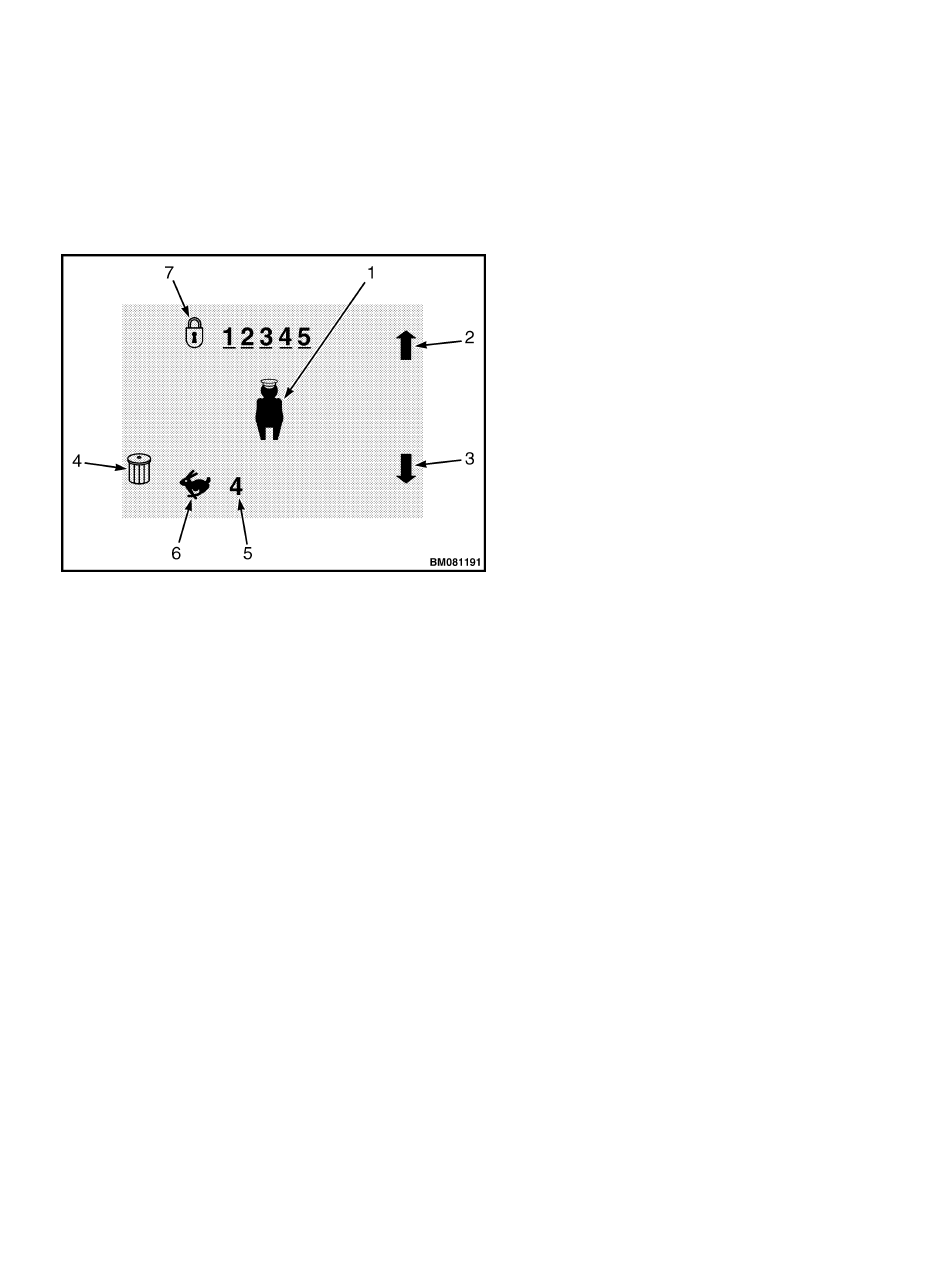

Figure 18. Change/Remove Password Screen
Legend for Figure 18
1. ICON FOR TYPE OF PASSWORD ENTERED
(OPERATOR/SUPERVISOR/SERVICE TECHNI-
CIAN)
2. UP ARROW SOFT KEY ICON
3. DOWN ARROW SOFT KEY ICON
4. "TRASH CAN" SOFT KEY ICON
5. CURRENT PERFORMANCE MODE
6. "HARE" SOFT KEY ICON
7. CURRENT PASSWORD ICON AND FIELD
In order to remove an individual password or mod-
ify the privileges associated with it, you need to
know the password number. In addition, you must
have a privilege level equal to or greater than the
privilege level of the password being modified. This
means a Service Technician can modify all pass-
words, but a Supervisor can only modify the pass-
words of Operators and other Supervisors. Table 16
shows the process for changing or removing an ex-
isting password for the lift truck.
Password Screen
69
