38115002
Assembly Instruction

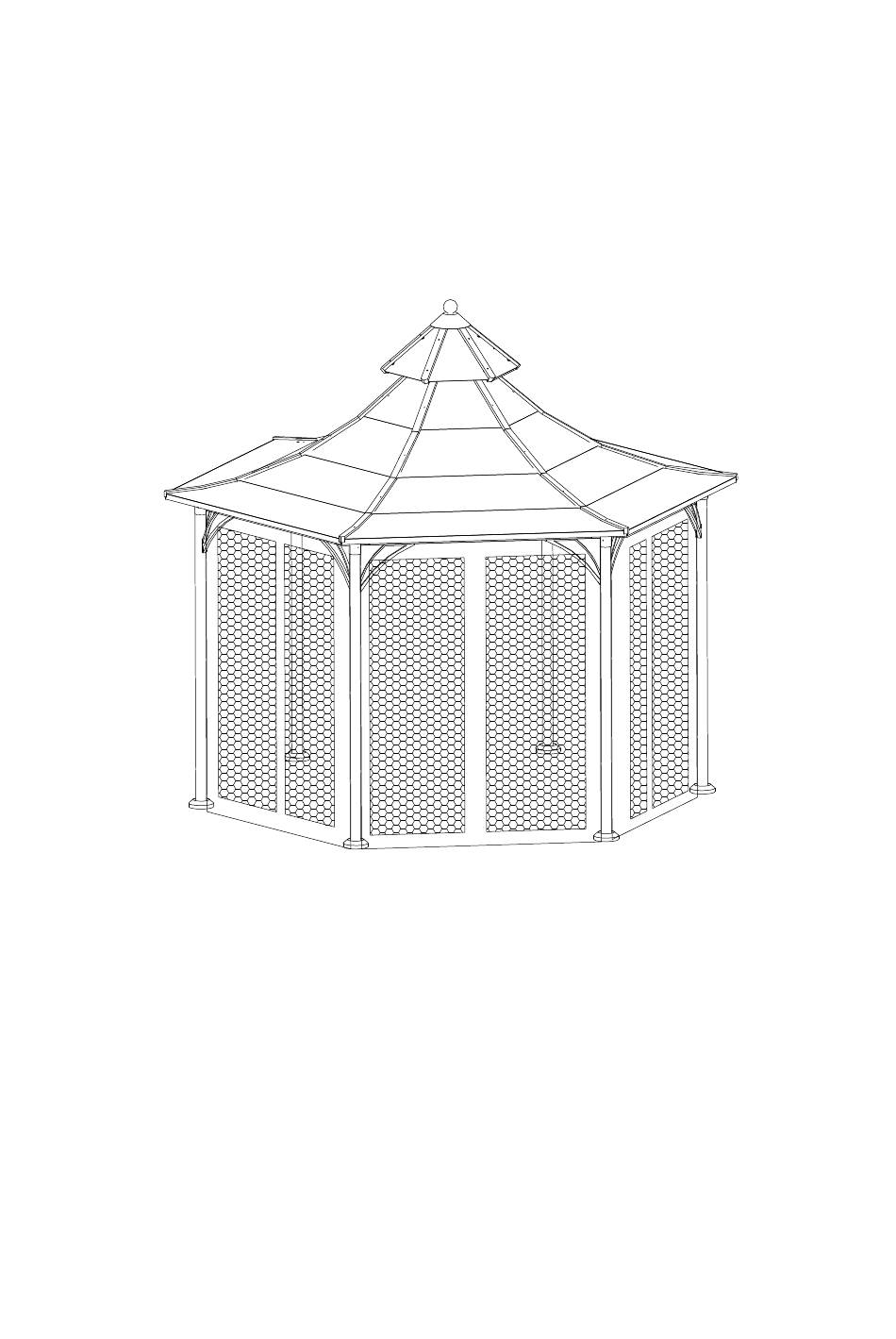

Alton Hardtop Gazebo
L-GZ324PST-1A
Congratulations– You've purchased a fine item from RONA.
Our clear, easy to follow; step by step instructions will guide you through
the project from start to finish. Feel confident that this will be a fun and
rewarding project. The final product will be a quality piece that will go
together smoothly and give years of enjoyment.
All you will need is a screwdriver, a hammer and a ladder whose height is
no less than 2.5m

Advertisement

loading
Need help?

Need help?

Do you have a question about the Alton L-GZ324PST-1A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rona Alton L-GZ324PST-1A

  • Page 1 Alton Hardtop Gazebo L-GZ324PST-1A Congratulations– You’ve purchased a fine item from RONA. Our clear, easy to follow; step by step instructions will guide you through the project from start to finish. Feel confident that this will be a fun and rewarding project.
  • Page 2: Parts List

    Parts List Beam of big roof Top support connector Big roof connector Big roof brace Small roof connection Hook Top roof beam Top roof brace Cover board of top roof Small top cover board Finial Short support bar 1 Short support bar 2 Short support bar 3 Short support bar 4 Big roof cover sheet 1...
  • Page 3 Big roof cover sheet 4 Cover board of big roof 1 Cover board of big roof 2 Pole Floor shackles Base cover Support 1 Support 2 Mosquito netting...
  • Page 4 Hardware Pack1 M6X15 Bolt TBZ00306015HQ M6 Flat washer TBZ10406HQ M6X55 Bolt TBZ00306055HQ M6 Nut TBZ20106HQ M6X35 Bolt TBZ00306035HQ M6X25 Bolt TBZ00306025HQ M6 Wrench Fig.1: Use Bolt (AA), Flat washer (BB) to connect and fasten Beam of big roof (A) with Top support connector (B).
  • Page 5 Fig.3-1: Tighten Big roof brace (D) onto Fig.3-2: Tighten Big roof brace (D) onto the the Big roof connector(C) with Bolt Top support connector (B) with Bolt (CC), (CC), Flat washer (BB), and Nut (DD) Flat washer (BB), and Nut (DD) Fig.4: Screw the hook (F) into the Small roof connection (E)
  • Page 6 Fig.5: Place Top roof beam (G) onto the Big roof connector(C), tighten them by using Bolt (AA), Flat washer (BB). Meanwhile, place the upper part of the Top roof beam (G) onto Small roof connection (E), tighten them by using Blot (CC), Flat washer (BB), and Nut (DD).
  • Page 7 Fig.9: Place the Short support bar 2 (L2) Fig.10: Place the Short support bar 4 (L4) onto the Big roof brace (D), tighten them onto the Big roof brace (D), tighten them by using Bolt (AA), Flat washer (BB) by using Bolt (AA), Flat washer (BB). Repeat the procedure for the rest Short support bars (L1, L3)
  • Page 8: Hardware Pack

    Fig.12-1: Attach the Cover board of Fig.11: Place the Big roof cover sheet 1 big roof 1 (N) onto the Big roof brace (M1) onto the Big roof brace (D) with (D) with Bolt (EE), Flat washer (BB) Bolt (AA), Flat washer (BB). Repeat the procedure for the rest cover sheets Fig.12-2: Connect the Cover board of Fig.12-3: As the illustration, please...
  • Page 9 Fig13: Hitch Base cover (R) out of the Pole Fig14: Insert the completed Pole (P) (P), and then insert the Floor shackles (Q) into the Top support connector (B), into the Pole (P), tighten them by using Bolt tighten them by Hex bolt (FF), Flat (AA), Flat washer (BB) washer (BB).
  • Page 10 Fig16: As the illustration, make Fig17: Attach the Mosquito netting (T) onto the the Base cover (R) raise up, Plastic tie Beam of big roof (A) and tie it by use (II) and fasten the gazebo by using the Stake (HH). WARNING: ...
  • Page 11 IMPORTANT: Please do not return this product to the store. For expedited replacement parts order, fax the attached completed customer service replacement form to 740 283 3549. Or send via e-mail at rona@sunjoygroup.com . Or for technical assistance call US toll free at (866) 578-6569 from 8:30am to 5:30pm EST.
  • Page 12: Instructions De Montage

    Belvédère à Toit Solide Alton L-GZ324PST-1A Fé licitations– Vous avez acheté un bon article de RONA. Nos instructions claires, faciles à suivre, é tape par é tape, vous guiderons à travers ce projet du commencement jusqu’à la fin. Soyez sûrs que ce projet sera plaisant et gratifiant.
  • Page 13: Liste De Pièces

    Liste de Piè ces Poutre du grand toit Connexion du support du Toit Connexion du grand toit Croisillon du grand toit Connexion du petit toit Crochet Poutre du toit supérieur Croisillon du toit supérieur Planchette d’abri du toit supérieur. Couvercle du petit toit Fleuron Barre de support courte 1 Barre de support courte 2...
  • Page 14 Plaque du grand toit 4 Planchette d’abri du grand toit 1 Planchette d’abri du grand toit 2 Poteau Fers du sol Couvercle de la Base Support 1 Support 2 Moustiquaire...
  • Page 15 Sachet de Quincaillerie Boulon M6X15 TBZ00306015HQ Rondelle Plate M6 TBZ10406HQ Boulon M6X55 TBZ00306055HQ Écrou M6 TBZ20106HQ Boulon M6X35 TBZ00306035HQ Boulon M6X25 TBZ00306025HQ M6 Clé Fig.1: Utilisez le Boulon (AA), la rondelle Plate (BB) pour connecter et fixer la poutre du grand toit (A) avec la connexion de support du toit (B).
  • Page 16 Fig.3-1: Fixez le croisillon du grand toit Fig.3-2: Fixez le croisillon du grand toit (D) (D) à la connexion du grand toit (C) à la connexion de support du toit (B) avec avec les boulons (CC), rondelles plates les boulon (CC), rondelles plates (BB), et (BB), et écrous (DD) écrous (DD) Fig.4: Vissez le crochet (F) dans la connexion du petit toit (E)
  • Page 17 Fig.5: Situez la poutre du toit supérieur (G) su la connexion du grand toit (C), fixez-les avec boulon (AA), rondelle plate (BB). Pendant ce temps, placez la partie supérieure de la poutre du toit supérieur (G) sur la connexion du petit toit (E), fixez avec boulon (CC), Rondelle plate (BB), et Écrou (DD).
  • Page 18 Fig.9: Situez la Barre de support courte 2 Fig.10: Placez la Barre de support courte (L2) sur le croisillon du grand toit (D), 4 (L4) sur le Croisillon du grand toit (D), fixez-les avec Boulon (AA), Rondelle fixez-les avec Boulon (AA), Rondelle plate (BB).
  • Page 19 Fig.12-1: Fixez la Planchette du Fig.11: Installez la Plaque du grand toit grand toit 1 (N) sur le Croisillon du 1 (M1) sur le Croisillon du grand toit (D) grand toit (D) avec Boulon (EE), avec Boulon (AA), Rondelle plate (BB). Rondelle plate (BB) Répétez ce procédé...
  • Page 20 Fig13: Installez le Couvercle de la base (R) Fig14: Introduisez le Poteau construit autour du Poteau (P), et introduisez les fers (P) dans la Connexion de support du du sol (Q) dans le Poteau (P), fixez-les toit (B), Fixez-les avec Boulon avec Boulon (AA), Rondelle plate (BB) Hexagonal (FF), Rondelle plate (BB).
  • Page 21 Fig16: Comme dans Fig17: Connectez le filet Moustiquaire (T) à la l’illustration ci-dessus, soulevez Poutre du grand toit (A) et attachez-le avec les (II) le Couvercle de la base (R), et Attaches en plastique fixez le belvédère avec les Piquets (HH). AVERTISSEMENT: ...
  • Page 22 740 283 3549. Ou bien, envoyez un courrier . Pour de l’assistance technique, veuillez électronique à rona@sunjoygroup.com appelez au numéro gratuit aux États-Unis (866) 578-6569 de 8h30 a 17h30, heure de l’Est.
