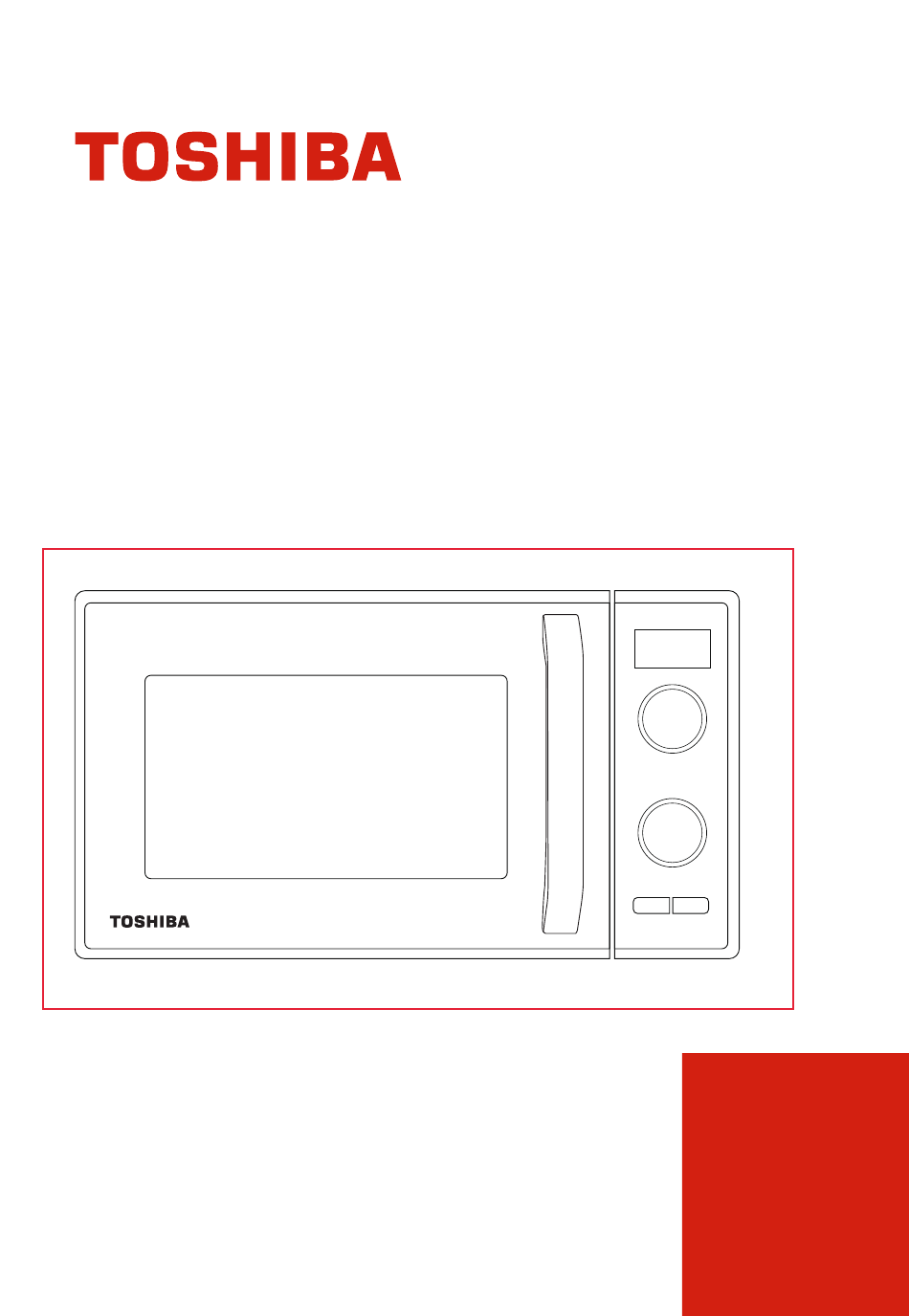

- Page 1 MICROWAVE SOLO OVEN INSTRUCTION MANUAL MW2-AG23PF(BK) Please review this instruction manual before operating.
-
Page 2: Table Of Contents
CONTENTS PRODUCT SAFETY Precautions to avoid possible exposure to excessive microwave energy ............................EN-01 Important safety instructions ........................EN-03 To reduce the risk of injury to persons grounding installation ............EN-08 Cleaning ................................EN-10 Utensils .................................. EN-11 Materials you can use in microwave oven .............................. - Page 3 9. Lock-out function for children ........................ EN-26 10. Eco function ..............................EN-27 11. Specification ............................... EN-27 12. Turntable reset function ......................... EN-27 Cleaning ................................EN-29 MAINTENANCE Troubleshooting ..............................EN-31 BEFORE OPERATING THIS PRODUCT, READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS. BE SURE TO SAVE THIS BOOKLIST FOR FUTURE NOTE REFERENCE.
-
Page 4: Product Safety
PRODUCT SAFETY PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a). Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. (b). - Page 5 SPECIFICATIONS MODEL MW2-AG23PF(BK) RATED VOLTAGE 230-240V~50Hz RATED INPUT POWER(MICROWAVE) 1250-1320W RATED OUTPUT POWER(MICROWAVE) 850-900W RATED INPUT POWER(GRILL) 1000-1050W OVEN CAPACITY TURNTABLE DIAMETER 270mm EXTERNAL DIMENSIONS 485x403x296mm NET WEIGHT Approx. 14.1 kg EN-02...
-
Page 6: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic WARNING precautions, including the following: Read and follow the maintenance shall not be specific: "PRECAUTIONS made by children without TO AVOID POSSIBLE... - Page 7 IMPORTANT SAFETY INSTRUCTIONS If the supply cord is When heating food in damaged, it must plastic or paper containers, be replaced by the keep an eye on the oven manufacturer, its service due to the possibility of agent or similarly qualified ignition.
- Page 8 IMPORTANT SAFETY INSTRUCTIONS checked before The microwave oven must consumption, in order to be operated with the avoid burns. decorative door open. (for ovens with a decorative door.) The oven should be cleaned regularly and any This appliance is intended food deposits removed.
- Page 9 IMPORTANT SAFETY INSTRUCTIONS The appliance is intended to be used freestanding. The rear surface of appliances shall be placed The appliance must not against a wall. be installed behind a decorative door in order The temperature of to avoid overheating. accessible surfaces may be (This is not applicable for high when the appliance is...
- Page 10 IMPORTANT SAFETY INSTRUCTIONS The appliances are not intended to be operated by means of an external timer or separate remote-control system. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE EN-07...
-
Page 11: To Reduce The Risk Of Injury To Persons Grounding Installation
TO REDUCE THE RISK OF INJURY TO PERSONS GROUNDING INSTALLATION This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. - Page 12 TO REDUCE THE RISK OF INJURY TO PERSONS GROUNDING INSTALLATION Electric Shock Hazard: Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded. 1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
-
Page 13: Cleaning
CLEANING Be sure to unplug the appliance from the power supply. 1. Clean the cavity of the oven after using with a slightly damp cloth. 2. Clean the accessories in the usual way in soapy water. 3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty. -
Page 14: Utensils
UTENSILS Personal Injury Hazard: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. See the instructions on " Materials you can use in microwave oven "... -
Page 15: Materials You Can Use In Microwave Oven
MATERIALS YOU CAN USE IN MICROWAVE OVEN UTENSILS REMARKS Follow manufacturer’s instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause Browning dish the turntable to break. Microwave-safe only. Follow manufacturer’s instructions. - Page 16 MATERIALS YOU CAN USE IN MICROWAVE OVEN UTENSILS REMARKS Microwave-safe only. Follow the manufacturer’s instructions. Should be labeled “Microwave Safe”. Some plastic containers soften, as the food inside gets hot. “Boiling bags” and tightly closed plastic bags should be Plastic slit, pierced or vented as directed by package.
-
Page 17: Materials Can Not Be Used In Microwave Oven
MATERIALS CAN NOT BE USED IN MICROWAVE OVEN UTENSILS REMARKS May cause arcing. Transfer food into microwave-safe dish. Aluminum tray May cause arcing. Transfer food into microwave-safe dish. Food carton with metal handle Metal shields the food from microwave energy. Metal trim may cause arcing. -
Page 18: Product Setting
PRODUCT SETTING SETTING UP YOUR OVEN NAMES OF MICROWAVE OVEN PARTS AND ACCESSORIES Remove the oven and all materials from the carton and oven cavity. Glass Tray Grill Rack( Can not be used in microwave (Can be used under all functions) Instruction Manual function and must be placed on the glass tray ) A. -
Page 19: Setting Up Your Oven
SETTING UP YOUR OVEN TURNTABLE INSTALLATION Cleaning the cooking compartment and putting the turntable in place. For new installations, make sure all packaging and shipping tape has been removed from the turntable shaft. Before using the appliance to prepare food for the first time, you will need to put the turntable in place correctly. - Page 20 SETTING UP YOUR OVEN COUNTERTOP INSTALLATION Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged. Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.
- Page 21 SETTING UP YOUR OVEN 2. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label. • Do not install oven over a range cooktop or other heat-producing appliance.
-
Page 22: Instruction For Use
INSTRUCTION FOR USE BEFORE USING FOR THE FIRST TIME The appliance may produce unpleasant odors when it is used for the first time. This section tells you what you need to do before using your microwave to prepare food for the first time. -
Page 23: Operation
OPERATION CONTROL PANEL AND FEATURES INSTRUCTION EN-20... -
Page 24: Clock Setting
This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking. Knob Instructions There are two knobs on the panel. For better operations, the manual call the left knob for parameter knob. Call the right knob for function knob. 1. -
Page 25: Kitchen Timer
Press "START/+30S" to finish clock setting. ":" will flash. • If the clock is not set, it would not function when powered. • During the process of clock setting, if you do not press "START/+30S" to confirm in 1 minutes, the oven will go back to the previous status NOTE automatically. -
Page 26: Microwave Cooking
3. MICROWAVE COOKING Turn the function knob to "10%", "30%" .."100%". It refers to microwave power. And "P10", "P30" .."P100" dispalys. Turn the parameter knob to adjust the cooking time. (The maximum cooking time is 95 minutes ) Press "START/+30S"... -
Page 27: Speedy Cooking
Turn the parameter knob to choose the cooking mode you want, and "G", "C-1" or "C-2" will display in turn. Press "START/ + 30S" to confirm. Turn parameter knob to set the cooking time. Press "START/+30S" to start cooking. Combination instructions Under the combination mode, the working cycle is 29 seconds. -
Page 28: Defrost By Weight
In microwave, grill, combination cooking or time defrost state, each press of "START/+30S" can increase 30 seconds of cooking time. 6. DEFROST BY WEIGHT When function knob poiting at "Weight Defrost", "dEF1" displays; Turn parameter knob to select the food weight. The range of weight is 100-2000g. -
Page 29: Auto Menu
8. AUTO MENU Turn function knob to "Auto Menu" to choose auto cooking. "A-1" flash; Turn parameter knob to choose the menu you need. "A-1", "A-2" ... "A-8" will display. Press "START/+30S" to confirm the menu you choose; Turn parameter knob to choose the food weight; Press "START/+30S"... -
Page 30: Eco Function
10. ECO FUNCTION Enter ECO mode: In waiting state, press " " twice within 1 second, the screen will display "ECO" for 3 seconds. After 3 seconds, the oven will enter to waiting state. If there is no operation, the screen will off after 1 minute. - Page 31 • This function only works for one completed cooking. If pause or open the oven door during cooking, the current cooking cannot enter the turntable reset function. NOTE • Under the reset state, opening the door or " " button is pressed, the oven will go back to waiting state.
-
Page 32: Cleaning
CLEANING With good care and cleaning, your appliance will retain its appearance and remain fully functioning for a long time to come. We will explain here how you should correctly care for and clean your appliance. • Scratched glass in the appliance door may develop into a crack. Do not use a glass scraper, sharp or abrasive cleaning aids or detergents. - Page 33 CLEANING APPLIANCE FRONT PLATE Hot soapy water: Clean using a dish cloth and then dry with a soft cloth. Remove splashes and patches of limescale, grease, starch and albumin immediately. Corrosion can form under these patches or splashes. Do not use glass cleaners or metal or glass scrapers for cleaning.
-
Page 34: Maintenance
MAINTENANCE TROUBLESHOOTING NORMAL Radio and TV reception may be interfered when microwave oven operating. It is Microwave oven interfering TV reception similar to the interference of small electrical appliance, like mixer, vacuum cleaner, and electric fan. It is normal. In low power microwave cooking, oven light Dim oven light may become dim. - Page 35 EN-32...
