5 Hardware interfaces

5.1 Interfaces on the I56/I56i

In figure 2 the interfaces of the I56/I56i module are to be seen

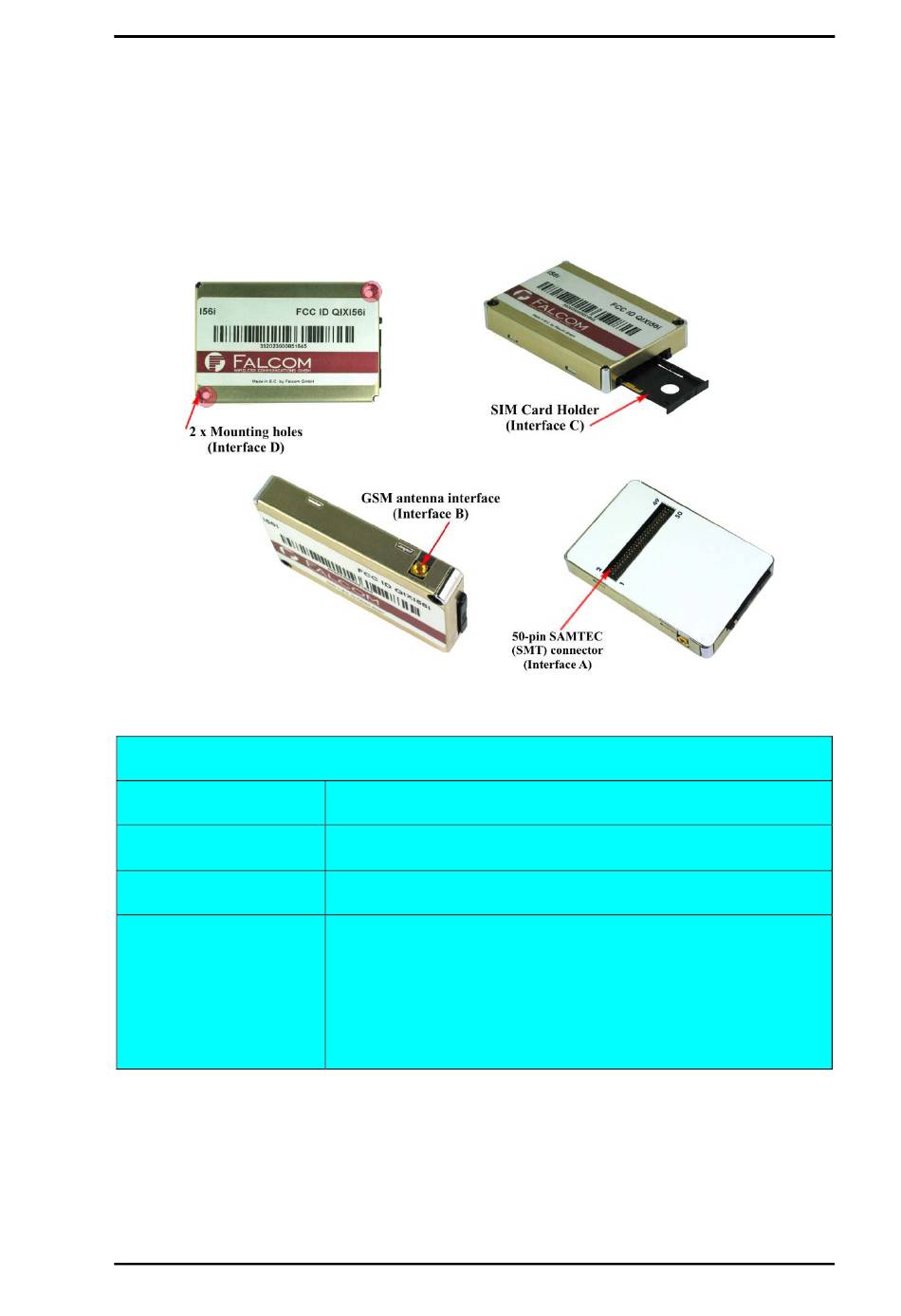

Figure 2: Provided interfaces on the I56/I56i module
Interface A
Interface B
Interface C
Interface D
Table 6: Interface specifications
This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission.
Interface specifications
50 pin connector Samtec (SMT)
GSM 50 Ω, MCCX connector
card reader for small SIM cards (3 V)
holes for fixing after mounting
recommended screws: 2.2 x 16 mm
The screw could be longer and it depends on the customer's
application.
