System Content

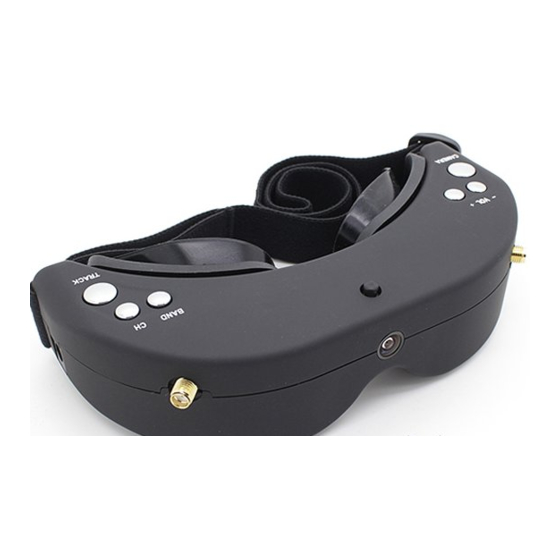

FPV GOGGLE
Carry case
Futaba data cable
JR data cable
WFLY data cable
AV cable
Power cable
5.8G 2dBi antenna X 2
Function Diagram
Operation Instruction
Wireless
The FPV Google with Built-in 5.8Ghz Diversity Receiver and diversity Antenna inputs for best reception. It working in diversity mode to achieve good signal utilization and improve the image quality.
It supports 4 Bands and total 32channels (Bands selection and Resulting Frequencies see details in Specifications)
Bands Setup
Long Press Button "BAND" to enter Bands setup (beeps indicating the current band) and press the Button "Band" again within 3 seconds to select the Bands. Different beeps refer to different Bands.
It'll return to normal working mode after 1 short beep if there is no operation within 3 seconds.
| Beep | Receiver BAND |
| 1 short beep | Band 1 |
| 2 short beep | Band 2 |
| 3 short beep | Band 3 |
| 4 short beep | Band 4 |
Channel Setup
Press Button "CH" once to select from CH1 to CH8. Different beeps refer to different channels.
| Beep | Receiver Channel |
| 1 short beep | CH1 |
| 2 short beep | CH2 |
| 3 short beep | CH3 |
| 4 short beep | CH4 |
| 5 short beep | CH5 |
| 6 short beep | CH6 |
| 7 short beep | CH7 |
| 8 short beep | CH8 |
Head Tracker
PPM Channel Setup
Press and Hold Button "TRACK", then connect power to enter Head Tracker Setup Menu (Release as soon as beep). Head Tracker beeps indicating the current PPM Channel. See details below. Short Press "TRACK" Button to select different PPM Channels. Long Press the button to enter Pan Tracking Range setting mode.
| Beep | PPM Channel |
| 1 short beep | Pan CH5,Tilt CH6 (Factory default) |
| 2 short beep | Pan CH5,Tilt CH7 |
| 3 short beep | Pan CH5,Tilt CH8 |
| 4 short beep | Pan CH6,Tilt CH7 |
| 5 short beep | Pan CH6,Tilt CH8 |
| 6 short beep | Pan CH7,Tilt CH8 |
Pan Tracking Range Setting
1 long beep refers to 90 degrees, 2 long beeps refer to 180 degrees
Short Press "TRACK" button to change the working Range with corresponding beep
Long press "TRACK" to return (with 1 short beep) PPM channel setup mode.
Please disconnect the power after setup and then reconnect to enter normal working mode.
Short press "TRACK" button is ok to setup head tracker into Center position while working.
Front Camera
The Front Camera is Wide-Angle Camera with 680X480(VGA) Resolution and good low Illumination. It's very convenient to view around without taking off the Goggles.
Press "Camera" button to open the Front Camera.
Volume
Each boot is automatically set to the lowest volume to avoid sudden loud boot.
A long beep indicates that you have reached the MAX or MIN Volume. .
Display Setup
Interpupillary distance(IPD)Adjustable
Pull the IPD Adjuster to adjust the interpupillary distance
Brightness/ contrast settings
It's easy to setup the Brightness/Contrast with the 5-direction switch. Short press is to adjust gradually, long press is to adjust continuously. It will auto saved if there is no operation within 5 seconds.
Press Center button 3 seconds to setup Brightness/Contrast to factory default.
AV input
The goggles support AV IN. The wireless model will close when the AV IN is connected to save power.
The Front Camera is ok for use under AV IN mode.
AV output
AV Out is the diversity Video and Audio output.
Earphone port is audio output for connecting earphones.
Specifications
| Binocular Display | FOV | 30 degrees (Diagonal) | |||||||
| Resolution | 854X480(WVGA), 1,229,760 color sub-pixels | ||||||||
| Brightness | 350cd/ | ||||||||
| Interpupillary distance | 60-68mm Adjustable | ||||||||
| Wireless Receiver | ISM 5.8GHz 32 Channel, Diversity receiver. | ||||||||
| Band | CH 1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 | |
| 1 | 5865M | 5845M | 5825M | 5805M | 5785M | 5765M | 5745M | 5725M | |
| 2 | 5733M | 5752M | 5771M | 5790M | 5809M | 5828M | 5847M | 5866M | |
| 3 | 5705M | 5685M | 5665M | 5645M | 5885M | 5905M | 5925M | 5945M | |
| 4 | 5740M | 5760M | 5780M | 5800M | 5820M | 5840M | 5860M | 5880M | |
| Sensitivity | -90dBm 1 dBm | ||||||||
| Antenna port | 2 X SMA,50ohm | ||||||||
| Video Standard | NTSC / PAL | ||||||||
| Video output level | 1.0Vp-p Typ / 75ohm | ||||||||
| Audio output level | 1.0Vp-p Typ / 10Kohm | ||||||||
| FOV | 120 degrees (Diagonal) | ||||||||
| Front Camera | Resolution | 640X480(VGA) | |||||||
| FOCAL LENGTH | f=0.95mm | ||||||||
| F/NO | F/NO=2.0 | ||||||||
| Head Tracker | Sensor | Magnetic, Inertial and gyro | |||||||
| Output | PPM 8 channel, Optional 5-6CH,5-7CH,5-8CH,6-7CH,6-8CH,7-8CH | ||||||||
| AV Port | Div. AV OUT(3.5mm4P) | Diversity Video Audio output | |||||||
| EAR OUT(3.5mm3P) | 32 / 75mW or 16 / 105mW, With volume control | ||||||||
| AV IN(3.5mm4P) | Video Audio input | ||||||||
| Power Supply | DC IN | DC 7 28V/ 1A | |||||||
| Power Consumption | 12V input: 4.3W | ||||||||
| Dimensions | 168(L)X92.5(W)X41(H)mm (Not include prominent part) | ||||||||
| Weight | g | ||||||||
| Operating Temperature | 0 + 55 | ||||||||
