Summary of Contents for SkyZone SKY02
- Page 1 SKYZONE www.tecnic.co.uk...
-
Page 2: User Manual

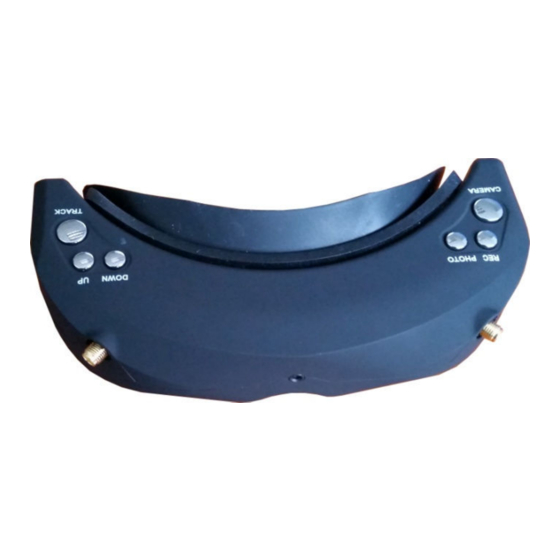

SKY02 3D FPV GOGGLE USER MANUAL System Content FPV GOGGLE Carry case... - Page 3 SKY201 Transmitter SKY301 Camera 5.8G 2dBi antenna X 4 Futaba data cable JR data cable WFLY data cable AV cable Power cable 2P TX Power cable 6P Camera cable 3P TX Remote control cable...
-
Page 4: Function Diagram
Function Diagram Operation Instruction The FPV Goggles SKY02 with Built-in 5.8Ghz Diversity Receiver and diversity Antenna inputs and two independent video display modules can bring you the 3D Vision FPV experience of flying. It requests the 3D camera SKY301 and the dual transmitter SKY201. The two lens 3D camera that using the parallel shooting method will bring you strong 3D vision for close-range shooting and weaker for long-distance shooting. - Page 5 compatible to SKY201 and most of other transmitters. It supports 4 Bands and total 32channels (Bands selection and Resulting Frequencies see details in Specifications） Quick Start Guide Preparation: · Install the lens, lens hood, antennas and the TF card Connect the camera and transmitter and then power the transmitter and FPV goggles ·...
-
Page 6: Front Camera
Short press to switch to Front Camera mode in any mode · Long press 3 seconds to fast switch to 2D from 3D RF Mode · RF mode 3D mode · 3D mode in RF mode, and will be in 2D in all other modes. ·... - Page 7 CH8。 Pan Tracking range ：180degree（L90/R90） 、120degree（L60/R60） 、90degree（L45/R45） ， · Default90degree Tilt Tracking range ：120degree（UP60/DOWN60） 、90degree（UP45/DOWN45） 、60degree · （UP30/DOWN） ，Default 90degree Pan Correction ：setup for compensating Pan center offset，0～10 levels， actual angles refers to · rotation angle of the cradle head Tilt Correction ：setup for compensating Tilt center offset，0～10 levels，...
-
Page 8: Format Sd Card
AV input · The goggles support AV IN. The wireless model will close when the AV IN is connected to save power. · Please plug off the AV IN cable if playback,and don't plug in while playing otherwise it will exit automatically. - Page 9 · POWER:DC IN power, screen displays <DC IN>，Power by battery，it is ok to select from 2S, 3S, 4S, 5S, 6S, and displayed on the screen， indicates full power， indicates low power · CHANNEL ： Displayed in 3D Mode. When enable Custom mode in 3D mode ，Band and Channeled of RX1/RX2 will also displayed ，Displayed BAND and CH in 2D Mode Transmitter Operation Instruction ·...
- Page 10 Specifications (SKY301) 85 degrees (Diagonal) F/NO F/NO=3.0 Resolution 720X576 Video Standard Video output level 1.0Vp-p Typ. / 75ohm Audio output level 2.0Vp-p Typ. / 10Kohm Power supply DC 5.0V/ 0.5A Power Consumption 1.6W Dimensions 65(L)X30(W)X28(H)mm Weight Operating Temperature 0 ～+60 Specifications (SKY201) Modulate Wideband FM Modulate...
- Page 11 6.5MHz Power supply DC 7.0V～26V/ 1.5A Power Consumption 12V input: 7.5W Dimensions 59(L)X46(W)X16(H)mm (Not include prominent part) Weight Operating Temperature 0 ～+70 Specifications (SKY02) 30 degrees (Diagonal) Binocular Resolution 854X480(WVGA), 1,229,760 color sub-pixels Display Brightness 350cd/㎡ Interpupillary 57.5-69mm Adjustable distance（IPD）...
- Page 12 ISM 5.8GHz 32 Channel, Diversity receiver. Preset CH 1 Frequen 5733M / 5771M 5752M / 5790M 5809M / 5847M 5828M / 5866M Band CH 1 Custom 5825 5805 5785 5765 5745 5725 5865M 5845M Frequen 5771 5790 5809 5828 5847 5866 Wireless 5733M...
- Page 13 EAR OUT(3.5mm3P) Stereo 16Ω/150mW AV IN(3.5mm4P) Video、Audio input DC IN DC 7～26V/ 1A Power Supply Power 12V input: 5.4W Dimensions 168(L)X92.5(W)X41(H)mm (Not include prominent part) Weight Operating Temperature 0 ～+60...
