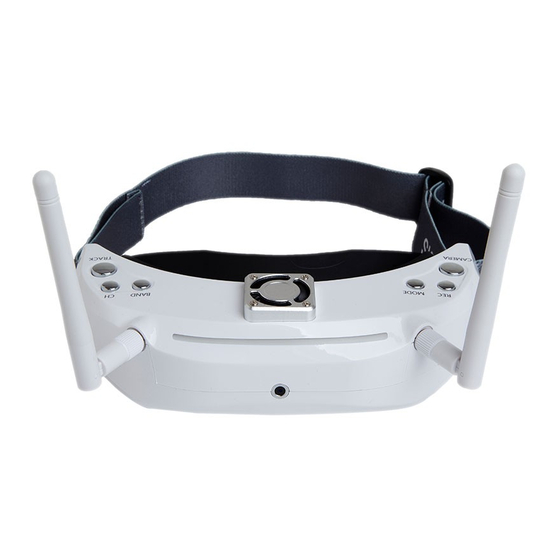

- Page 1 SKYZONE SKY03 FPV GOGGLE USER MANUAL Rev1.0...
-
Page 2: System Content
System Content GOGGLE Carry case ... -
Page 3: Function Diagram
Function Diagram 2 ... -
Page 4: Operational Guidance
The two 5.8GHz wireless receiver modules, the two independently workable display modules and the new DVR system used to support the 2D & 3D display modes are built in the SKY03 FPV goggles. The wireless receiver system can work in the diversity receiver mode to improve the receiving effect. In this mode, the channel and band settings for wireless receiver can be compatible with most of the conventional ISM 5.8GHz transmitters, in order to... - Page 5 · Short press the <CH Search> button to perform the channel search (repeatedly). The search function is performed from low to high according to the frequency. After searching for 48 channels, the camera will automatically work on one channel with the strongest signal. The signal strength of the channels is shown in the histogram.
-
Page 6: Front Camera
REC Button: · In the RF and AV IN modes, short press the button to record the video, and and then short press the button again to stop recording the video. · The REC Button is set as the OK button in the MENU status. ·... - Page 7 The recording function can also manually be stopped in the recording process. · Cyclic recording：Overwriting of older recordings on or off (in case of storage space is wasted). · The video recording file will be automatically divided into the multiple files. In the menu system, the video length can be set as: 5 minutes, 10 minutes, 20 minutes and 30 minutes.
-
Page 8: Led Light
<Tilt> represents the reverse of the channel; and <Pan & Tilt> is reversed in both directions. LED Light · SKY03 has a display window for the LED light. The LED MODE can be set in the system menu. A variety of lighting effects can be selected. -
Page 9: Format Sd Card
in the image setting menu, in order to achieve the personalized display effects. · Press the <OK> button on the function option to enter into the adjustment state; press the <UP/DOWN> button to adjust the size and display the adjustment effect in real time on the image; press the <ESC> button to return to the previous menu. -
Page 10: Specifications
Specifications 43 degrees (Diagonal) Resolution 800X600(SVGA), 1,440,000 color sub-pixels 200cd/㎡ Binocular Brightness Display Interpupillary 57.5 to 69.5mm Adjustable distance (IPD) 3D Display Side-by-Side(half) ISM 5.8GHz 48 Channel, Diversity receiver. Band CH 1 5865M 5845M 5825M 5805M 5785M 5765M 5745M 5725M 5733M 5752M 5771M...
