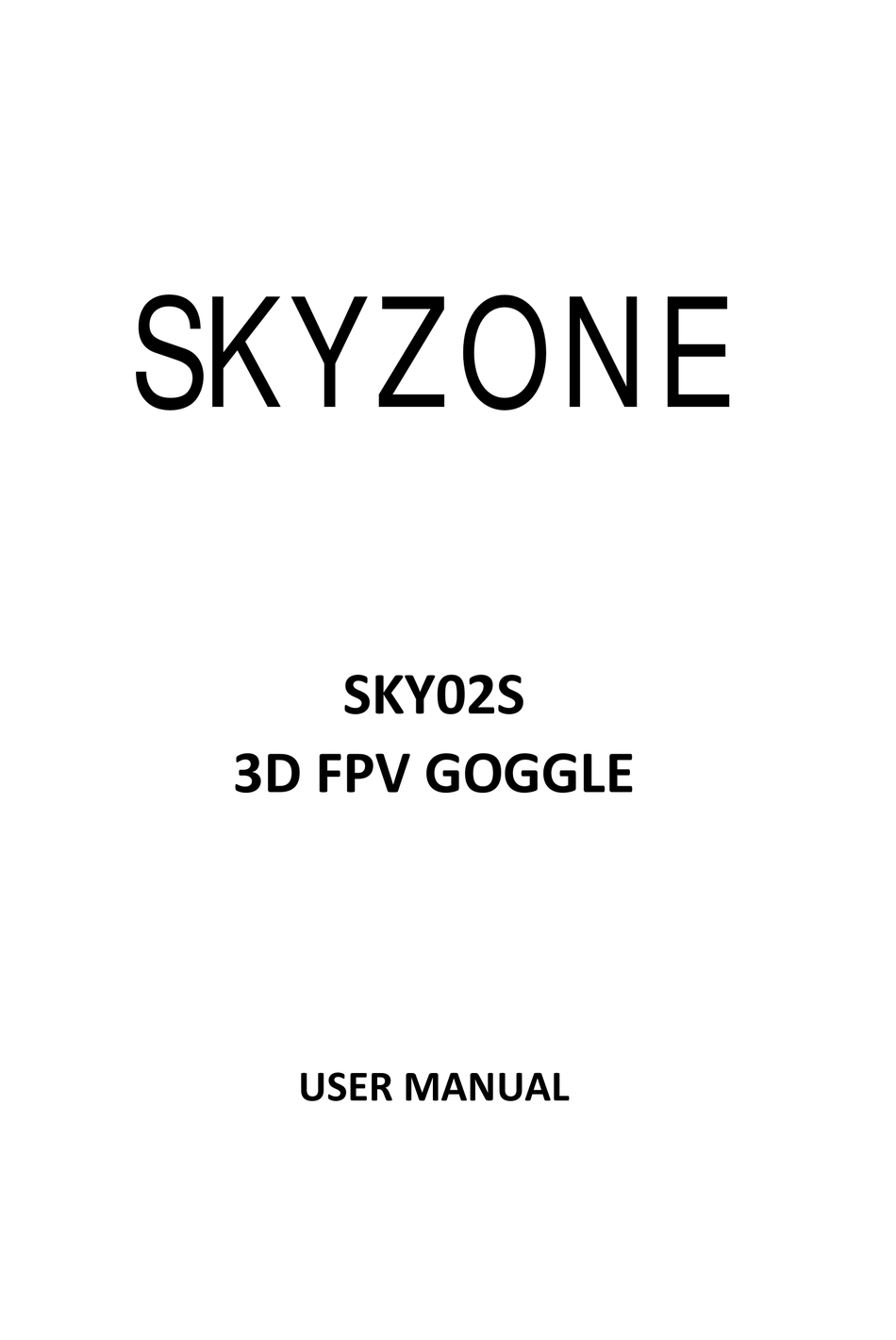

SKYZONE
SKY02S
3D FPV GOGGLE
USER MANUAL








Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SKY02S and is the answer not in the manual?

Questions and answers

Summary of Contents for SkyZone SKY02S

  • Page 1                   SKYZONE    SKY02S  3D FPV GOGGLE           USER MANUAL     ...
  • Page 2 System Content                                                                                                 ...
  • Page 3 Function Diagram                                                                                           ...
  • Page 4: Quick Start

    3D effect can be enhanced for close shot and reduced for long shot, bringing people an overall vivid visual experience. SKY02S FPV glasses can also work in routine diversity reception mode. In such mode, it displays common 2D images. Its radio channel and band settings may be compatible with STX202 and other 5.8GHz transmitters, and in total it supports 5 bands and 40 channels (see the Specifications Description for details).
  • Page 5 After exiting from the search menu, the device can work in the current search to the channel. · Functions of Buttons (For the functions of buttons in playback mode, see the description in the “Playback” section) TRACK Button: · In normal mode, press short to reset the head tracker. ·...
  • Page 6: Front Camera

    · Press the <CHANNEL> button to adjust channels and <BAND> button to adjust bands in circular manner, then the screen will display BAND, CH and frequency. · Such mode support channel search. Front Camera · The font camera of such FPV glasses has VGA resolution and good low illuminance, enabling to easily observe surroundings very easily without taking off the glasses.
  • Page 7 · You may use the Record function in both RF mode and AV IN mode. In normal state, the screen will display < > and SD Card Capacity Information; in such case, you may press the <REC> button to activate video recording; then the device will activate video recording with the icon < >...
  • Page 8: Format Sd Card

    AV OUT · The AV OUT port outputs the audio and video signals of diversity reception. · The earphone port may connect with a headset. When this device is powered on every time, be sure to minimize the volume of the headset in order to prevent large noise from affecting your hearing. Format SD Card ·...
  • Page 9 Transmitter Operation Guide · When mounting the antenna, please carefully check if the antenna port matches the transmitter port, do not connect it to power supply unless it is installed securely; otherwise, the transmitter may be damaged due to wrong installation. ·...
  • Page 10 Specifications (SCAM302)                                                                              FOV  120 degrees (Diagonal) ...
  • Page 11   Specifications (SKY02S)                                                                               ...
