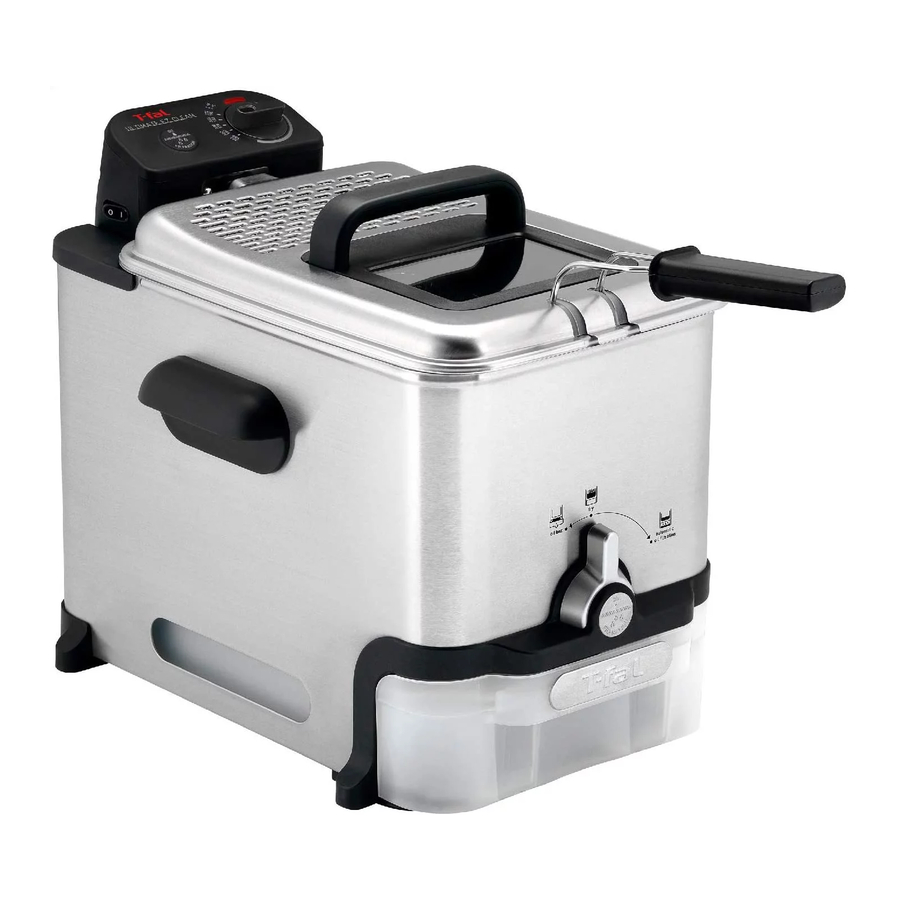

T-fal FR8000 Deep Fryer Manual

www.t-fal.com

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions before using.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electric shock, do not immerse cord, plugs or fryer in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Extreme caution must be used when moving fryer containing hot oil.
12. Always attach plug to appliance first (depending on model), then plug cord in the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
13. Do not use appliance for other than intended use.
14. Be sure handles are properly assembled to basket and locked in place. See detailed assembly instructions.
15. SAVE THESE INSTRUCTIONS
    FOR HOUSEHOLD USE ONLY.
16.
    POSSIBLE ERUPTION. WATER'S REACTION TO HOT OIL IS EXTREMELY VOLATILE. PLEASE ENSURE, NO MATTER WHAT THE RECIPE STATES, FOOD MUST BE DRIED THOROUGHLY BEFORE IMMERSING IN HOT OIL.
17. Before use, check that your local voltage corresponds with the specifications shown on the appliance nameplate located under the appliance.
18. Only connect the appliance to electrical sockets which have a minimum load of 15A. If the sockets and the plug on the appliance should prove incompatible, get a professionally qualified technician to replace the socket with a more suitable one.
19. This electrical equipment operates at high temperatures which may cause burns. Do not touch the hot surfaces of the appliance (lid, plastic parts...).
20. To ensure safe operation, oversized foods must not be inserted into the appliance.
21. Do not overload the pan. For safety reasons never exceed the maximum quantity.
22. The cooking times are given as guidelines only.
23. Do not leave the cord hanging.
24. Do not unplug the appliance by pulling on the cord.
25. Always unplug the appliance immediately after use, when moving it and prior to any cleaning or maintenance.
26. In the event of fire, never try to extinguish the flames with water. Unplug the appliance. Close the lid, if it is not dangerous to do so. Smother the flames with a damp cloth.
27. Do not move the appliance when it is full of hot food.
28. Never immerse the appliance in water!
29. This appliance is not suitable for recipes with a high-liquid content (eg. soups, cookin sauces...).
30. Never turn on the appliance if the cooking pan is empty.
31. Do not overfill the cooking pan, never exceed the indicated quantities or maximum food level mark (for French fries only).
32. Ensure that the lid and bowl are completely dry after washing and before use.
33. The oil level must always be between the Min. and Max. markings.
34. Never operate your fryer without any oil.
35. This model is equipped with a permanent metallic filter, which does not need to be changed.
36. This appliance is not intended to be operated using an external timer or separate remote control system.
37. This appliance is not designed to be used by people (including children) with a physical, sensory or mental impairment, or people without knowledge or experience, unless they are supervised or given prior instructions concerning the use of the appliance by someone responsible for their safety. Children must be supervised to ensure that they do not play with the appliance.
38. If you have any problems, contact the authorized after-sales service or the internet address www.t-fal.com.

POLARIZATION INSTRUCTIONS (USA)

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

SHORT CORD INSTRUCTIONS

Do not use with an extension cord. A short power-supply cord is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.

Description

*Depending on model

1. Lid
   1. Permanent filter
   2. Handle
   3. Viewing window
2. Removable control unit and heating element
3. Frying basket
   1. Handle
   2. MAX food level marker
4. Removable bowl
5. MIN and MAX oil level markers
6. Hook to maintain basket in drainage position
7. Fixed oil filter grid
8. Safety carrying handles
9. Oil box control button
10. Housing
11. Oil box
    1. Lid
    2. Cap
12. Power cord
13. Feet
14. Panel
    1. On/Off switch
    2. Adjustable thermostat
15. RESET function
16. Filtration valve

RESET function

• Your appliance is equipped with an overheating security feature if you use your fryer without oil. If the overheat function is activated, the appliance will shut off automatically. Wait until the heating element has completely cooled (at least 30 min).
• To reset the fryer, push the RESET button (found on the back of the control unit) with a toothpick or similar nonmetallic object after the bowl has been filled with oil.
• If the overheating security feature is activated several times, please contact the T-FAL Consumer Service Department for assistance.

Filtration, drainage and automatic storage of oil/shortening

Your fryer is fitted with an exclusive and patented system for filtration and automatic drainage, suitable for most types of oils and shortenings used for cooking.

• The drainage of oil is completely automatic and safe.
• The automatic patented filtration system ensures your oil/shortening stays clean and lasts longer for healthier frying.
• The Oil box container enables you to store your oil and keep it until next use and to avoid any transfer of flavors.

Ultra easy cleaning

Your fryer is easy to handle and to dismantle.

• All the parts (except the control unit) are dishwasher safe.
• Thanks to the patented automatic filtration and oil storage system, your fryer can go into the dishwasher after each use, making it clean as new after each use.

Using the Oil box container control button

The Oil box control button has 3 positions.

fig. 1

• Fry Position: to fry.
• Automatic Oil Filtration Position: to drain and filter the oil into the oil box.

  fig. 3
• Oil box Position: to allow for removal of the oil box container.

  fig. 4

Before first use

The fryer can be completely dismantled (apart from the control unit).

• Remove the lid. Remove the frying basket, the control unit and the bowl. Remove the oil box by positioning the Oil box control button on the Oil box position. Fig. 5

  fig. 5
• Clean the lid, the bowl, the housing, the frying basket and the Oil box with soap and water or put them in the dishwasher. Fig. 6

  fig. 6
  Do not immerse the control unit with the heating element in water.
• Clean the control unit separately with a sponge.
• Dry thoroughly.
• After cleaning, press on the filtration valve under the fryer to release any water in the bowl. Fig. 7

  fig. 7
  Check that the filtration valve has been reset to its initial position.
• Position the bowl and the control unit. Fig. 8

  fig. 8
• Place the Oil box control button on the Oil box position and insert the empty Oil box into the fryer. Fig. 9

  fig. 9
• Turn the control button to the Fry position. Fig. 13.

  fig. 13
• Completely unfold the basket handle; a "click" indicates that it is correctly positioned. Fig. 10

  fig. 10
  Make sure that the control unit is correctly positioned otherwise the fryer cannot function.

Preparing the fryer

• Ensure that the oil box is in place and empty.
• Place the Oil box control button on the Fry position.
• Fill the bowl with oil. We recommend that you use oil.
  Never use different types of oil at the same time as this may cause the oil to overflow.
• The oil level should always be between the MIN and MAX level of the bowl. Fig. 11.

  fig. 11
• Do not exceed the maximum fill line as boiling oil may overflow during frying and can cause severe burns.

  	Oil	Solid vegetable fat
  Max.	14 cups / 3.5 L	6.55 lbs / 2970 g
  Min.	12 cups / 2.8 L	5.55 lbs / 2520 g

• For best results we recommend vegetable oil.
• If you use solid vegetable shortening (not recommended): Cut it into small pieces, melt it in a separate pan then pour the melted shortening into the fryer bowl.
  Never melt the shortening on the heating element or in the frying basket. However, we do not recommend the use of solid vegetable fat. If you melt the shortening on the heating element or in the frying basket, the safety cut-out would be activated. Press the "reset" button, which is located at the back of the fryer.

Frying process

• Ensure that the oil box control button is set to the Fry position Fig. 2.

  fig. 2
• After the bowl has been filled with oil, plug in the fryer without the frying basket. Set the On/Off switch button to position 1 and the temperature indicator light will switch on. Turn the adjustable thermostat to the desired temperature (see cooking tables).
  Do not plug in the fryer without oil.
• The fryer will now start to heat the oil.
  No matter what the recipe, food must be dried thoroughly before frying. This will prevent the oil from overflowing and extend the life of the oil.
• Note: the temperature indicator light will switch off when the desired temperature is reached.

  	Fresh potato or French fries	Frozen potato or French fries
  Maximum safety capacity	2.65 lbs / 1.2 kg (in 2 batches)	2 lbs / 900g
  Recommended capacity	1.3 lbs / 600 g	1 lb / 450g

• Place food in the basket without overfilling. Notice the MAX food level marking on the basket. Reduce the quantities for frozen foods.
  During cooking, it is normal for the temperature light to go on and off.
• After the temperature light has turned off, place and lower the basket slowly into the frying oil. Plunging the basket too rapidly in the oil may cause it to overflow.
• Put the lid on the fryer.
  Do not touch the fryer when it is in use as it will be extremely hot and can cause severe burns.
• Frying is complete when the cooking time has elapsed and food is the desired color and texture.
• Remove the lid carefully to avoid condensation (drops of water) dripping into the oil.
  Steam coming from the filter is also extremely hot.
• Allow excess oil to drain by hooking the basket on the support on the inner bowl, (Marker 6).
• Do not cover the basket with the lid.
• Serve.
• When you have finished frying foods, set the On/Off switch on the O position.
• Unplug the appliance and let it cool for about 3 hours. For filtering and draining the oil, see the section on Cleaning and Maintenance.

Cooking tables

The cooking times are a guide only. They could vary depending on quantity, taste, electricity supply etc...

• It is important to fry hand made French fries twice for best results and to prevent the oil from overflowing:
  • a first cycle at 320°F/160°C
  • a second cycle at 374°F/190°C
• For safety and for the crispiest results, dry food items thoroughly before frying, especially frozen foods and freshly made fries.
• Never pour frozen food directly from the packet into the basket or over the oil box.
• Large pieces of chicken or large fries need a longer cooking time.
• Set the temperature thermostat according to the table below, or follow the instructions on food packaging.
• Cooking tip: To prevent food from sticking together, do not use the basket when cooking battered foods or doughnuts.

We recommend that you:

• clean your oil after each use to avoid burnt crumbs
• change your oil regularly.

For quality and fast cooking, limit the quantity of French fries to 1/2 a basket at a time.

Cleaning and Maintenance

For your safety, the appliance automatically drains all kinds of oils (or solid shortenings) (in filtering position) when it is cool enough (approximately 3 hours after the last cooking).
Make sure that the oil container is empty before draining the fryer.

• When finished cooking, turn the Oil box control lever to the Automatic oil filtration position. Fig. 12.

  fig. 12
• Once the filtration is finished, you can store the container:
  Carry the container with both hands.
  Store it in a cool dry place away from the light and especially from humidity.
  • In the appliance: Turn the Oil box control leveron Fry position. The appliance must be carried and transported flat. Fig. 13.

    fig. 13
  • Out of the appliance: Turn the Oil box controllever to the Oil box position and then remove the container. Transport it with care. Fig. 14.

    fig. 14
    Never put the Oil box in the microwave oven.
• Store oil in a cool dry place, ideally at room temperature.
• To re-use the oil, remove the container with care.
• Unscrew the oil box cap and empty the oil in the fryer bowl.

  fig. 15
  Do not pour used oil in the sink.
• For the solid shortening (not recommended), remove the lid from the container. Turn the container over and press it to loosen the shortening. Cut it into pieces and melt it in a separate pan. Then, pour it into the bowl.
• Insert the empty container in the fryer, with its lid and cap. Place the Oil box control button on the Fry position.
• The lid, bowl, housing, frying basket and the Oil box are dishwasher safe. Fig. 6. Clean the control unit separately with a sponge.
  Before filling the fryer bowl, always check to ensure the filtration valve has been reset to its original position; if not, check that its metal housing has not been damaged in any way.

Troubleshooting

If your fryer does not work properly:

TEFAL/T-FAL* INTERNATIONAL LIMITED GUARANTEE

: www.tefal.com
This product is repairable by TEFAL/T-FAL*, during and after the guarantee period.
TEFAL/T-FAL endeavours to keep most of the stock of the spare parts available for the repair of your product for up to 5 to 7 years on average, from the last date of production.
Accessories, consumables and end-user replaceable parts can be purchased, if locally available, as described on the TEFAL/T-FAL internet site www.tefal.com

The Guarantee

TEFAL/T-FAL guarantees this product against any manufacturing defect in materials or workmanship during the guarantee period within those countries*** as stated in the country list on the last page of the user manual, starting from the initial date of purchase.

The international manufacturer's guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At TEFAL/T-FAL's choice, a replacement product may be provided instead of repairing a defective product. TEFAL/T-FAL's sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.

Conditions & Exclusions

TEFAL/T-FAL shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase. The product can be taken directly in person or must be adequately packaged and returned, by recorded delivery (or equivalent method of postage), to a TEFAL/T-FAL authorised service centre. Full address details for each country's authorised service centers are listed on TEFAL/T-FAL website (www.tefal.com) or by calling the appropriate consumer Service centre set out in the attached country list. In order to offer the best possible after-sales service and constantly improve customer satisfaction, TEFAL/T-FAL may send a satisfaction survey to all customers who have had their product repaired or exchanged in a TEFAL/T-FAL authorised service centre.

This guarantee applies only for products purchased and used for domestic purposes and will not cover any damage which occurs as a result of misuse, negligence, failure to follow TEFAL/T-FAL instructions, or a modification or unauthorised repair of the product, faulty packaging by the owner or mishandling by any carrier. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following:

• using the wrong type of water or consumable
• damages or poor results specifically due to wrong voltage or frequency as stamped on the productID or specification
• scaling (any de-scaling must be carried out according to the instructions for use)
• accidents including fire, flood, thunderbolt etc
• mechanical damages, overloading
• ingress of water, dust or insects into the product
• damage to any glass or porcelain ware in the product
• professional or commercial use

Consumer Statutory Rights

This international TEFAL/T-FAL guarantee does not affect the Statutory Rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from State to State or Country to Country. The consumer may assert any such rights at his sole discretion.

** *Where a product purchased in one listed country and then used in another listed country, the international TEFAL/T-FAL guarantee duration is the one in the country of usage, even if the product was purchased in a listed country with different guarantee duration. The repair process may require a longer time if the product is not locally sold by TEFAL/T-FAL. If the product is not repairable in the new country, the international TEFAL/TFAL guarantee is limited to a replacement by a similar or alternative product at similar cost, where possible.

* TEFAL household appliances appear under the T-FAL brand in some territories like America and Japan. TEFAL/TFAL are registered trademarks of Groupe SEB.
