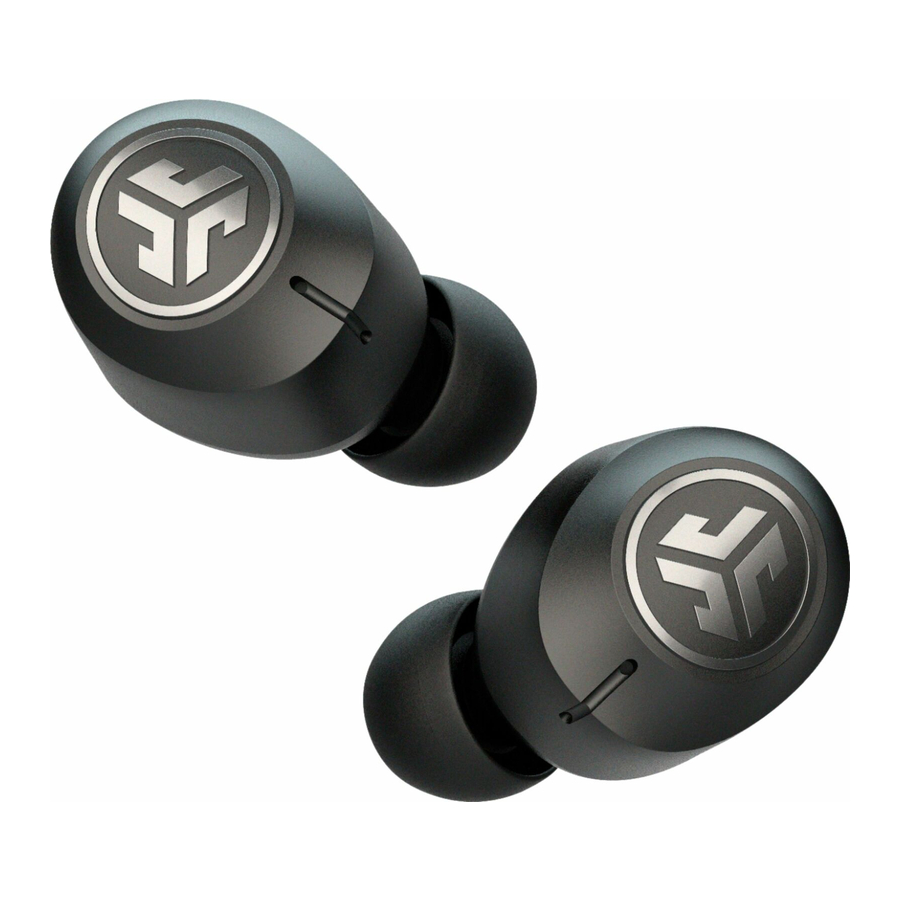

JLab Earbuds JBuds Air Manual

YOUR SATISFACTION IS GUARANTEED
You may exchange or return merchandise within 30 days of the purchase date. Please return the item to the location you purchased it. If your item has been opened or used, restrictions may apply.

YOUR WARRANTY
You may register your product at jlabaudio.com/register. All warranty claims are subject to JLab Audio authorization and at our sole discretion. Retain your proof of purchase to ensure warranty coverage.

CONTACT US
Reach out to us at support@jlabaudio.com or visit jlabaudio.com/contact.

FIRST TIME SETUP: BLUETOOTH PAIRING

AUTO-CONNECTING EARBUDS

Press and hold 3+ seconds on both buttons.
White lights will flash to indicate earbuds are automatically pairing to each other.

CONNECTING TO BLUETOOTH

Once earbuds pair, the right earbud will flash blue and white indicating the earbuds are ready to pair to your Bluetooth device.
Left earbud will be solid white.

Select "JLab JBuds Air" in your device settings. Voice prompt "Bluetooth connected" followed by solid white lights will indicate you are connected. You will now be ready to use your JBuds Air.

PAIRING NEW / ADDITIONAL BLUETOOTH DEVICES

When earbuds are powered off, press and hold Right Earbud button 10+ seconds. The earbud will flash blue and white indicating it is ready to pair to your Bluetooth device. Once connected, turn on Left Earbud to auto connect both earbuds.

ACCESSORIES

3 GEL TIP SIZES

2 CUSH FINS™

USB CABLE

CHARGING CASE

BUTTON FUNCTIONS

TURN ON / OFF:
Press & hold 5+ seconds.
VOLUME DOWN: 1 click.
PLAY / PAUSE: 2 clicks.
TRACK BACK:
Press & hold 1+ second.

TURN ON / OFF:
Press & hold 5+ seconds.
VOLUME UP: 1 click.
ANSWER: 1 click. HANGUP: 2 clicks.
REJECT INCOMING CALLS:
Press & hold 1+ second.
SIRI (iOS) or "OK GOOGLE" (ANDROID):
2 clicks.
TRACK FORWARD:
Press & hold 1+ seconds.

VOICE PROMPTS

"Hello": Power ON
"Earbuds joined":
Earbuds paired to each other
"Ready to Pair": JBuds Air are ready to pair to Bluetooth device
"Bluetooth Connected":
Earbud is connected to device
"Battery Full": 100-75%
"Battery Medium": 75-25%
"Low Battery": Less than 25%
When power decreases to 10%, "Low Battery" will play
"Goodbye": Power OFF

EQUALIZER MODES

Click either the right or left earbud 3 times for different EQ settings (JBuds Air will cycle 3 EQ settings).

JLab SIGNATURE
JLab C3™ signature sound with amplified bass and vocals

BALANCED
Even sound with no additional enhancements

BASS BOOST
Amplified bass and sub-bass

CHARGING EARBUDS

The left and right earbud need to match the corresponding L and R letters on the charging case for proper charging and connection.

Placing the earbuds in the case will auto power off the earbuds and start charging.

Solid blue lights on the earbuds will indicate charging and will turn off after earbuds are fully charged.

Case will show blinking blue lights while charging.

Removing the earbuds from the case will turn on and auto connect to your device for next use.

CHARGING CASE

Connect the JBuds Air to computer or USB 5V output device.

LEDs pulse white when charging and turn solid white when fully charged.

FITTING

Try the optional Cush Fins and all ear tips for best fit and proper seal.

Hold the earbud vertical to the ear.

Twist in the ear canal to lock in.

TROUBLESHOOTING

CAN YOU HEAR MUSIC FROM THE RIGHT EARBUD BUT NOT THE LEFT?
CONNECT/RECONNECT THE LEFT AND RIGHT EARBUDS

If the right earbud is working but no sound is coming out of the left, follow these steps to pair the two earbuds together.

1.Turn Bluetooth off on your device.

Turn both earbuds off (by pressing and holding each earbud button until voice prompt says 'good bye' or you see no lights).

2.When earbuds are off, press and hold 15+ seconds on the RIGHT earbud button.

While holding, earbud will flash blue and white.

Release when earbud flashes white.

3.Repeat process with LEFT earbud: Press and hold 15+ seconds on earbud button.

Release when earbud is solid white. Once earbuds connect, the right earbud will flash blue and white indicating it is ready to connect to Bluetooth.

Left earbud will be solid white.

4.Turn your device Bluetooth back on.

Select "JLab JBuds Air" to connect.

Note: To avoid having to reconnect the earbuds again, make sure you return the earbuds to the correct spot in the case. See Charging Earbuds.

ECHOES ON CALLS

If you experience microphone echo/call quality with the JBuds Air, make sure the Cush Fin is not blocking the microphone port.

Microphone covered

Microphone open

QUICK TIPS

• The Bluetooth connection is established from the right earbud. For most stable connection, keep the device near right hand side or in right pocket.

• When receiving/taking calls, only the right earbud will accept and play from your mobile device. The left earbud will mute during calls and continue playback after call ends.

• If you prefer to wear only one earbud, you must wear the right earbud.

Fully dry off the earbuds before putting in the charging case to avoid any damage to the case.

The earbuds are sweat/water resistant but the case is not.

WARM-UP YOUR HEADPHONES

Optional: Burn-in is the process for exercising new audio equipment. We recommend 40 hours of burn-in time for most headphones to reach optimal performance. The main purpose of the process is to loosen the diaphragm of a newly crafted headphone and to stress the headphone driver. Normal, everyday use can also burn-in the headphones though JLab's proprietary burn-in provides an ideal mix of sounds and frequency sweeps to achieve this.

Burn-in your audio equipment with the JLab Audio app available on the App Store and Google Play.
Or access the burn-in method at: jlabaudio.com/burnin

CAUTIONS

• Avoid extreme heat, cold, and humidity.

• Avoid dropping or crushing the earbuds.

• Wax may build up in the earbud tips, lowering the sound quality. Carefully remove the wax with a cotton swab or other small tool to improve the sound quality.

• If you experience discomfort or pain, try lowering the volume or discontinuing use temporarily.

• If you experience regular discomfort while using this product, discontinue use and consult your physician.

• We recommend you treat your earbuds as you would a nice pair of sunglasses and keep them in safe location when not in use.
