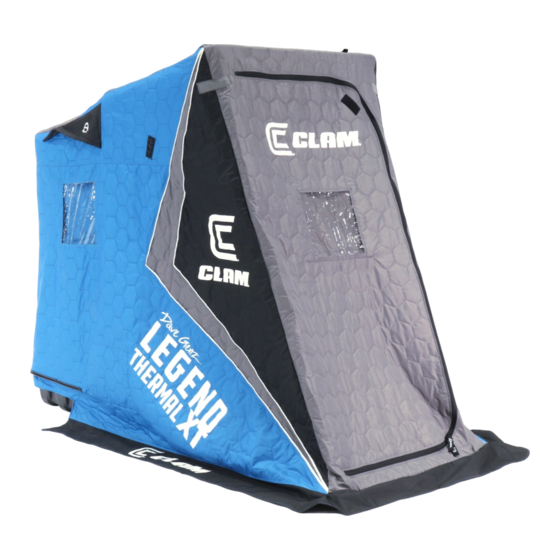

SPECIFICATIONS
Part Number: 116849
Set Up Size: L 91 x W 44 x H 73
Packed Size: L 44 x W 36 x H 24 folded seats
W e i g h t: 62 lbs.
Fishable Area: 16 sq.ft
Instructions: 106974
Please contact customer service directly at the E-mail or phone number listed below for any
quality issues. ONCE USED THIS PRODUCT CANNOT BE RETURNED TO STORE.
** Warranty cannot be honored without an original, dated receipt **
IMPORTANT-PLEASE READ:
This product is warranted to the original retail purchaser (from an authorized dealer) and is non-transferable.
Clam Outdoors has a one year manufacturer's defect warranty from the date of original purchase. Warranty
does not cover cracked or worn bases (if runner kits have not been installed as recommended), cracked
windows, tent tears or cuts, or broken or bent hoops due to high wind weather conditions or unattended use.
Defective parts will be replaced or repaired (at the manufacturer's option) if found to be defective within one
year from the date of original purchase. Warranty will be void if product has been subject to neglect, misuse,
improper installation, misapplication, alteration, accident including but not limited to improper maintenance, or
use of unauthorized parts or attachments. Please read the entire owner's manual to ensure proper installation,
use, storage and care of your Clam Shelter.
To submit a warranty claim request, please use one of the following methods:
https://clamoutdoors.com/pages/warranty-form
▪ Email:
customerservice@clamcorp.com
In your request, please include your full name, address, phone number, a copy of your receipt, a brief description
of the problem, and pictures to clearly show the area(s) of concern. Our Warranty Department will review your
request, and a Clam representative will contact you regarding your claim status. All returns must be shipped to
us postage pre-prepaid.
It is expressly understood that Clam Outdoors Inc., liability for its products, whether due to breach of
warranty, negligence, strict liability, or otherwise, is limited to the repair of the product as stated above. Clam is
not liable for any injury, loss, damage, or expense, whether direct or consequential, including but not limited to loss
of use, income, profit, or damage to material arising in connection with the sale, installation, use of, inability to
use, or the repair or replacement of Clam products. Clam reserves the right to make alterations or
modifications in its products at any time, which in its opinion, may improve the performance and efficiency of
the product. Clam shall not be obligated to make such alterations or modifications to products already in service
Clam contact information
Customer Service Hrs: 9am to 4pm, Monday – Friday Central Standard Time
Clam Outdoors
Attn: Customer Service
12135 Brockton Lane
Rogers, MN 55369
Phone: 763-231-4120
CLAMOUTDOORS.COM
WARRANTY INFORMATION
** REGISTER YOUR PURCHASE ONLINE AT CLAMOUTDOORS.COM **
LIMITATION OF LIABILITY
MODEL 16849

Advertisement

loading
Need help?

Need help?

Do you have a question about the Dave Genz LEGEND THERMAL XT and is the answer not in the manual?

Questions and answers

Summary of Contents for Clam Dave Genz LEGEND THERMAL XT

  • Page 1 It is expressly understood that Clam Outdoors Inc., liability for its products, whether due to breach of warranty, negligence, strict liability, or otherwise, is limited to the repair of the product as stated above. Clam is not liable for any injury, loss, damage, or expense, whether direct or consequential, including but not limited to loss of use, income, profit, or damage to material arising in connection with the sale, installation, use of, inability to use, or the repair or replacement of Clam products.
  • Page 2: Parts List

    PARTS LIST QTY. PART NO. DESCRIPTION 104112 BASE, LEGEND IS15 106868 HOOP, LEGEND XT 106867 HOOP, EXTENSION, LEGEND XT 106956 TENT LEGEND THERMAL XT 102759 ASSY, DELUXE SEAT 104115 TUBE, LEGEND RAIL SPPRT IS15 101074 ASSY, ADJUSTABLE SPRDR 102814 EXTRUSION, V-CHANNEL 106167 SEAT COVER, TRAP SHELTERS, BOTTOM 106166...
  • Page 3 HARDWARE FASTENERS REFERENCE...
  • Page 4 *IT IS BEST TO USE THE AID OF ANOTHER PERSON DURING ASSEMBLY. Visit Clam’s website (www.clamoutdoors.com) and or our YouTube channel (Clam Outdoors) for shelter build how to videos INSTALL ANY RUNNER KIT OPTIONS BEFORE ASSEMBLING SHELTER. REFER TO RUNNER KIT INSTRUCTIONS STEP-1 1.INSTALL BOTH BRACKETS (103833) TO BASE AS SHOWN.
  • Page 5 STEP-2 1.INSTALL BOTH BRACKETS (104116) TO BASE WITH FASTENERS AS SHOWN. AND SECURELY TIGHTEN. 2 INSTALL SEAT RAIL SUPPORT TO BRACKETS WITH FASTENERS AS SHOWN. TO BOTH SIDES AND SECURELY TIGHTEN. INSTALL CAP AND ALIGN SLOT WITH BOLT HOLE IN TUBE.
  • Page 6 STEP-3 1 INSTALL CAPS INTO TUBE AS SHOWN. FLAT SIDE OF CAP MUST ALIGN WITH SLOT IN TUBE. ALIGN CAP AND POLE HOLES...
  • Page 7 STEP-4 1. LAY OUT POLES TOGETHER ON FLOOR AND ASSEMBLE TO SWIVEL PLATES WITH FASTENERS AS SHOWN NOTE: TUBE SLOT ORIENTATION TO SWIVEL BRACKET. 2. SCREW IN THE PROPER SCREWS INTO PLATE DO NOT OVERTIGHTEN. 3. WHILE HOLDING THE SCREW IN PLACE START TO THREAD THE NYLOCK NUT ONTO THE SCREW AND TIGHTEN BY HAND UNTIL RESISTANCE IS FELT.
  • Page 8 STEP-5 1. FASTEN NUT TO SCREW WHILE HOLDING SCREW IN PLACE SO THAT IT DOES NOT ROTATE NEED TO HAVE A SPACE BETWEEN BRACKET AND NUTS. POLES AND PLATES SHOULD MOVE EASILY, DO NOT OVERTIGHTEN...
  • Page 9 STEP-6 DO NOT CUT ANY OF YOUR POLES 1. INSTALL TWO COLLARS TO EACH HOOP POLE AS SHOWN ALIGN COLLAR WITH THE HOLES IN HOOP AS SHOWN 2. SLIDE HINGE CLIP INTO PLACE AND SNAP INTO THE TWO HOLES LOCATED IN HOOP POLE. CLIPS TO BE USED ONE HOOP ASSEMBLY ONLY.
  • Page 10 STEP-7 1. SLIDE HOOP POLES OVER 2. ATTACH THE EXTENSION POLES TO TUBE EXTENSIONS AND LOCK THE HINGE CLIP ASSEMBLY INTO PLACE WITH COLLARS. (106804)WITH FASTENERS AS SHOWN HINGED POLE MUST ROTATE FREELY ONCE TIGHTENED. COMPLETED HOOP POLE ASSEMBLY AT THIS POINT SHOULD MOVE FREELY AND LOOK LIKE THE FOLLOWING PICTURE.
  • Page 11 STEP-8 1. ROTATE THE SWIVEL PLATE SO THAT THE SLOTTED HOLES WILL ALIGN WITH HOLE IN SEAT ASSEMBLY IN A POSITION THAT WILL BE ACCESSIBLE AS SHOWN. 2. LOOSELY ASSEMBLE THE SEAT ASSEMBLY TO THE SWIVEL USING 4 SCREWS (101614) AND 4 SPACERS (101613) AS SHOWN 3..
  • Page 12 STEP-9 USE LATCH TO SECURE SEAT ASSEMBLY STEP-10 1. DRAPE THE TENT OVER THE HOOP POLES. ATTACH THE TENT TO THE POLES ON THE INSIDE WITH THE VELCRO STRAPS. 2. SLIDE THE REMAINING HOOP POLE THROUGH THE SLEEVE IN THE FRONT OF THE TENT. 3.
  • Page 13 STEP-11 Visit Clam’s website (www.clamoutdoors.com) and or our YouTube channel (ClamOutdoors) for shelter build how to videos HEAT THE MOLDING (102814) WITH A BLOW DRYER, HEAT GUN OR SOAK IN HOT WATER MAKING IT PLIABLE DETAIL-B 8” Approx BOTH SIDES.
  • Page 14: Tips For Use

    (NOTE: Pulling behind an ATV or snowmobile may result in premature wear of the base). ▪ In windy conditions it is advised to secure your shelter to the ice using Clam’s Ice Anchor Kit (PN 108064) and Ice Anchor Installation Tool (PN 108348).
  • Page 15: Safety Instructions

    SAFETY INSTRUCTIONS Please fully understand and follow all safety instructions as outlined. Failure to do so could result in severe injury or death. ▪ DO NOT USE OPEN FLAME HEATERS IN YOUR ICE SHELTER. INJURY OR DEATH MAY RESULT FROM FIRE IF TENT FABRIC IS EXPOSED TO OPEN FLAME. THE TENT IS NOT FIREPROOF, BUT THE FABRIC IS TREATED WITH A FIRE RETARDANT THAT MEETS CPAI-84 SPECIFICATIONS.
  • Page 16: Frequently Ask Questions

    FREQUENTLY ASK QUESTIONS Fish Trap FAQ’s Q: Should I install a runner kit/hyfax to the base of my shelter? A: The warranty on our shelters does not cover cracked or worn bases if a runner kit has not been installed. Additionally, bases will wear much quicker without a runner kit installed. Q: The zipper on my shelter freezes up and/or sticks.
  • Page 17 Q: There are cracks on the inside finish of the fabric of my shelter. Is this normal? Can anything be done to fix this? A: It is normal for some of the dark colored coating to come off the inside of the tent, particularity on a non- thermal tent.
