Clam Adventure 8984 User Manual

Clam Adventure 8984 User Manual

Portable ice shelter

Advertisement

Quick Links

Model No.
- 8984 -
p/n 108984
S p e c i f i c a t i o n s
H e i g h t - 7 4 " ( 2 3 " p a c k e d )
Width - 7 3 "
Depth - 1 5 5 " ( 4 8 " p a c k e d )
W e i g h t – 1 4 5 l b s .
Instructions – 1 0 3 7 5 7
NOTICE!!! Once used, this shelter cannot be returned to the store.
** Warranty cannot be honored without an original, dated receipt **
IMPORTANT - PLEASE READ:
This product is warranted to the original retail purchaser (from an authorized dealer) and is non-transferable. Clam
Corporation has a one year manufacturer's defect warranty from the date of original purchase. Warranty does not cover
cracked or worn bases (if runner kits have not been installed as recommended), cracked windows, tent tears or cuts, or
broken or bent hoops due to high wind weather conditions or unattended use. Defective parts will be replaced or repaired
(at the manufacturer's option) if found to be defective within one (1) year from the date of original purchase. Warranty will
be void if product has been subject to neglect, misuse, improper installation, misapplication, alteration, accident including
but not limited to improper maintenance, or use of unauthorized parts or attachments. Please read the entire owner's
manual to ensure proper installation, use, storage and care of your Clam Shelter.
To submit a warranty claim request, please use one of the following methods:
Email:
CustomerService@ClamCorp.com
Fax:
763-231-4121
Customer Service – Warranty Department
Write:
600 Clydesdale Trail
Medina, MN 55340
In your request, please include your full name, address, phone number, a copy of your receipt, a brief description of the
problem, and pictures to clearly show the area(s) of concern. Our Warranty Department will review your request, and a
Clam representative will contact you regarding your claim status. All returns must be shipped to us postage pre-prepaid. A
customer service representative can be reached at 763-231-4120.
It is expressly understood that Clam Corporation's liability for its products, whether due to breach of warranty,
negligence, strict liability, or otherwise, is limited to the repair of the product as stated above. Clam Corporation is not
liable for any injury, loss, damage, or expense, whether direct or consequential, including but not limited to loss of use,
income, profit, or damage to material arising in connection with the sale, installation, use of, inability to use, or the
repair or replacement of Clam Corporation products. Clam Corporation reserves the right to make alterations or
modifications in its products at any time, which in its opinion, may improve the performance and efficiency of the
product. Clam shall not be obligated to make such alterations or modifications to products already in service.
* * * * * * W a r r a n t y I n f o r m a t i o n * * * * * *
- L i m i t a t i o n o f L i a b i l i t y -
(Preferred Method)

Advertisement

loading
Need help?

Need help?

Do you have a question about the Adventure 8984 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Clam Adventure 8984

  • Page 1 It is expressly understood that Clam Corporation’s liability for its products, whether due to breach of warranty, negligence, strict liability, or otherwise, is limited to the repair of the product as stated above. Clam Corporation is not liable for any injury, loss, damage, or expense, whether direct or consequential, including but not limited to loss of use, income, profit, or damage to material arising in connection with the sale, installation, use of, inability to use, or the repair or replacement of Clam Corporation products.
  • Page 2 - P a r t s L i s t - ITEM NO. PART NUMBER DESCRIPTION QTY. 103394 BASE, ADVENTURE 103595 HOOP POLES 102759 DELUXE SEAT 101399 SEAT SWIVEL 103592 STRAP, HAMMOCK 103395 TENT, ADVENTURE 101249 ROPE, 3/8 DIA X 11 FT TOW 103605 HOOP POLE COLLAR 103607...
  • Page 3 PARTS...
  • Page 4 STEP 1 Install pole mount brackets, PN 101900 and 101901. STEP 2 Install leg assemblies PN 103584.
  • Page 5 STEP 3 Mount the hammocks, PN 103593 to the leg assemblies using the hammock straps, PN 103592. STEP 4 Mount the console, PN 103653, to the small seat assembly, PN 103653 using the wood screws, PN 101536. Align the console to the seat so it is straight and the cup holders can be installed.
  • Page 6 STEP 4 cont. Console mounted to small seat. STEP 5 Install the deluxe seat, PN 102759 and the small seat assembly, PN 103643 to the swivels.
  • Page 7 STEP 6 Install seat slip covers Install back slip cover Install bottom slip Seat covers installed PN 102775. cover PN 103638. STEP 7 Mount the seat assemblies into the leg brackets as shown.
  • Page 8 STEP 8 Install the eight (8) straight hoop support poles, PN 103599 and the four (4) bent hoop support poles, PN 103597. The holes near the ends of the poles faces inward. STEP 8 cont. Tighten hardware so that the ends of the bolts are even with the ends of the thin lock nuts.
  • Page 9 STEP 9 Install the hoop pole collars, PN 103605 to the hoop poles as shown. The lever will be in a downward position. STEP 10 Install the hoop poles, PN 103595 to the hoop support poles. Install the tow rope, PN 101249 and knot the ends.
  • Page 10 STEP 11 Slide collar PN 103607 over the hoop poles. Secure the collar to the spreader pole using screw PN 101034. To store the spreader poles, simply loosen the tightener and collapse the pole. Swing the pole up and attach to the hoop as shown.

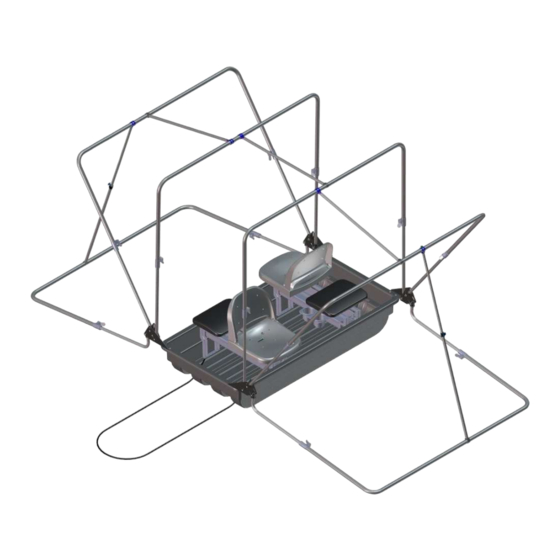

  • Page 11 STEP 12 Extend the hoop poles until the spring buttons engage the holes near the ends of each hoop support pole. The poles will be fully extended. Support the hoop poles as pictured with the spreader poles to create a skeleton of the shelter.
  • Page 12 STEP 13 Front hoop Front hoop sleeves Drape the tent over the supported hoops, then go inside and attach the Velcro straps. Remove the front spreader poles and front hoop poles. Feed the length of the pole through the front hoop sleeves sewn on the tent.
  • Page 13 STEP 14 STEP 12 To collapse the shelter: Detach all spreader poles and store them in their proper position. Detach sidewall Velcro on the inner-most canopy hoop poles and disconnect the attachment straps. Press the buttons on the hoop pole collars and slide each canopy hoop pole in as far as it will go. Fold down the poles, starting at the inner-most pole on either side, then the inner-most pole on the other side, etc.
  • Page 14 - T i p s f o r U s e - Folding and transporting your Clam Ice Fishing shelter is easy: ▪ Unsnap the spreader poles and lay them in the bottom of the base. ▪ Push the RPS push buttons and retract each hoop, starting with the two floor hoops and working towards the middle.
  • Page 15: Frequently Asked Questions

    Q: What will help keep mice or rodents from eating the tent of my Clam or Fish Trap? A: We recommend that you keep your tent in a sealed plastic tote with laundry dryer sheets or moth balls. If the shelter is stored in a barn or shed take the tent off the house and store it in a rodent-free environment such as in your home.
  • Page 16 We are only set up to ship warranty or replacement parts required to MAINTAIN a Clam shelter (tents, poles, parts, patch kits, etc.). No accessories – see a local dealer or an online dealer of Clam products. If the replacement parts are not warranty you will be charged for the product plus actual shipping charges.
