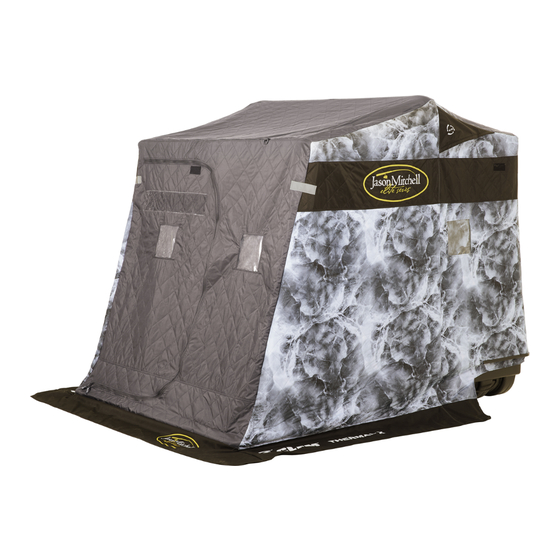

SPECIFICATIONS
Part Number: 112214
Set Up Size: (L 113" x W 74" x H 82")
Packed Size: (L 74" x W 45" x H 27")
W e i g h t: 160 lbs.
Instructions Document No: 105880
Please contact customer service directly at the E-mail or phone number listed below for any
quality issues. ONCE USED THIS PRODUCT CANNOT BE RETURNED TO STORE.
** Warranty cannot be honored without an original, dated receipt **
** REGISTER YOUR PURCHASE ONLINE AT CLAMOUTDOORS.COM **
IMPORTANT-PLEASE READ:
This product is warranted to the original retail purchaser (from an authorized dealer) and is non-transferable.
Clam Outdoors has a three year manufacturer's defect warranty from the date of original purchase. Warranty
does not cover cracked or worn bases (if runner kits have not been installed as recommended), cracked
windows, tent tears or cuts, or broken or bent hoops due to high wind weather conditions or unattended use.
Defective parts will be replaced or repaired (at the manufacturer's option) if found to be defective within three
year from the date of original purchase. Warranty will be void if product has been subject to neglect, misuse,
improper installation, misapplication, alteration, accident including but not limited to improper maintenance, or use
of unauthorized parts or attachments. Please read the entire owner's manual to ensure proper installation, use,
storage and care of your Clam Shelter.
To submit a warranty claim request, please use one of the following methods:

Customer Service Hrs: 9am to 4pm, Monday – Friday Central Standard Time

Clam Outdoors, Inc.
Attn: Customer Service – Warranty Department
12135 Brockton Lane
Rogers, MN 55369

Phone: 763-231-4120

Fax: 763-231-4121

Email:
customerservice@clamcorp.com

Website:
Clamoutdoors.com
In your request, please include your full name, address, phone number, a copy of your receipt, a brief description
of the problem, and pictures to clearly show the area(s) of concern. Our Warranty Department will review your
request, and a Clam representative will contact you regarding your claim status. All returns must be shipped to us
postage pre-prepaid.
It is expressly understood that Clam Outdoors Inc., liability for its products, whether due to breach of
warranty, negligence, strict liability, or otherwise, is limited to the repair of the product as stated above. Clam is not
liable for any injury, loss, damage, or expense, whether direct or consequential, including but not limited to loss of
use, income, profit, or damage to material arising in connection with the sale, installation, use of, inability to use,
or the repair or replacement of Clam products. Clam reserves the right to make alterations or modifications in
its products at any time, which in its opinion, may improve the performance and efficiency of the product. Clam
shall not be obligated to make such alterations or modifications to products already in service.
STEP 6
WARRANTY INFORMATION
LIMITATION OF LIABILITY
MODEL 12214

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Jason Mitchell X200 THERMAL 12214 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Clam Jason Mitchell X200 THERMAL 12214

  • Page 1 It is expressly understood that Clam Outdoors Inc., liability for its products, whether due to breach of warranty, negligence, strict liability, or otherwise, is limited to the repair of the product as stated above. Clam is not liable for any injury, loss, damage, or expense, whether direct or consequential, including but not limited to loss of use, income, profit, or damage to material arising in connection with the sale, installation, use of, inability to use, or the repair or replacement of Clam products.
  • Page 2: Parts List

    101249 ROPE, 3/8 DIA X 11 FT TOW 103638 SLIP COVER, BACK 102775 SLIP COVER, BOTTOM 108829 ASSY, BATTRY BRKT/HRDWR 102841 CONSOLE, CLAM CENTER 105507 TRAVEL COVER, JM X200 109556 4 ROD HOLDER 112046 MAGNETIC TOOL HOLDER 105837 INNERPAK, X200...
  • Page 3 STEP 6 HARDWARE FASTENERS REFERENCE...
  • Page 4: Required Tools

    STEP 6 REQUIRED TOOLS #2 AND #3 PHILLIPS HAND SCREW 3/8 AND 7/16 COMBINATION WRENCH OR SOCKETS #6 PHILLIPS SCREW BIT 3/8 DRILL BIT POWER DRILL...
  • Page 5 STEP 6 *USING A DROP OF OIL ON ALL NUTS WILL EASE THE ASSEMBLY PROCESS. *IT IS BEST TO USE THE AID OF ANOTHER PERSON DURING ASSEMBLY. STEP 1 INSTALL ANY RUNNER KIT OPTIONS BEFORE ASSEMBLING SHELTER. REFER TO RUNNER KIT INSTRUCTIONS 1.
  • Page 6 STEP 3 STEP 6 CHOOSE WHICH LOCATION YOU PREFER TO HAVE BATTERY LOCATED. LIGHT POLE WIRE WILL NEED TO BE ABLE TO REACH BATTERY. 1. INSTALL BATTERY BRACKET, ASSEMBLY (108829) AS SHOWN USING 3/8” DRILL BIT OR REFER TO INSTALLATION MANUAL THAT IS INCLUDED WITH KIT STEP 4 1.
  • Page 7 STEP 5 STEP 6 1. ASSEMBLE LIGHT STICK, 109560, TO HALF POLES, 104897, AS SHOWN. DO NOT CUT ANY OF YOUR POLES 104897 STEP 6 2. ASSEMBLE REMAINING POLES AS SHOWN 104892...
  • Page 8 STEP 6 STEP 7 1. INSTALL HOOP POLES OVER POLES AND SUPPORTING SPREADER POLES AS SHOWN 2. INSERT(101249) ROPE ENDS THRU HOLES IN FRONT OF BASE AND KNOT EACH END. LIGHT STICK (109560) WIRE TO BE POSITIONED TO SAME SIDE AS BATTERY HOLDER!! DO NOT INSTALL FRONT HOOP POLE AT THIS TIME...
  • Page 9 STEP 8 STEP 6 ROTATE THE SWIVEL 45 DEGREES TO AID IN THE INSTALLATON PROCESS AS SHOWN. 1. ASSEMBLY AS SHOWN AND SECURELY TIGHTEN. SAME BLOCK STYLES MUST BE ALIGNED TO EACH OTHER 105478 STEP 9 1. INSTALL THE ASSEMBLY FROM STEP 7 TO SEAT AS SHOWN AND SECURELY TIGHTEN...
  • Page 10 STEP 10 STEP 6 1. INSTALL SEAT COVERS OVER SEAT AS SHOWN USING VELCRO STRAPS TO FASTEN IN PLACE STEP 11 1. ASSEMBLE THIS END OF THE SEAT ASSEMBLY AS SHOWN AND SECURELY TIGHTEN.. 101466 HAMMOCK (THIS FABRIC ACCESSORY HOLDER IS PACKAGED IN WITH THE TENT) ASSEMBLED VIEW...
  • Page 11 STEP 12 STEP 6 1. SLIDE THE ASSEMBLY FROM PREVIOUS STEP THRU SEAT BLOCKS AS SHOWN. MUST LIFT HAMMOCK OVER BLOCKS AND SECURE TO TUBE AS SHOWN IN NEXT STEP. STEP 7 STEP 13 1. ASSEMBLE THIS END OF THE SEAT ASSEMBLY AS SHOWN AND SECURLEY TIGHTEN ASSEMBLED VIEW COMPLETED SEAT ASSEMBLY...
  • Page 12 STEP 14 STEP 6 1. SLIDE FRONT OF SEAT ASSEMBLY INTO OUTER FLANGE OF BASE AND DROP BACK SIDE INTO PLACE. THEN SNAP (102512) LATCH INTO POSITION TO SECURE SEAT ASSEMBLY AS SHOWN STEP 15 1. DRAPE THE TENT, PN 105497 OVER THE HOOP POLES. ATTACH THE TENT TO THE POLES ON THE INSIDE WITH THE VELCRO STRAPS.
  • Page 13 STEP 16 HEAT THE MOLDING (102814) WITH A BLOW DRYER, HEAT GUN OR SOAK IN HOT WATER MAKING IT PLIABLE. 105497 THE FRONT HOOP POLE SHOULD TOUCH THE FLOOR WHEN THE TENT IS SET CORRECTLY To “set” the tent, grasp the tent material at the rear of the shelter and pull it downward. Observe the front fishing area of the tent lifting accordingly as you pull.
  • Page 14 STEP 17 THERE IS AN APRON ATTACHED TO THE X200 TENT TO HELP REDUCE WIND INTRUSION. SIMPLY SNAP THE CLIPS AND USE THE VELCRO STRIPS TO HOLD EACH SIDE TOGETHER.
  • Page 15: Tips For Use

    (NOTE: Pulling behind an ATV or snowmobile may result in premature wear of the base). ▪ In windy conditions it is advised to secure your shelter to the ice using Clam’s Ice Anchor Kit (PN 108064) and Ice Anchor Installation Tool (PN 108348).
  • Page 16: Frequently Asked Questions

    Q: What will help keep mice or rodents from eating the tent of my Clam or Fish Trap? A: We recommend that you keep your tent in a sealed plastic tote with laundry dryer sheets or moth balls. If the shelter is stored in a barn or shed take the tent off the house and store it in a rodent-free environment such as in your home.
  • Page 17 We are only set up to ship warranty or replacement parts required to MAINTAIN a Clam shelter (tents, poles, parts, patch kits, etc.). No accessories – see a local dealer or an online dealer of Clam products. If the replacement parts are not under warranty you will be charged for the product plus actual shipping charges.
